This machine is suitable for oil, chemical liquid, bee honey, fruit concentrate, syrup…ect.
Capacity: 1800-7200BPH
Bottle volume from 50ml to 150ml

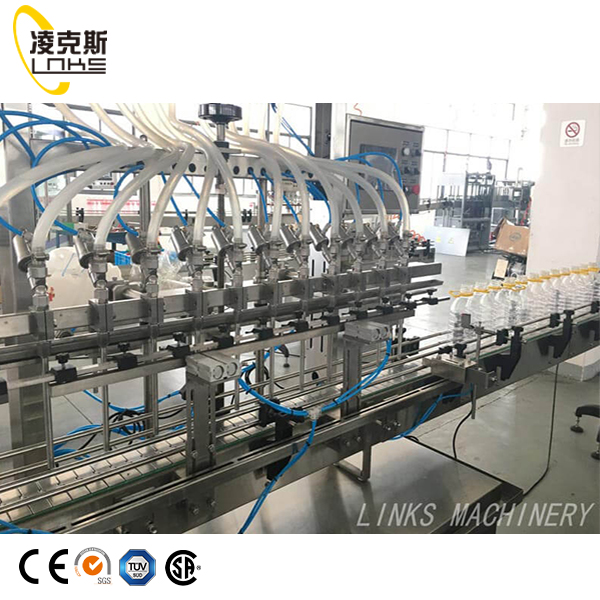

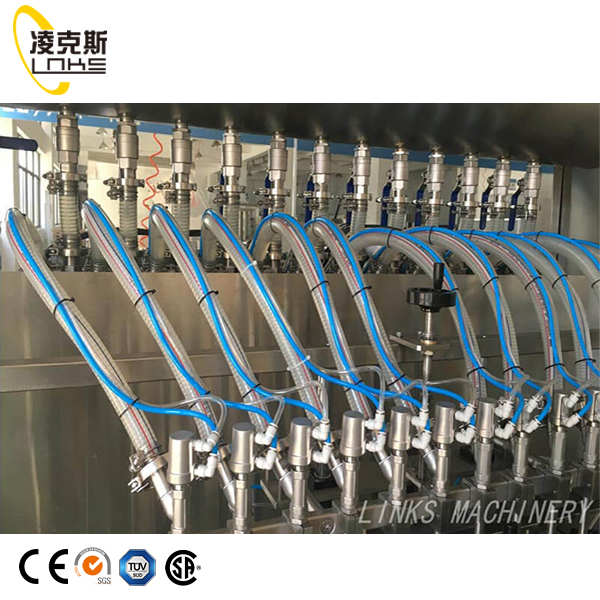

50-1500ml Automatic Oil&Chemical Liquid Filling Machine-Defoaming Type
This series filling machine is a high – tech filling equipment controlled by microcomputer PLC programmable, equip with photo electricity transduction and pneumatic action, piston travel push by cylinder, magnetic switch positioning travel trip, use festo cylinder with three-way valve filling. This machine structure simple 、 cleaning convenient 、 equip with a CIP automatic cleaning system, special suits for foodstuff and medicine, such as cooking oil 、 preparation 、 syrup 、 honey 、 jams 、 seasoning and other viscous material different bottle shape filling.
No. | Model | Speed (50-150ml) |
1 | LGP-S4 | 1800B/H |
2 | LGP-S6 | 2700B/H |
3 | LGP-S8 | 3600B/H |
4 | LGP-S10 | 4500B/H |
5 | LGP-S12 | 5400B/H |
6 | LGP-S16 | 7200B/H |
No. | Name of parts | Producing area |
1 | Programmed controller | MitsubishiJapan |
2 | Low-pressure breaker | Siemens Germany |
3 | AC electromagnetic contractor | Siemens Germany |
4 | AC electromagnetic contractor | Siemens Germany |
5 | Heat-break device | Siemens Germany |
6 | Multi-continuous electrical device | Siemens Germany |
7 | Middle-continuous electrical device | Omron Japan |
8 | Inducing on-off | AUTONICS USA |
