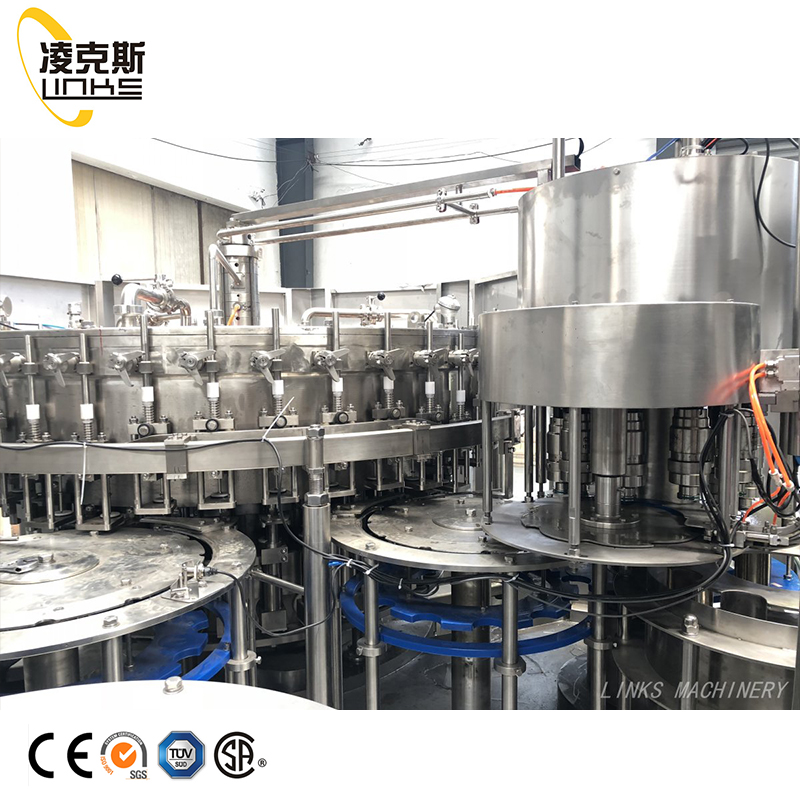

The machine is mainly used for filling carbonated drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.

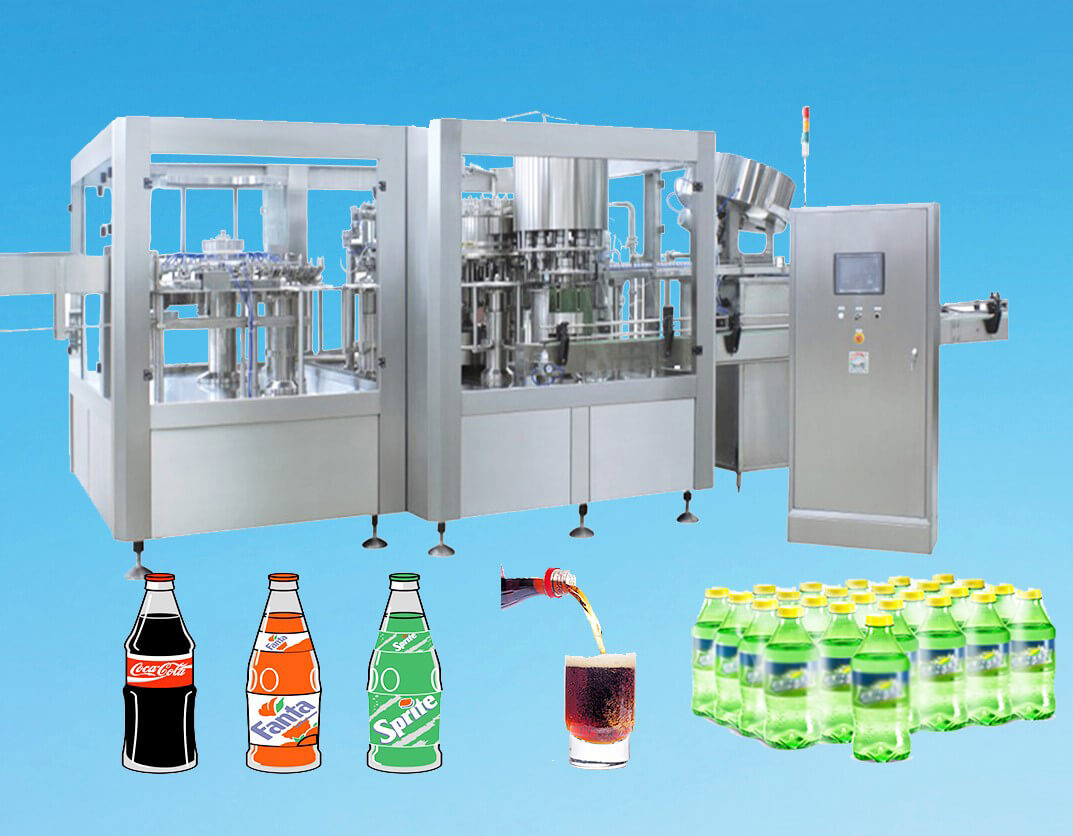

Automatic Carbonated Drinks, Sparkling Water Bottling Machine
1). Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

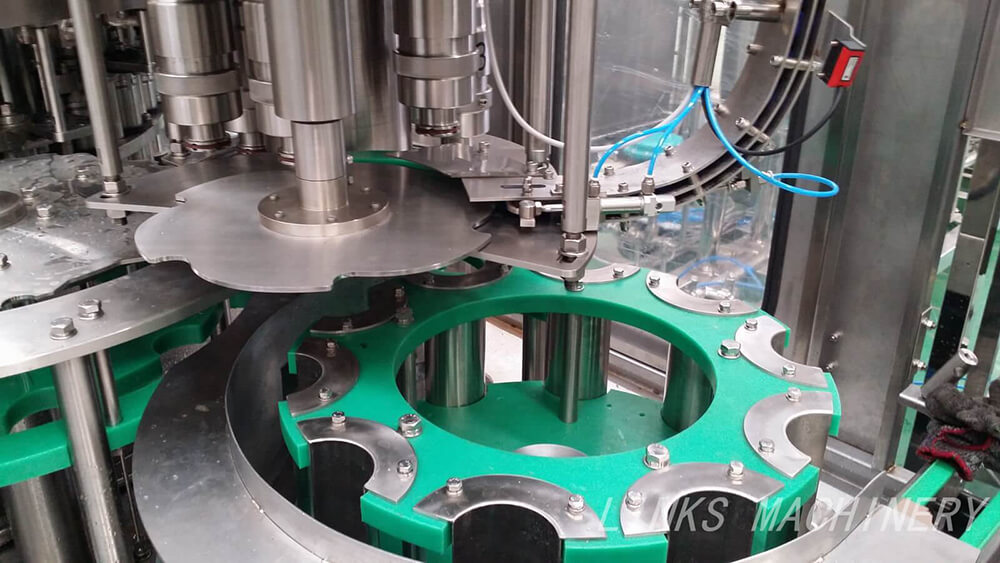

2). Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.

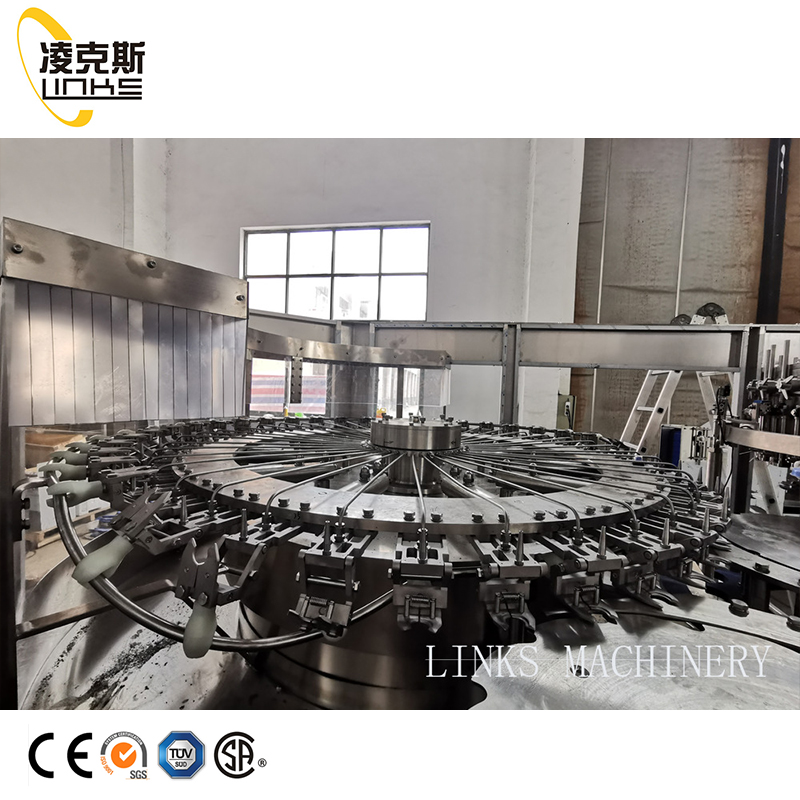

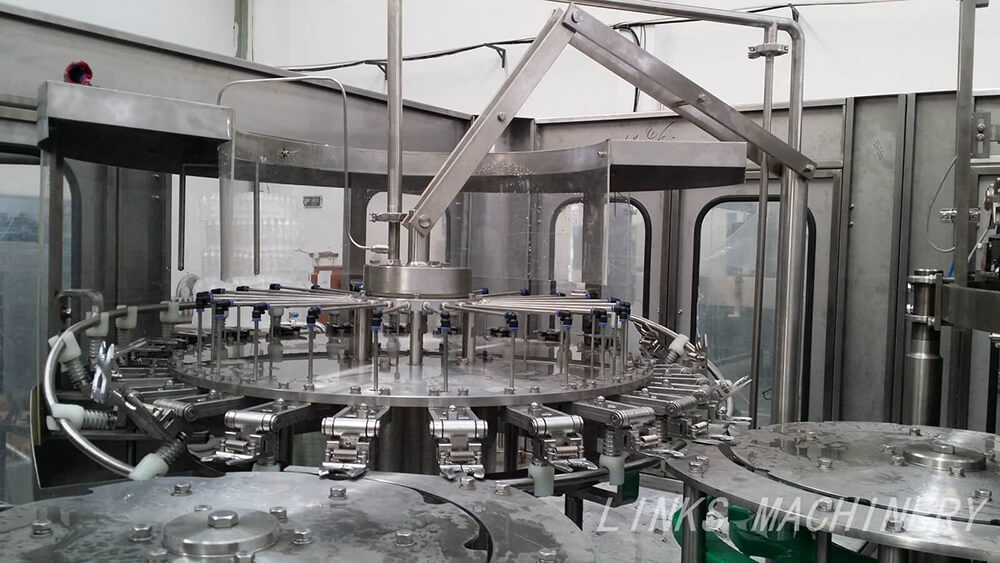

3). The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

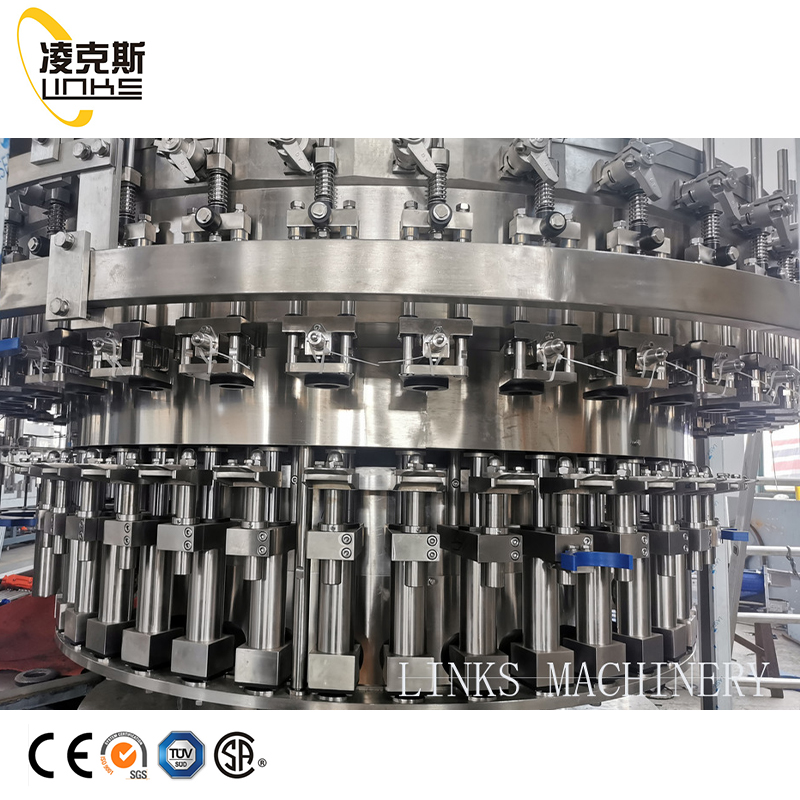

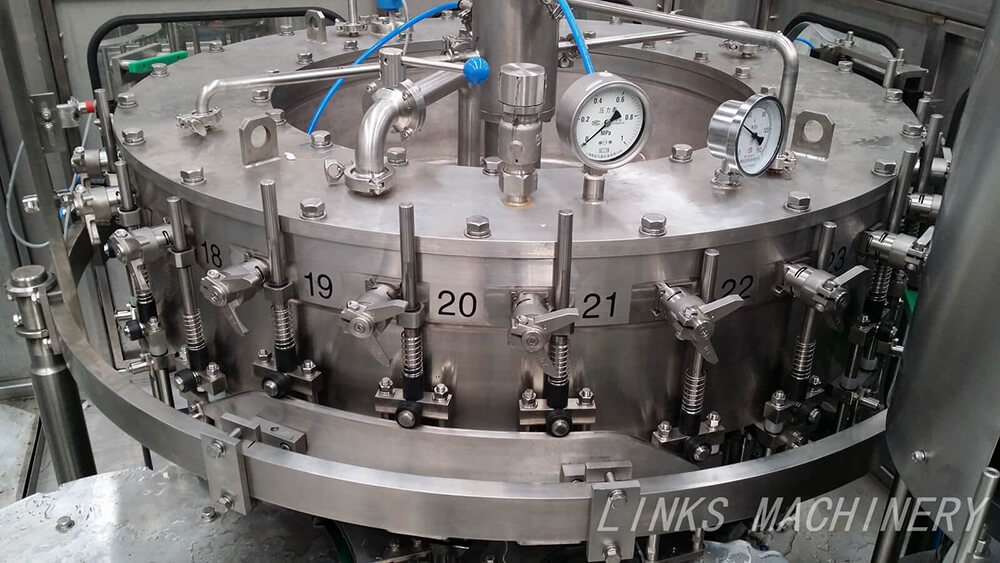

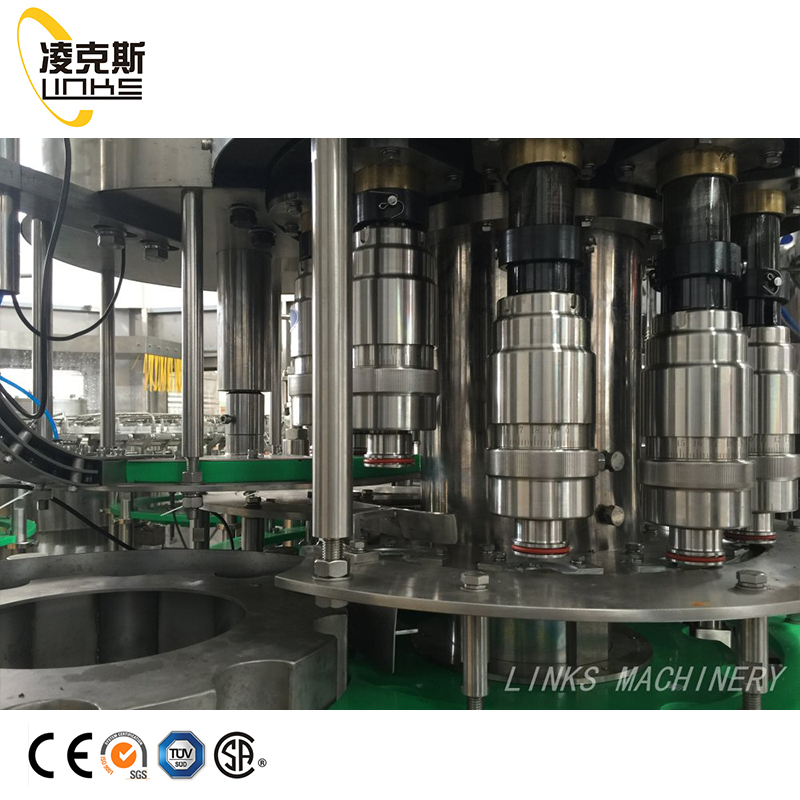

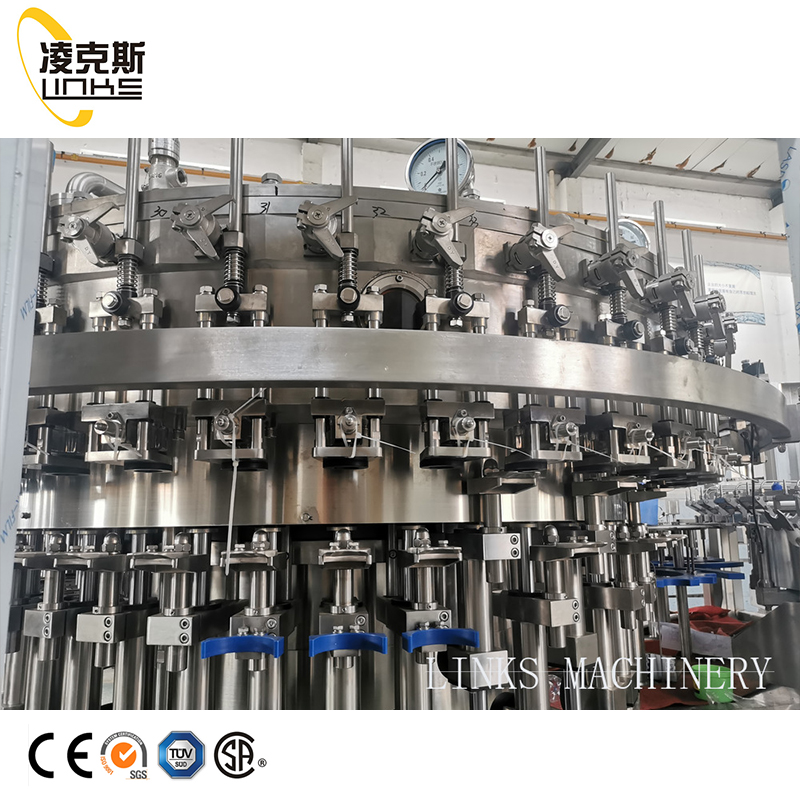

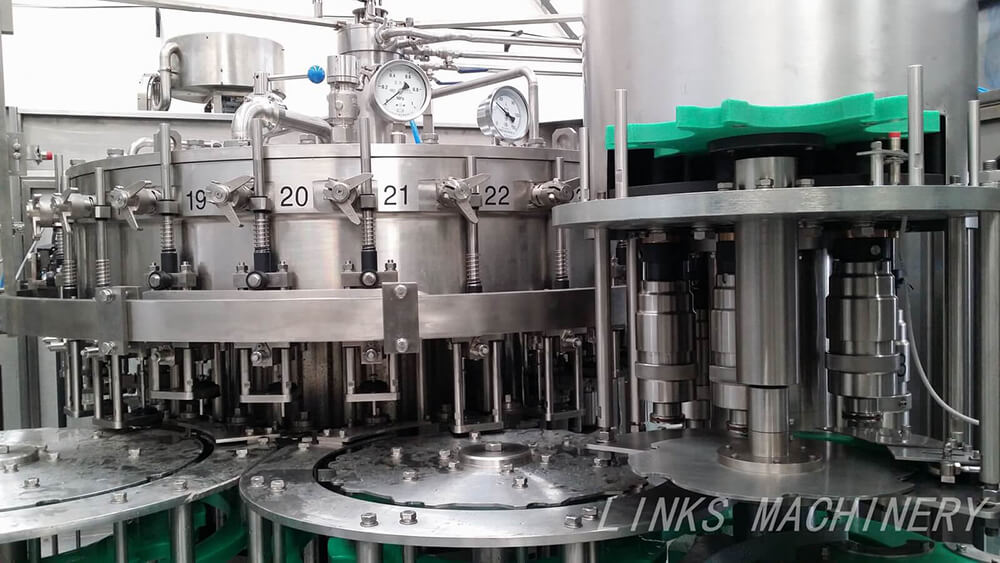

4). High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5). Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

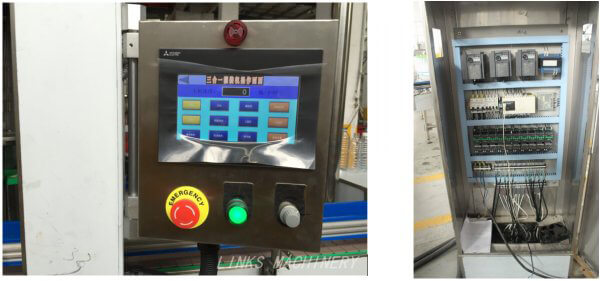

6). Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, Siemens.
Model No. | DXGF14-12-5 | DXGF16-16-5 | DXGF18-18-6 | DXGF24-24-6/8 | DXGF32-32-10 |
Rinsing head | 14 | 16 | 18 | 24 | 32 |
Filling head | 12 | 16 | 18 | 24 | 32 |
Capping head | 5 | 5 | 6 | 8 | 10 |
Power of main motor | 3kw | 3kw | 3kw | 4kw | 4.8kw |
Total weight | 2.8T | 3.2T | 3.6T | 4.5T | 4.8T |
Capacity | 2000-3000 | 3000-5000 | 6000-8000 | 8000-12000 | 12000-15000 |
Bottle Diameter | 50-80MM | 50-80MM | 50-80MM | 50-80MM | 50-80MM |
Bottle Height | 160-320MM | 160-320MM | 160-320MM | 160-320MM | 160-320MM |
Method of changing speed | Frequency conversion | Frequency conversion | Frequency conversion | Frequency conversion | Frequency conversion |
Power of unscramble motor | 0.37KW | 0.37KW | 0.37KW | 0.37KW | 0.37KW |
Supply pressure of rinsing water | =0.06Mpa=0.2Mpa | =0.06Mpa=0.2Mpa | =0.06Mpa=0.2Mpa | =0.06Mpa=0.2Mpa | =0.06Mpa=0.2Mpa |
No. | Name of parts | Producing area |
1 | Programmed controller | MitsubishiJapan |
2 | Low-pressure breaker | Siemens Germany |
3 | AC electromagnetic contractor | Siemens Germany |
4 | AC electromagnetic contractor | Siemens Germany |
5 | Heat-break device | Siemens Germany |
6 | Multi-continuous electrical device | Siemens Germany |
7 | Middle-continuous electrical device | Omron Japan |
8 | Inducing on-off | AUTONICS USA |
