High Speed Automatic Bottle Film Wrapping Packing Machine

High Speed Automatic Bottle Film Wrapping Packing Machine

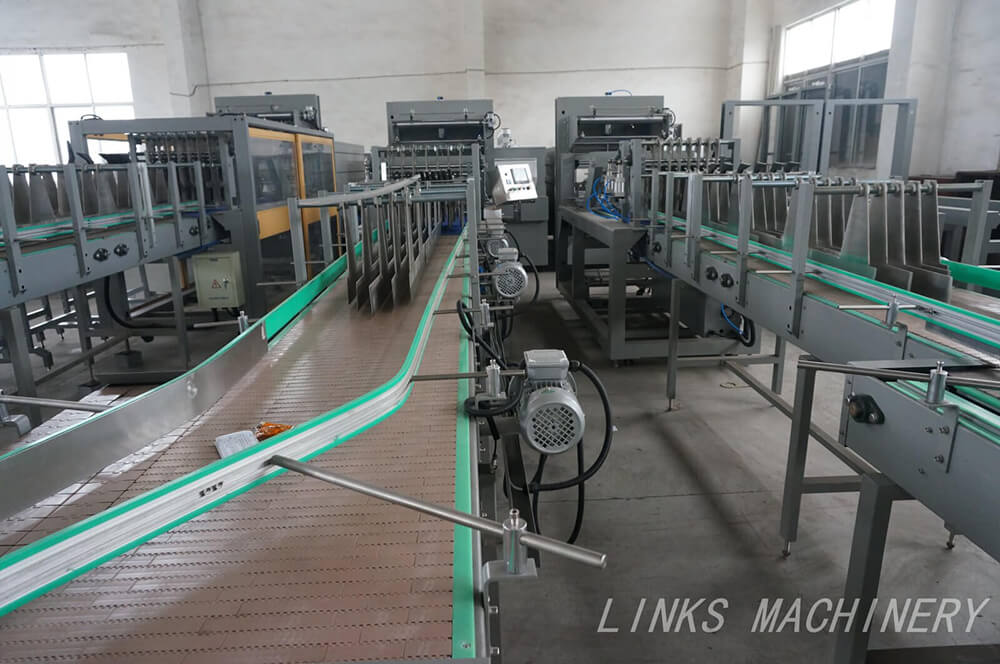

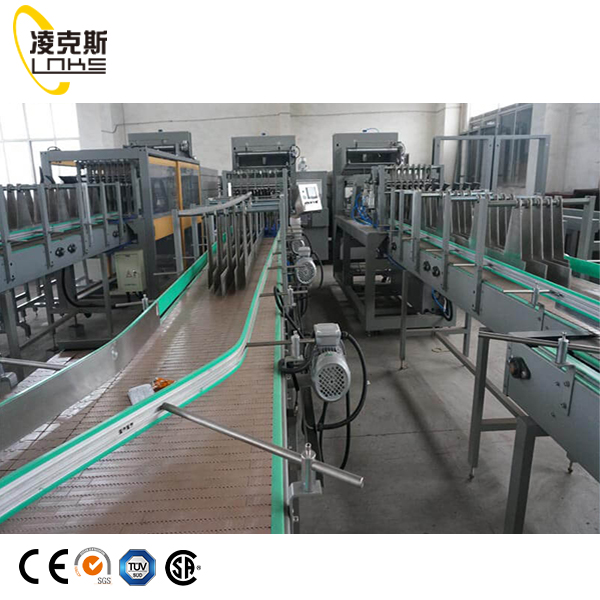

High Speed Automatic Bottle Shrink Wrapping Machine is specially designed for high speed packing requirement of bottled drinking water (pure water, beverage, juice, milk etc). When conveying the bottles, it can arrange and film wrap the bottles automatically, which save the time and improve the working efficiency.

Quantity:

Share this:

Inquire

Model: MB-20
Brand: LINKS MACHINERY
Code: 8422400000

Product Description

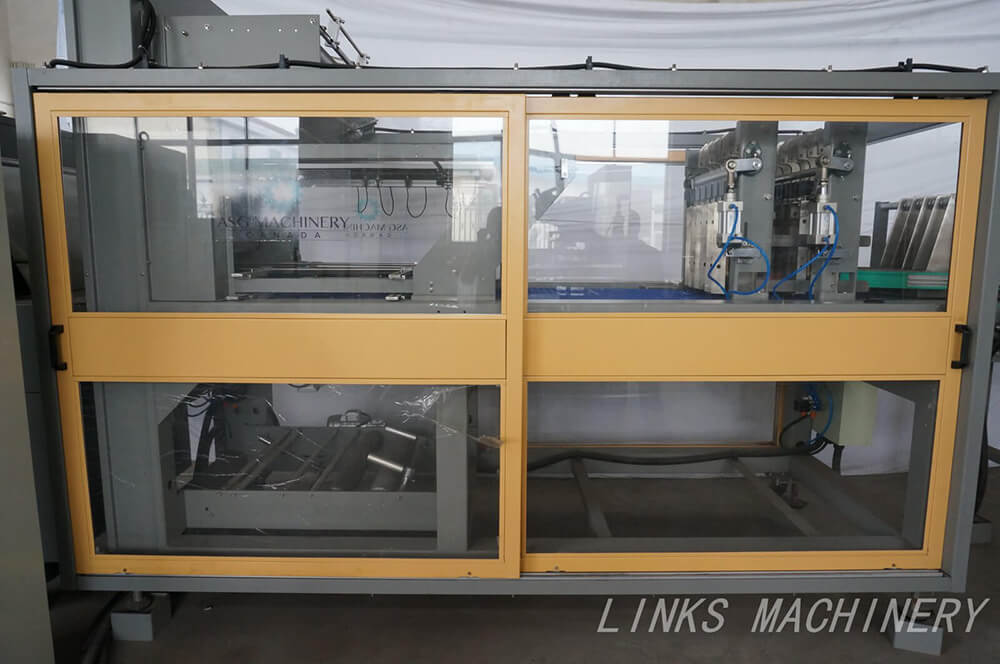

Automatic Bottle Film Wrapping Packing Machine

The Features of High Speed Automatic Bottle Shrink Wrapping Machine:

1.Up and down magnetic switch prevent sealing mistakes, and protect the operators.

2.The input position is adjustable, based on the size of products packaged.

3.Schneider PLC, Schneider AC contractor, and intelligent temperature controller performs stable.

4.Large power conveyer motor, with stepless speed regulating, ensures smooth feeding.

5.Up and down large power fan system ensures the excellent effect of shrinking in one time.

6.Super cooling system cools the packing and makes the figuration perfectly.

7.The size of tunnel can be customized as your request.

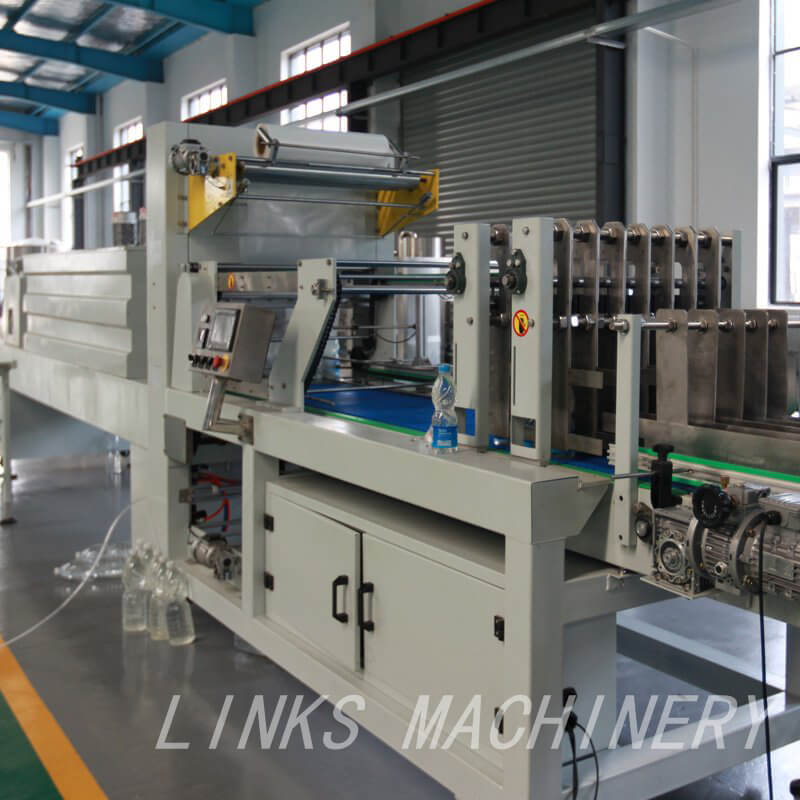

High Speed Automatic Bottle Shrink Wrapping Machine

It is PLC control, automatic work processing.

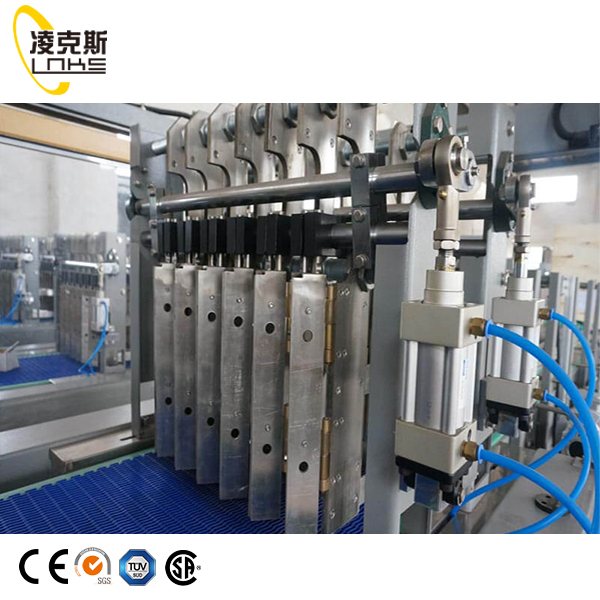

Constant temperature cutting blaes, which surface sprayed by Teflon, with the advantage of stable sealing.Touch screen is used to ensure easy operation.

Suit for different bottle size and packaging type without tray packing.

This type of shrink wrappig machine is your best choice for middle capacity, which is easy operation and maintance.

MB--20	Technical Parameters
Dimension for The Whole Unit	L13200mm x W1100mm x H2100mm
Main machine	L3200mm x W1100mm x H2100mm
Tunnel oven size	L4000xW1000XH1840mm
Conveyor	L4800xW1080xH920(+100mm)
Thermal shrinkage passage dimension	L2400mm xW680mmx H450mm
Max. Package Dimension	L600mm x W400mm x H350mm
Packaging Speed	15-20Pcs/min
Transfer Belt Dimension	620mm
Sealing and Cut Time/Temperature	0.5-1s 180°C-260°C
Operating Power Supply/Power	(TN-S) 380V 30KW
Operating Air Pressure	0.6-0.8Mpa
Weight	2500kg

MB--20 part name	Technology	Brand
Isothermal sealing cutter	TEFLON coat	USA DUPONT
PLC controller(core part)	Japan	OMRON
Transducer	France	SCHNEIDE
All cylinder	Original guide cylinder	CHANTO
Motor protector	Germany	SIEMENS
Regulator device	Taiwan	MINDMAN
Approaches switch	Korea	AUT0NIC
Contactor	Germany	SIEMENS
Meshy belt	USA	DUPONT TEFLON FIBRE

1) Can your factory provide the whole plant from A to Z?

A: Yes, we can provide the complete plant, from bottling making plant, water purification plant, to filling packing plant.

2) How can I know the machinery quality before I order?

A: Frist, we will invite you visiting our factory to check the machines quality, and show the machines running for you in our factory.

3)What certificates you can provide?

A: Our factory provide the CE, SGS, ISO, and accroding to some countries, we also can provide the Pvoc, Coc, Soncap...ect

4)Can your factory make the bottle drawing, workshop layout, and labels for us?

A: We can help customers design their own bottle shape, workshop layout and label drawings, these jobs are free charge.

(Workshop need customer to provide the size of factory)

5)Installation and Training Time

A: We have professional engineer for oversea installaion and training, they can speak English, and have much experience oversea work.

Customer needs to provide the engineer visa, air tickets, sleep room and meals. Each day salary is 80usd, around 20-40days.

6) Warranty time:

We provide the 18 months as our machinery parts warranty time, and electric parts warranty time is 12 month.
