Automatic Fruit Juice Filling Machine

Hot Filling Monobloc composes of liquid feeding pipes, liquid distributor, 2 filling system(juice and pulp), CIP dummy cup, re-circulation system with precise filling temperature control and level control, all liquid contacting parts are made of 316L or foodstuff rubber and plastic.
Brand: LINKS Factory: Links Machinery
Speed 2000BPH-24000B/H

Quantity:

Share this:

Inquire

Model: RXGF Series
Brand: LINKS MACHINERY
Code: 8422301090

Product Description

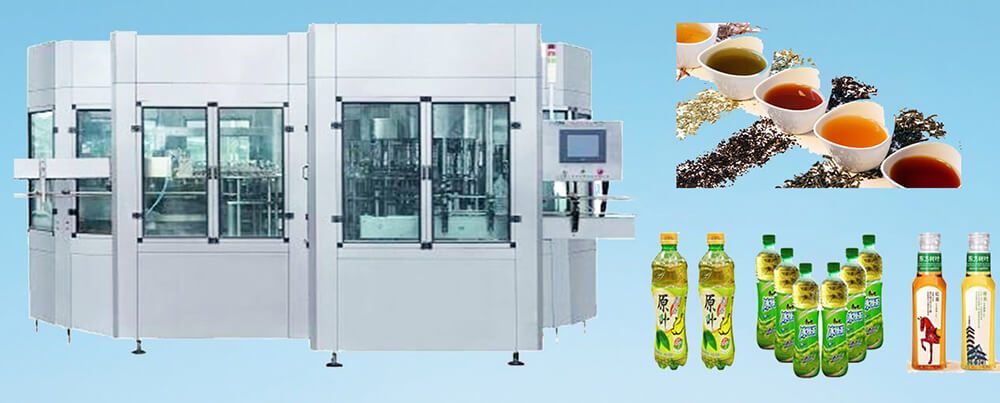

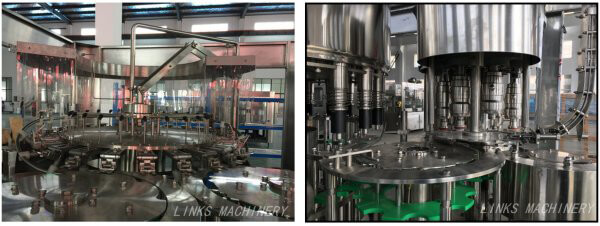

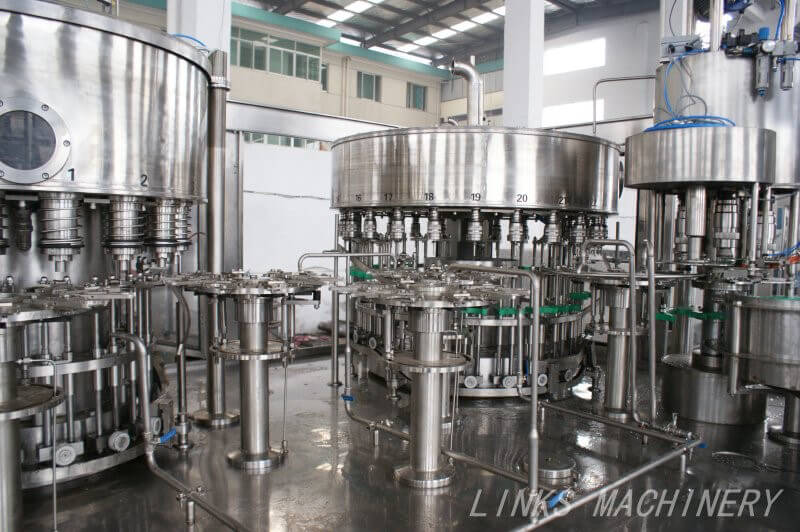

RXGGF series 4-in-1 set of machine is mainly used in the beverage filling process. The machine combines washing, filling, filling capping with complete automation, suitable for filling fruit juice beverage. With temperature controller, it also can conduct thermal filling. It is used for all kinds of bottles. The bottle neck hanging technology makes the process of changing bottles easily by only adapting the height of conveyor chain. The filling process adopts hot filling technology with water-supplying system under constant pressure, which makes filling process faster and more stable. Compared with other equipment of same kind, this machine with a better quality and thus enjoys a high ratio of function against price. The hot filling type machine works with balanced tank and return-flow system..

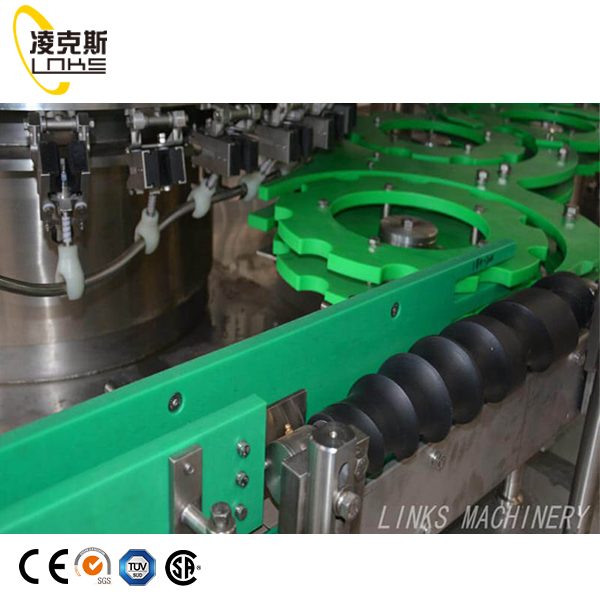

1). Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2). Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.
3). The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

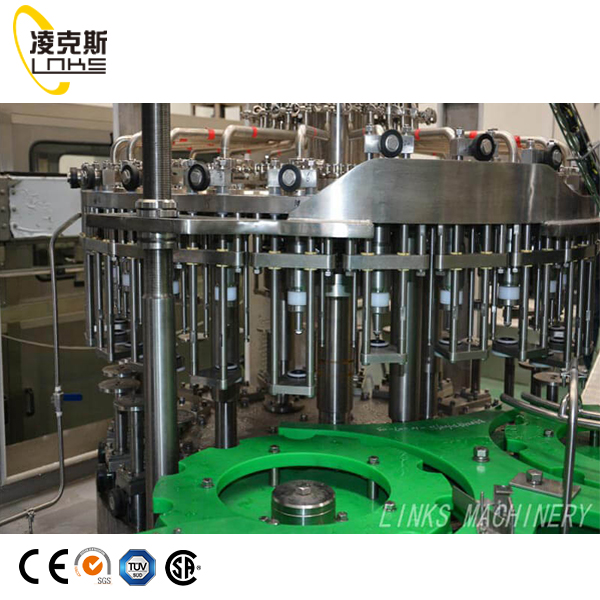

4). High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5). Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

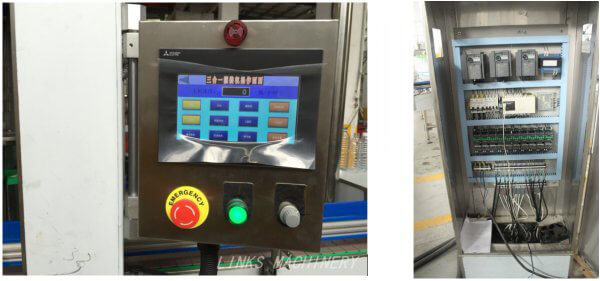

6). Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, Siemens.

Model	Washing heads	Filling heads (for fruit)	Filling heads (for juice)	Capping heads	Capacity 500ml(BPH)	Bottle Size(L)
RXGGF14-6-12-5	14	6	12	5	5,000	0.25-2.5L
RXGGF16-10-16-5	16	10	16	5	7,000	0.25-2.5L
RXGGF18-12-18-6	18	12	18	6	8,000	0.25-2.5L
RXGGF24-18-24-8	24	18	24	8	12,000	0.25-2.5L
RXGGF32-26-32-10	32	26	32	10	15,000	0.25-2.5L
RXGGF40-34-40-12	40	34	40	12	18,000	0.25-2.5L
You also can customize the size you need

No.	Name of parts	Producing area
1	Programmed controller	MitsubishiJapan
2	Low-pressure breaker	Siemens Germany
3	AC electromagnetic contractor	Siemens Germany
4	AC electromagnetic contractor	Siemens Germany
5	Heat-break device	Siemens Germany
6	Multi-continuous electrical device	Siemens Germany
7	Middle-continuous electrical device	Omron Japan
8	Inducing on-off	AUTONICS USA

1) Can your factory provide the whole plant from A to Z?

A: Yes, we can provide the complete plant, from bottling making plant, water purification plant, to filling packing plant.

2) How can I know the machinery quality before I order?

A: Frist, we will invite you visiting our factory to check the machines quality, and show the machines running for you in our factory.

3)What certificates you can provide?

A: Our factory provide the CE, SGS, ISO, and accroding to some countries, we also can provide the Pvoc, Coc, Soncap...ect

4)Can your factory make the bottle drawing, workshop layout, and labels for us?

A: We can help customers design their own bottle shape, workshop layout and label drawings, these jobs are free charge.

(Workshop need customer to provide the size of factory)

5)Installation and Training Time

A: We have professional engineer for oversea installaion and training, they can speak English, and have much experience oversea work.

Customer needs to provide the engineer visa, air tickets, sleep room and meals. Each day salary is 80usd, around 20-40days.

6) Warranty time:

We provide the 18 months as our machinery parts warranty time, and electric parts warranty time is 12 month.
