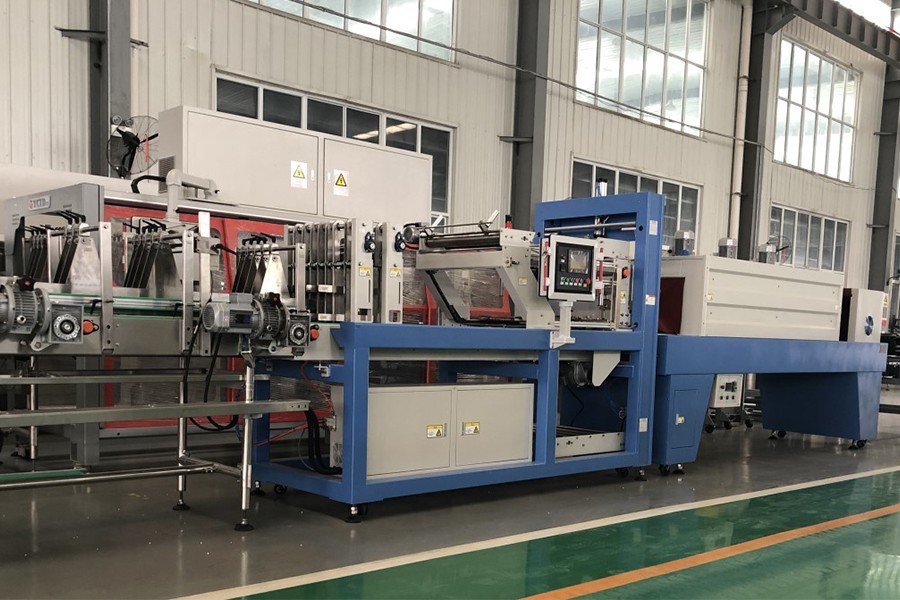

Automatic PE Film Shrink Wrapping Machine Automatic PE Film Shrink Wrapping Machine

High Speed Automatic Bottle Shrink Wrapping Machine is specially designed for high speed packing requirement of bottled drinking water (pure water, beverage, juice, milk etc). When conveying the bottles, it can arrange and film wrap the bottles automatically, which save the time and improve the working efficiency.

Quantity:
Share this:
  • Model: MB-20
  • Brand: LINKS MACHINERY
  • Code: 8422400000
  • Product Description

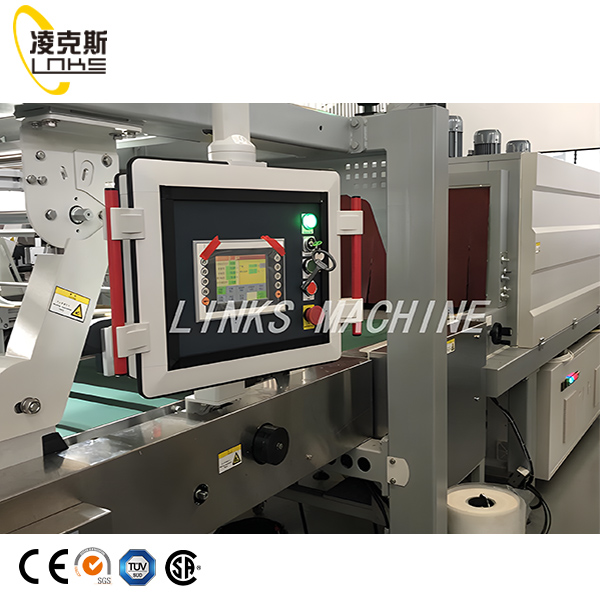

Automatic PE Film Shrink Wrapping Machine

Widely applicable to beverage, food, medicine and chemical supplies and other combined packaging .No matter square, round, flat can be packed, intuitive effect is very good, is the first choice of beer filling production line supporting equipment. This machine adopts multi-axis servo motor synchronous control technology, film cooling technology, film tension control technology and bottle no pressure control technology, the control system can automatically detect the state of the bottle, cardboard, film. Man-made changes in the position of the local mechanism of the machine shall not affect the synchronous operation of the machine. The machine can monitor the roll film storage capacity detected by counting pulse, and automatically alarm when the storage capacity is insufficient. The temperature of the heat shrinkage channel can be automatically controlled by constant temperature. Thin film conveying and cutting are also realized under a special control system.



 Technical Parameter / Electric Brands



Model

MB-20

Capacity:

12-20 Package/min

Packing   form

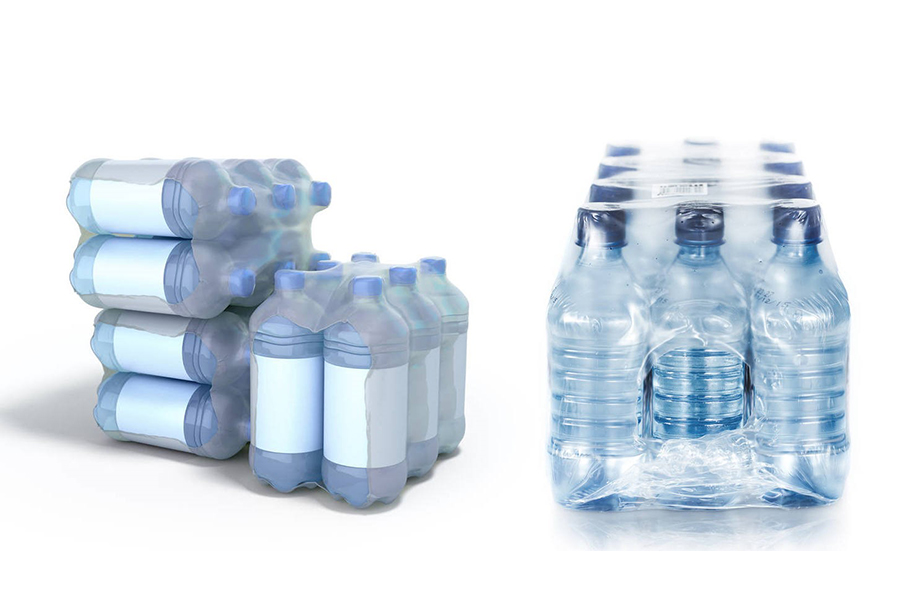

2*2, 2*3,   3×44×6 (or   appointed packing spec)

Applicable container shape

circular container PE bottlecontainer outer diameter:40~¢110height   :60340mm   circular or quadrate container.

Total   power charge

24kw

Machine   size

L10050*W1500*H2100mm

Operating   air pressure

0.60.8Mpa

Thickness of shrink film

0.06-0.12mm

Conveyor   height

according   to fills Production line (Adjusting scope 200mm)

Width of film roll

≤600mm

Diameter of film roll:

≤450mm

Main performance features

1.   The shape is artisticexcellent, the frame is novelunique,   and repair is easy.

2.   Electronic induction feeding film, with stable and smooth transfer speed,   replacing film quickly.

3.   Using isothermal sealing cuter, the seal intensity is 3 times above cooling   and sealing cutter, the seal is

 even and the life is 80 times above cooling   and sealing cutter.

4.   3 sets of frequency control transport system, the transmission is   precise and synchrony.

5.   Adopting air circulation technology, the shrinkage chamber features rational   structure, heat insulation, high precision for temperature control and better   packing effects.

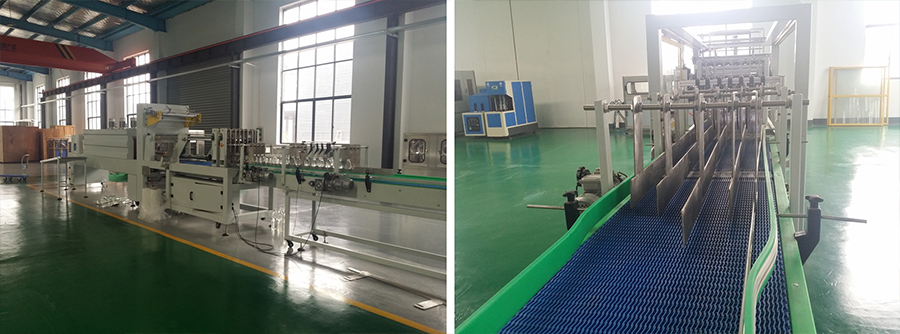

小高速5

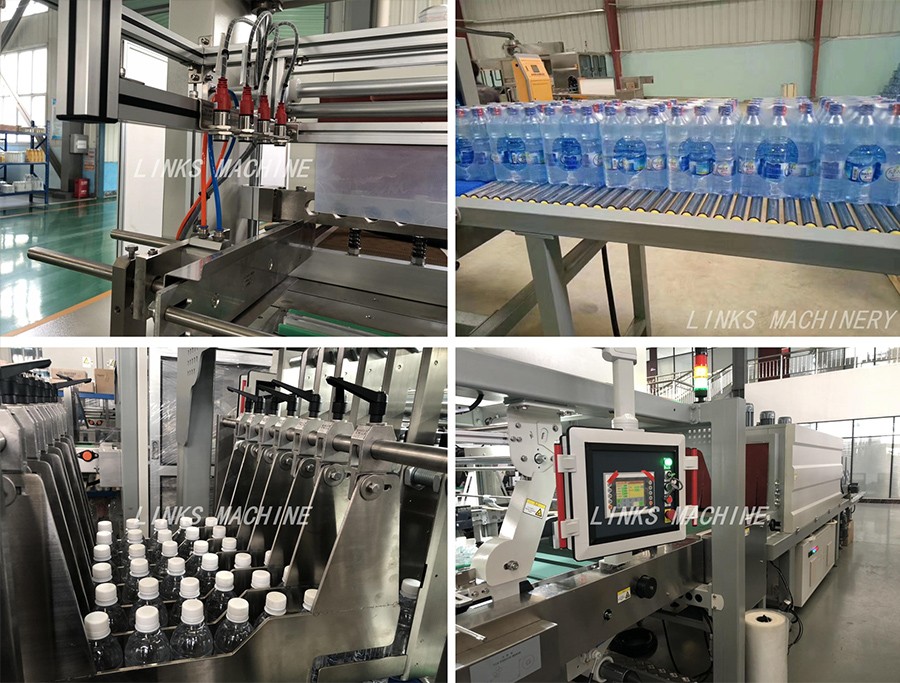

小高速6



 OTHER MACHINERY FROM LINKS MACHINERY

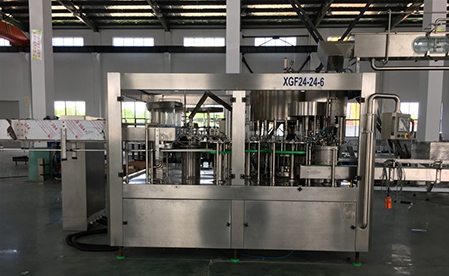

双头套标机10

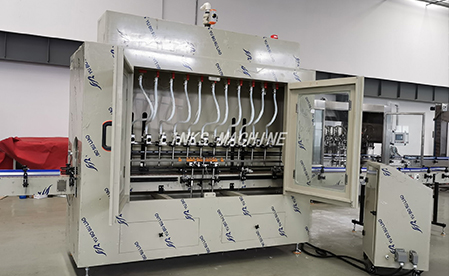

双头套标机12

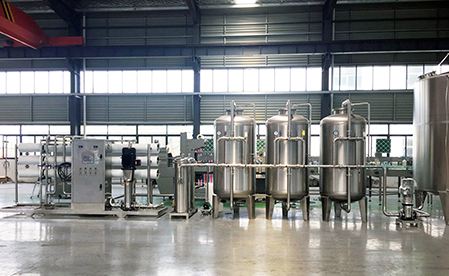

双头套标机14



Packing&Delivery
FAQ

What’s the warranty of the machine?

18 months for machinery parts; 12 months for electric parts.

Do you provide the spare parts.

We provide the 1 year easy broken spare parts for customer together with the machine delivery.

During the warranty time, we provide the free-charge spare parts.

What is the delivery time?

Normally, our delivery time is 45-60days, it depends the types of machines.

How to install and cost?

We send our engineers to customer for installation and training, the time around 20-40days, it depends different kinds machines. Salary is 100USD/Day.

What is your advantage?

We are the original factory. We are more strict about our brand and machine quality.

We can provide the low cost of spare parts to our customer, and faster after-sales response.
