Brand: LINKS MACHINERY

Product Description

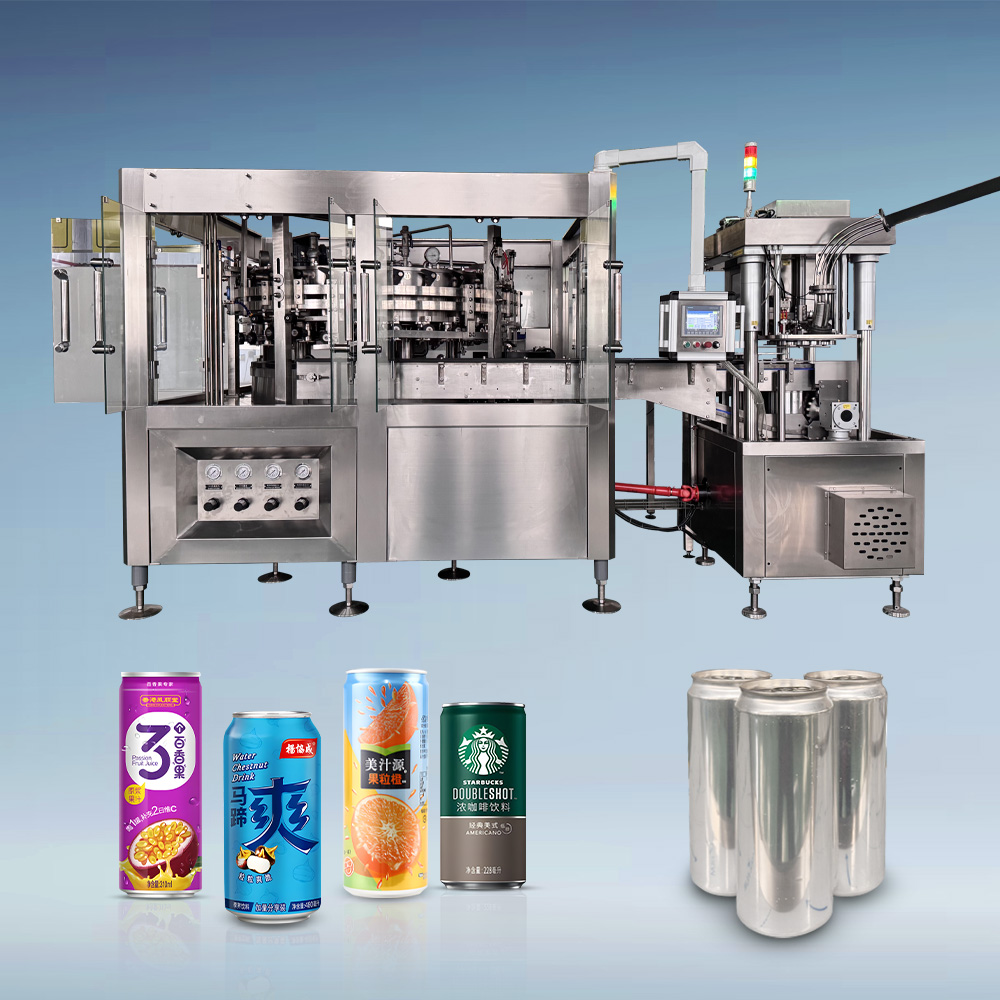

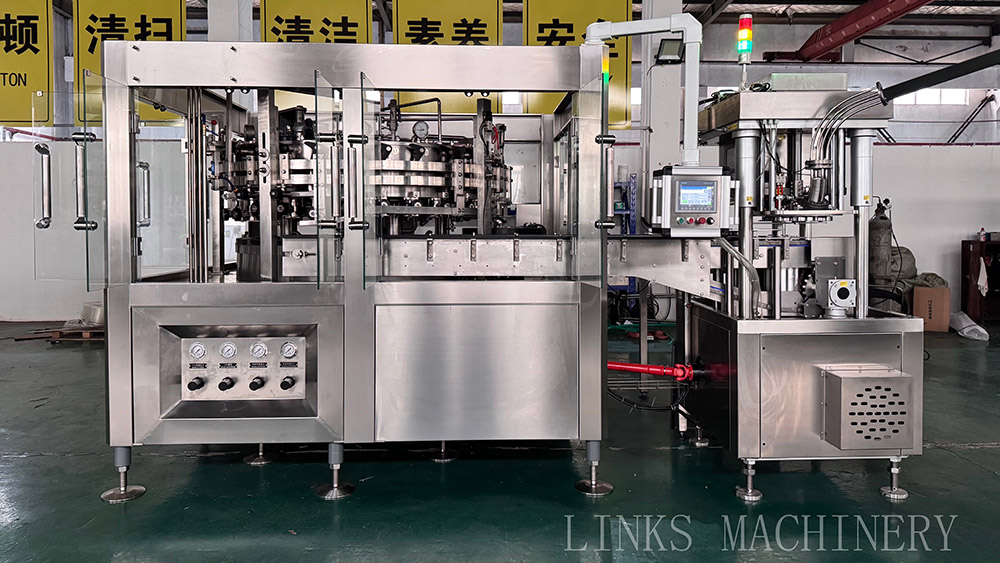

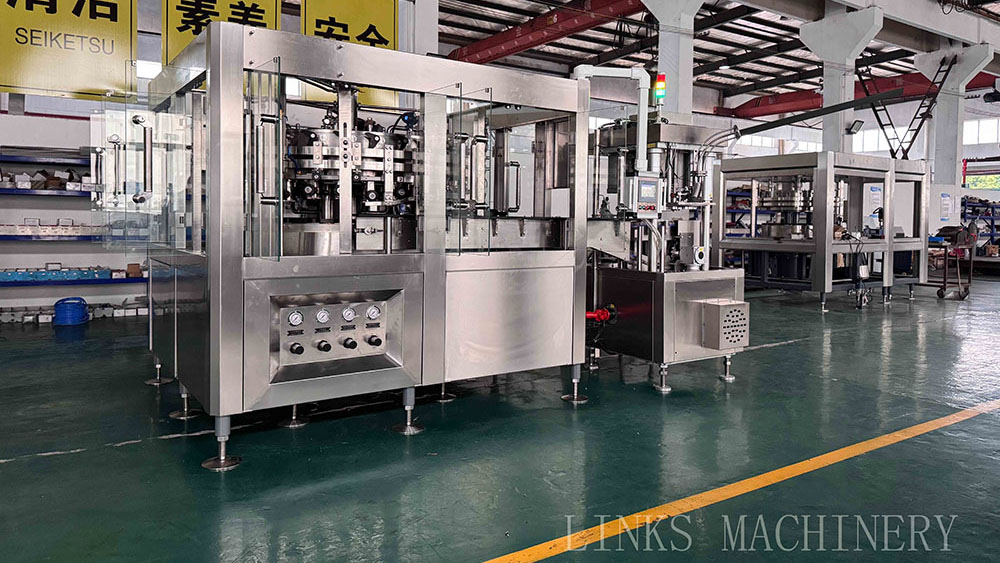

Cans Filling Machine

未标题-2

1). Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2). Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.
3). The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

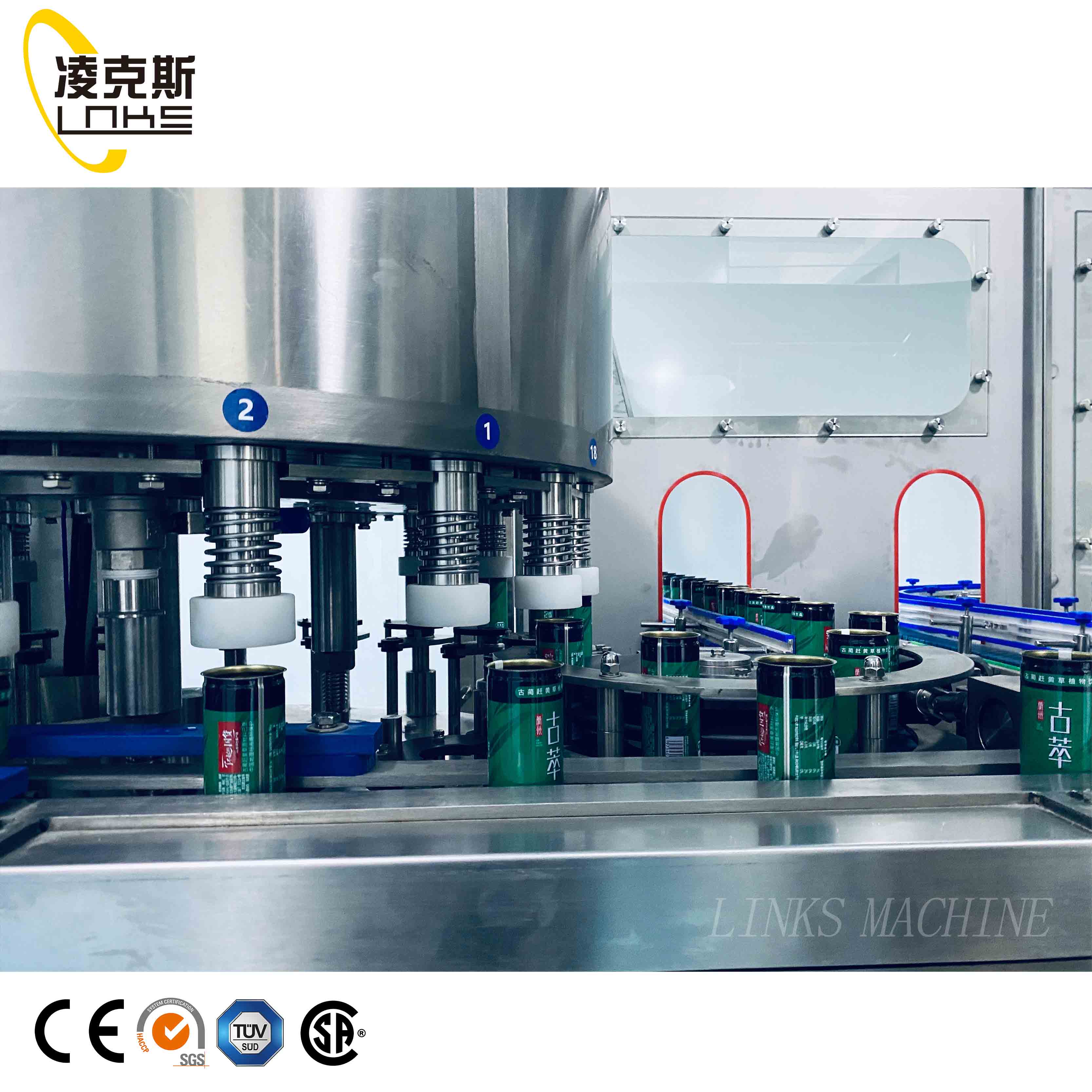

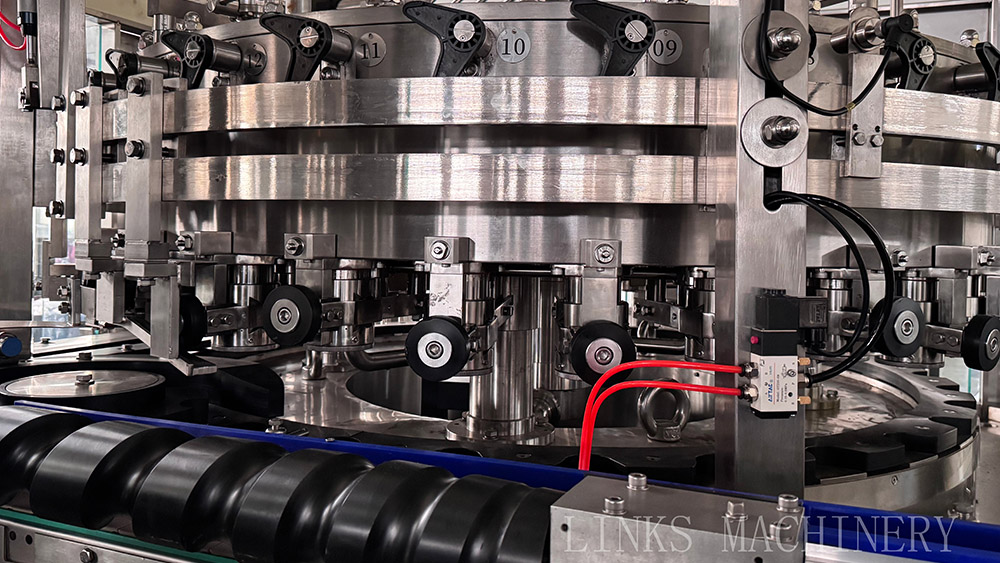

4). High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5). Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6). Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, Siemens.

Filling Category	Water,Juice Drink
Model	12-4	18-4	24-6	36-8	55-8
Capacity	6000CPH (330ml/can )	12000CPH (330ml/can )	18000CPH (330ml/can )	24000CPH (330ml/can )	36000CPH (330ml/can )
Filling Valve	12	18	24	36	55

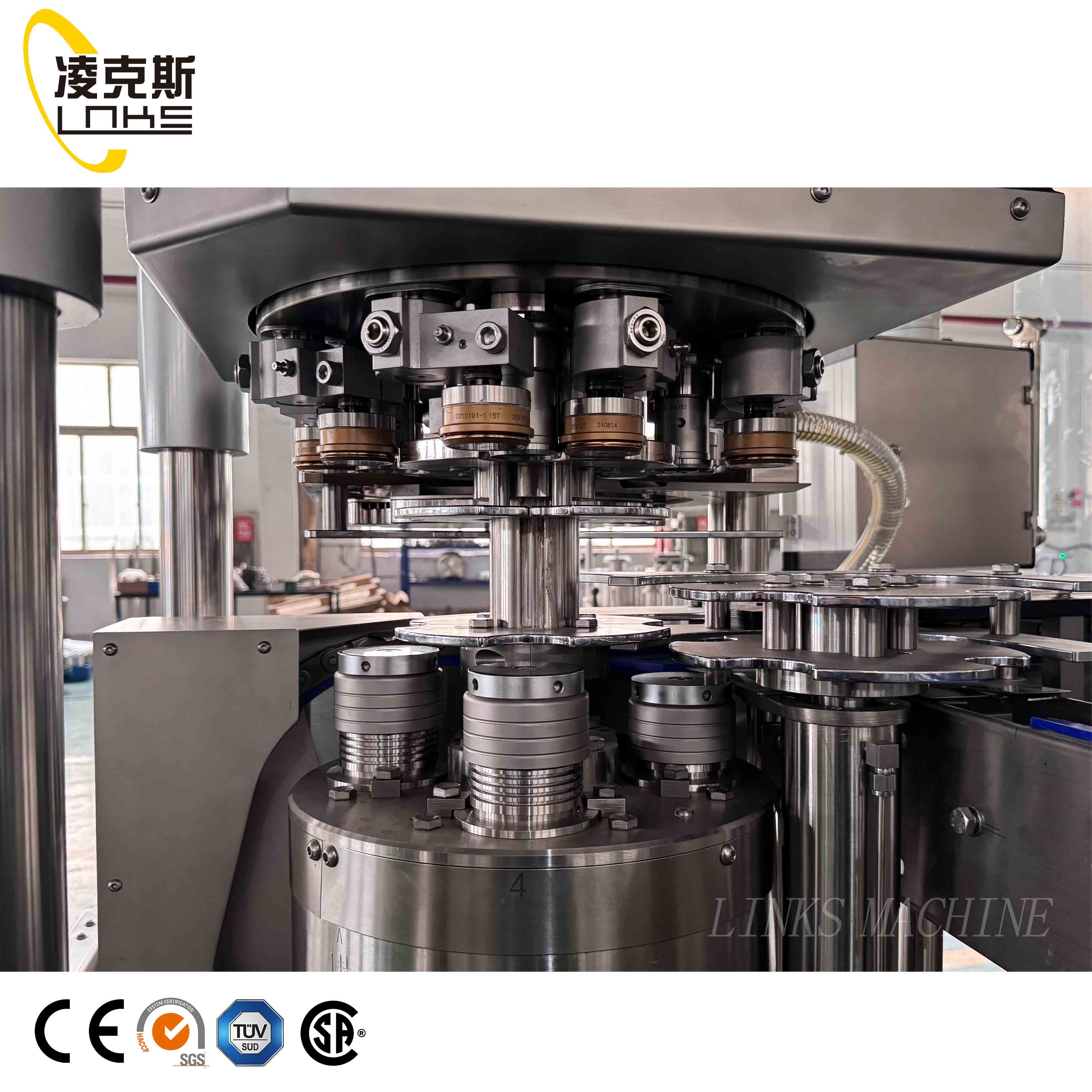

Seaming Head	2	4	6	8	8
Filling Temperature	Set the temperature according to the process of filling the product
Filling Method	Constant Pressure
Can Up and Down Adjustment System	Manual	Manual	Electric	Electric	Electric
Filling Level Accuracy	±2mm	±2mm	±2mm	±2mm	±2mm
Working Type	Filler Driving Force From Seamer
Inlet and Outlet of the Direction of Can	180 Degrees	360 Degrees	360 Degrees	360 Degrees	360 Degrees
Total Power	5KW	5KW	7.2KW	11KW	11KW
PLC	Siemens
Inverter	Siemens
Bearing Brand	SKF & NSK
Overall Size ( LWH )	285517802235mm	315319802350mm	482326072170mm	650026072170mm	650026072170mm

No.	Name of parts	Producing area
1	Programmed controller	MitsubishiJapan
2	Low-pressure breaker	Siemens Germany
3	AC electromagnetic contractor	Siemens Germany
4	AC electromagnetic contractor	Siemens Germany
5	Heat-break device	Siemens Germany
6	Multi-continuous electrical device	Siemens Germany
7	Middle-continuous electrical device	Omron Japan
8	Inducing on-off	AUTONICS USA

1) Can your factory provide the whole plant from A to Z?

A: Yes, we can provide the complete plant, from bottling making plant, water purification plant, to filling packing plant.

2) How can I know the machinery quality before I order?

A: Frist, we will invite you visiting our factory to check the machines quality, and show the machines running for you in our factory.

3)What certificates you can provide?

A: Our factory provide the CE, SGS, ISO, and accroding to some countries, we also can provide the Pvoc, Coc, Soncap...ect

4)Can your factory make the bottle drawing, workshop layout, and labels for us?

A: We can help customers design their own bottle shape, workshop layout and label drawings, these jobs are free charge.

(Workshop need customer to provide the size of factory)

5)Installation and Training Time

A: We have professional engineer for oversea installaion and training, they can speak English, and have much experience oversea work.

Customer needs to provide the engineer visa, air tickets, sleep room and meals. Each day salary is 80usd, around 20-40days.

6) Warranty time:

We provide the 18 months as our machinery parts warranty time, and electric parts warranty time is 12 month.

6000CPH (330ml/can )
