Automatic Bottle Sleeve Label Shrink Machine-PVC/PET Automatic Bottle Sleeve Label Shrink Machine-PVC/PET

Automatic Shrink Sleeve Labeling Machine: the whole machine is waterproof as well as rustless. Adjustable cutter head: uniquely cyclotron cut-off, double sided cutting edge with a long service life. Single positioning center guide pillar: a more stable for label delivery. Synchronous bottle divider: a more stable transmission for bottle. Bottom set of label brush: a more precision for casting label..

Quantity:
Share this:

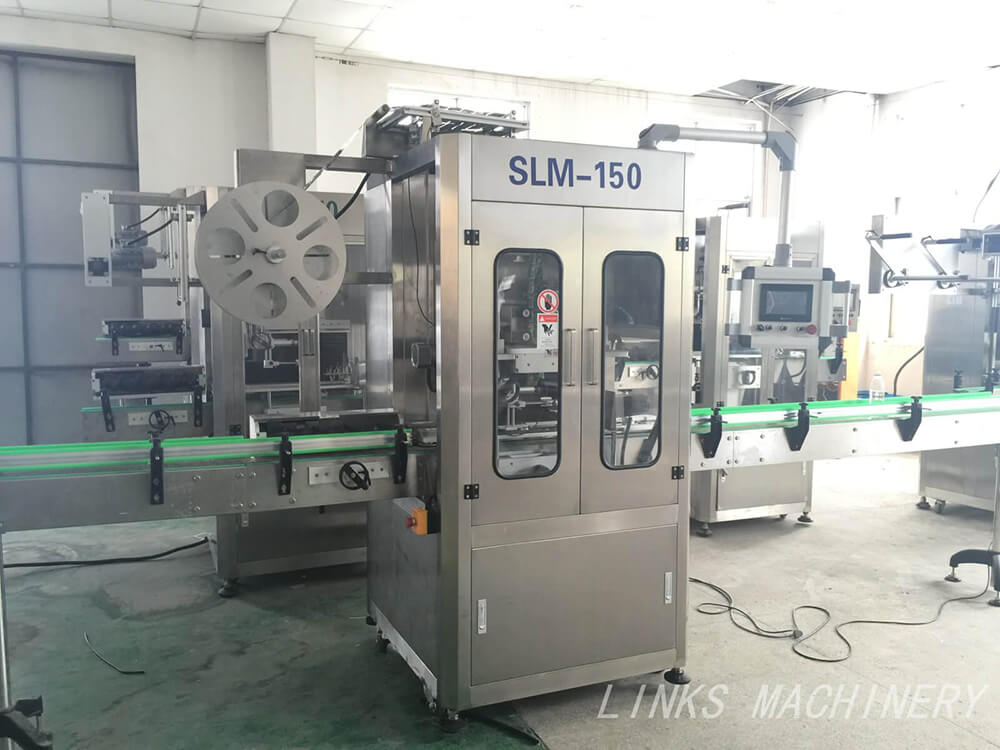

  • Model: SLM-150B/250B
  • Brand: LINKS MACHINERY
  • Code: 8422309090
  • Product Description


Automatic Bottle Sleeve Label Shrink Machine-PVC/PET




The Features of Automatic Bottle Shrink Sleeve Labeling Machine

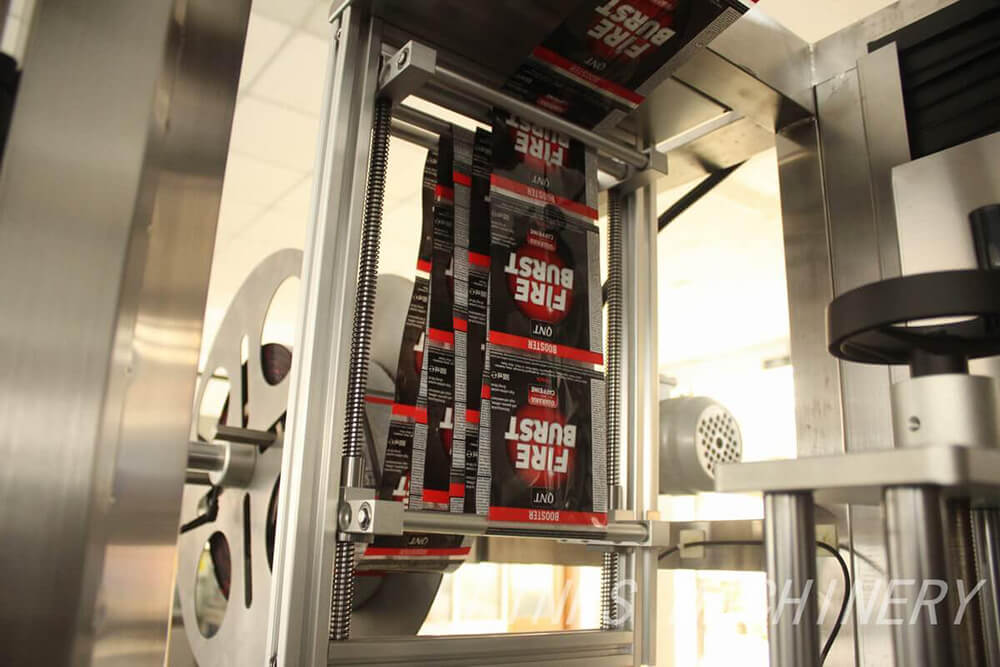

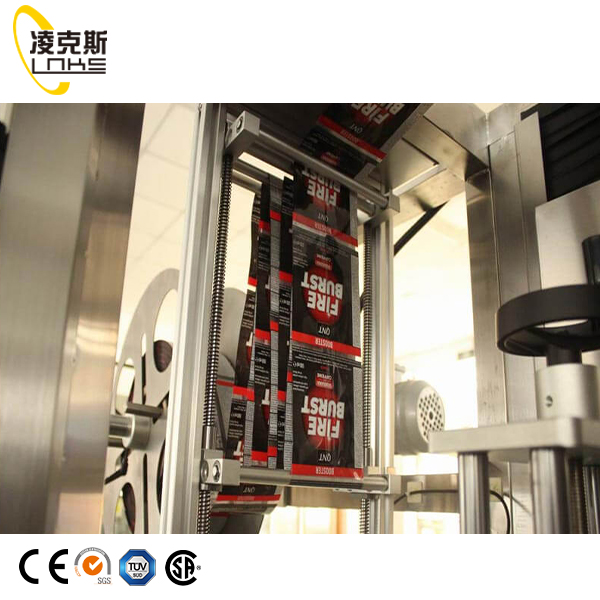

1.The shrinkable film roll with adjustable locking gear, can be adjusted according to different roll 5-10

2. The applicable bottle is the machine square bottle and round bottle

3. Without tools, the driven machinery can be adjusted to meet different bottle size

4. Particular inserting label ways, i.e. inserting label, it is reasonable and convenient.

5. Full automatic feeder, the flat shrinking and tension are adjusted together.

6. It is assured to low error that there is inspection of rolling label cut.

7. Particular blade design, blade base can be change by free, changing blade quickly and conveniently.

8. It is easy to change the central clamping device without any tools.

9. Oriental rolling label device can be lifting synchronal.

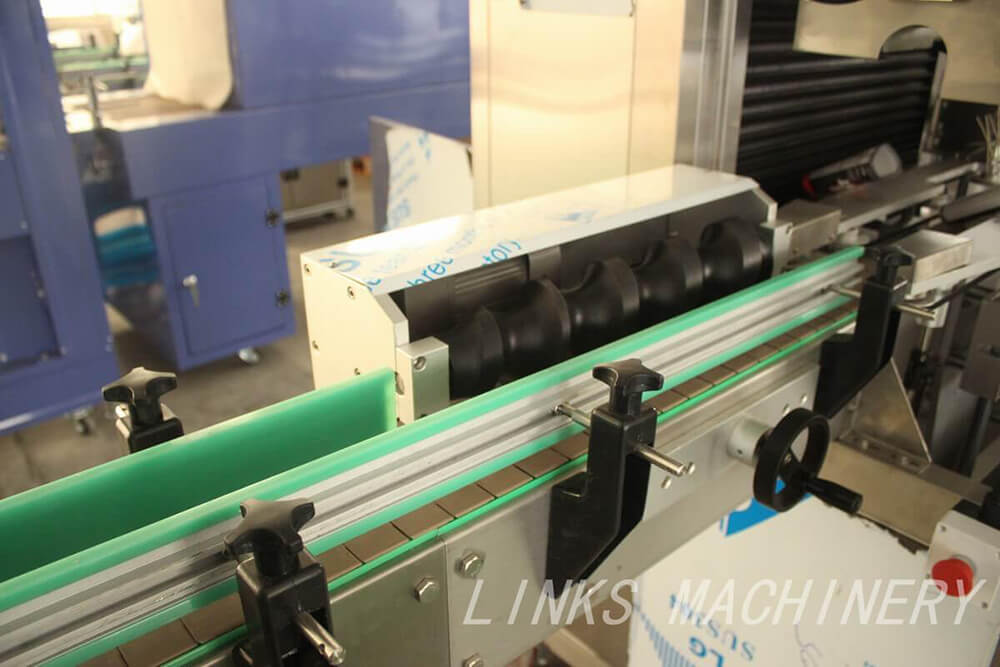

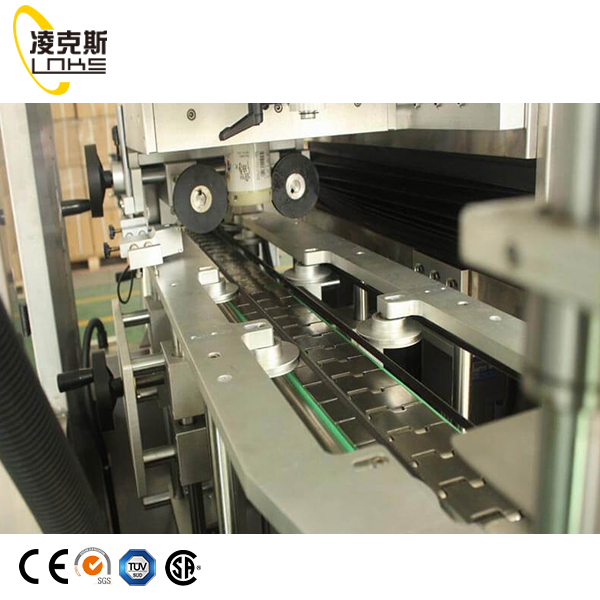

10. The separating bottle screw, oriental belt and conveyor are adjusted synchronal, it is easy and quick to do.

11.Adopting ANCHUAN servo motor made in JAPAN and sensitive photo electricity, to insure the precision of cutting label.

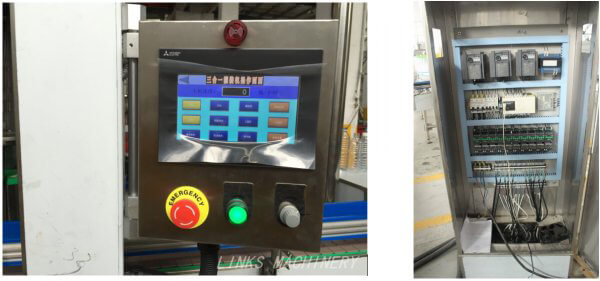

12. Stainless steel electric controller, adopting Mitsubishi PLC made in Japan, all other electric parts adopts Schneider, Siemens...ect.

13. Adopting advanced man-machine automatic controlling technology, main component adopts famous brand.



Electrical Appliance Configuration Specification:

SLM-150/250 type is a kind of low speed machine,but it adopts equivalent PLC,positioning module,servo motor and frequency converter.Besides,its touch screen is featured with a humanized operatiuon.



Name/Model

SLM-150B

SLM-250B

Capacity:

Max 9000BPH

Max15000BPH

Label Material

PVC/PET

Bottle type:

Plastic/Glass bottle

Bottle diameter:

28-125mm

Bottle height

max 380mm

Label diameter:

30-125mm

Label length :

30-250mm

Label thickness :

0.035mm

Heat Tunnel:

Steam type (electrical tunnel is optional)

Main machine outer size:

2200L×860W×2050H(mm)

Equipment weight:

1150Kg

1200kg

Main machine power

3.0Kw

3.3Kw

Steam generator power

18kw

18kw



Name

Model

Qty





PLC

FPX-C60T

1

Panasonic

Japan

HMI

MT6070I

1

Weiniew

Taiwan

High-speed fiber-optic sening

FX-301

1

SUNX

Japan

Photoelectric sensor

CX-421

1

SUNX

Japan

Photoelectric sensor

CX-442

1

SUNX

Japan

Photoelectric sensor

PM-L44

2

SUNX

Japan

Servo motor for label delivery

MHMD042P1U(750W)

1

Panasonic

Japan

Servo motor drive for label delivery

MBDDT2210003(750W)

1

Panasonic

Japan

Cutter head servo motor

MHMD042P1U(400W)

1

Panasonic

Japan

Cutter head servo motor drive

MBDDT2210003400W

1

Panasonic

Japan

Low power a-c dynamo

5IK90GN-YF-5GN7.5K

1

TDG

Taiwan

Frequency converter for bottle divider

BFV00022DK

1

Panasonic

Japan

Low power a-c dynamo for bottle drlivery

5IK90GN-YFT-5GN15K

1

TDG

Taiwan

Frequency converter for bottle carring

BFV00022DK

1

Panasonic

Japan

Frequency converter for convery

BFV00072GK

1

Panasonic

Japan

Material-shelflow -power exchange motor

RV50-15K-180

1

TDG

Taiwan

Frequency of material-shelf

BFV00022DK

1

Panasonic

Japan

Exchange servo motor of machine'head up and down

51K90GU-CF-5GU30KB

1

TDG

Taiwan

Low power a-c dynamo for bottom set of brysh

51K120A-CFT

1

TDG

Taiwan

Low power a-c dynamo for bruch

4IK25GN-CF-4GN3K

2

TDG

Taiwan

Fan motor

YL8022

1

Jiacheng

Zhejiang












1) Can your factory provide the whole plant from A to Z?

A: Yes, we can provide the complete plant, from bottling making plant, water purification plant, to filling packing plant.
2) How can I know the machinery quality before I order?

A: Frist, we will invite you visiting our factory to check the machines quality, and show the machines running for you in our factory.

3)What certificates you can provide?

A: Our factory provide the CE, SGS, ISO, and accroding to some countries, we also can provide the Pvoc, Coc, Soncap...ect

4)Can your factory make the bottle drawing, workshop layout, and labels for us?

A: We can help customers design their own bottle shape, workshop layout and label drawings, these jobs are free charge.
(Workshop need customer to provide the size of factory)
5)Installation and Training Time

A: We have professional engineer for oversea installaion and training, they can speak English, and have much experience oversea work.
Customer needs to provide the engineer visa, air tickets, sleep room and meals. Each day salary is 80usd, around 20-40days.

6) Warranty time:

We provide the 18 months as our machinery parts warranty time, and electric parts warranty time is 12 month.
