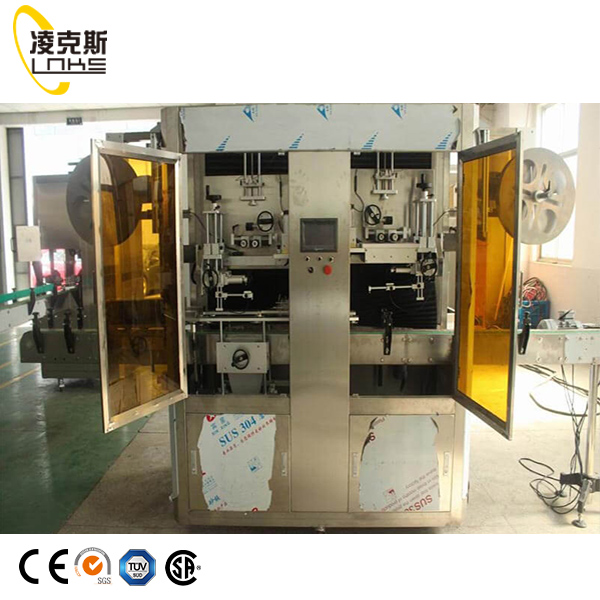

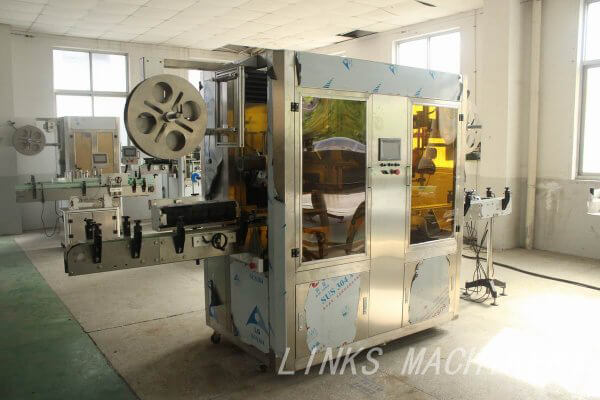

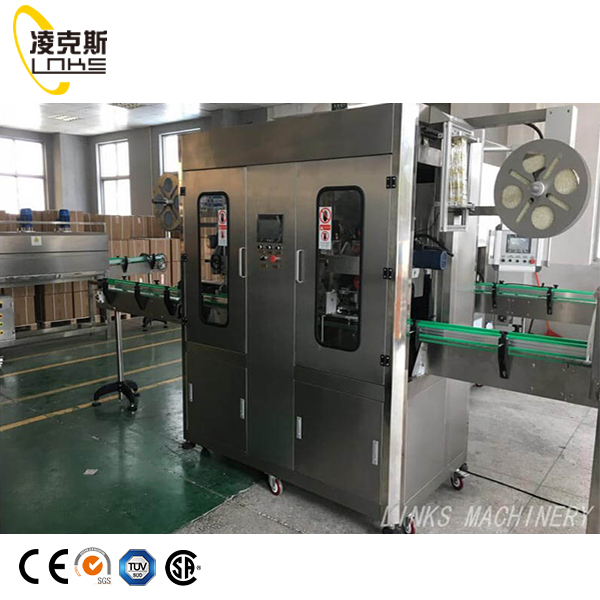

Double Sleeve Shrink Labeling Machine: In order to meet the needs of markets at home and abroad，our company has researched and developed double head mechanism to meet the requirements of casting label for casting label for bottle mouth and bottle body
Automatic Double Heads Sleeve Labeling Machine :

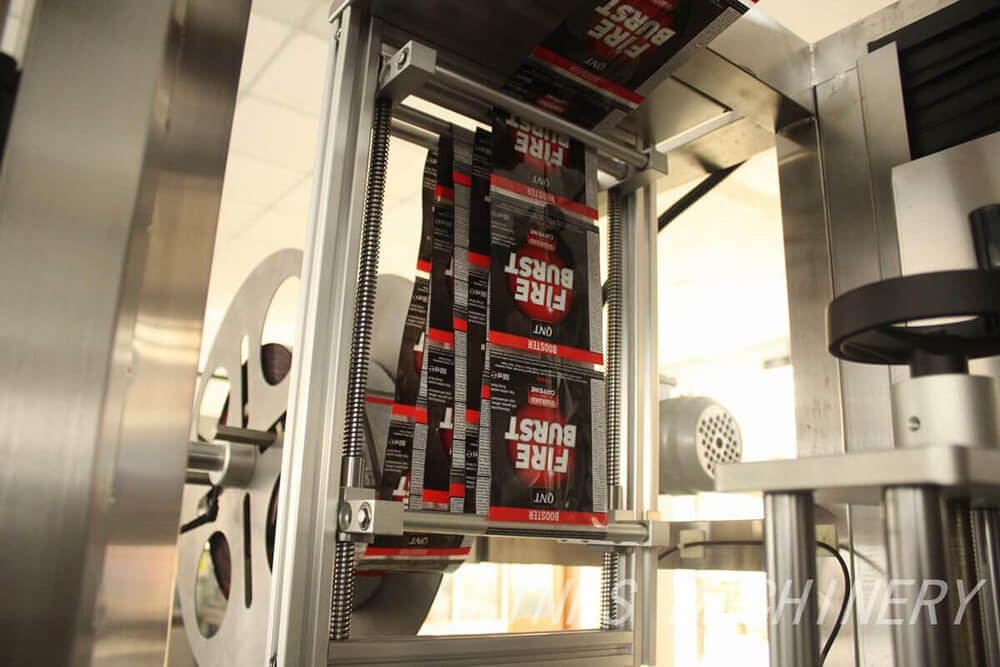

1. The shrinkable film roll with adjustable locking gear, can be adjusted according to different roll 5-10
2. The applicable bottle is the machine square bottle and round bottle
3. Without tools, the driven machinery can be adjusted to meet different bottle size
4. Particular inserting label ways, i.e. inserting label, it is reasonable and convenient.
5. Full automatic feeder, the flat shrinking and tension are adjusted together.
6. It is assured to low error that there is inspection of rolling label cut.
7. Particular blade design, blade base can be change by free, changing blade quickly and conveniently.
8. It is easy to change the central clamping device without any tools.
9. Oriental rolling label device can be lifting synchronal.

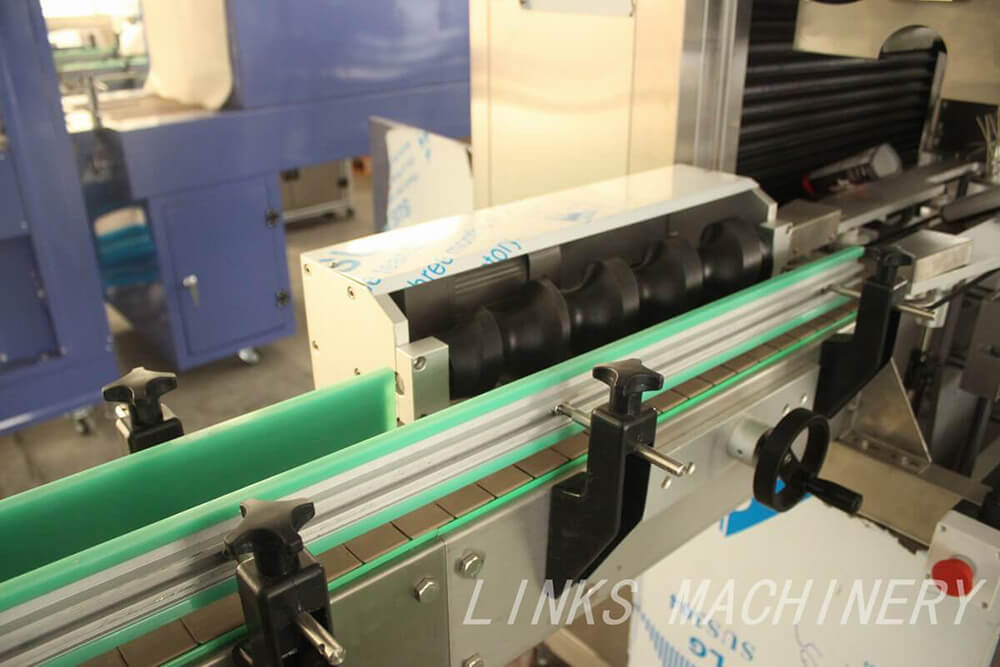

10. The separating bottle screw, oriental belt and conveyor are adjusted synchronal, it is easy and quick to do.
11.Adopting ANCHUAN servo motor made in JAPAN and sensitive photo electricity, to insure the precision of cutting label.

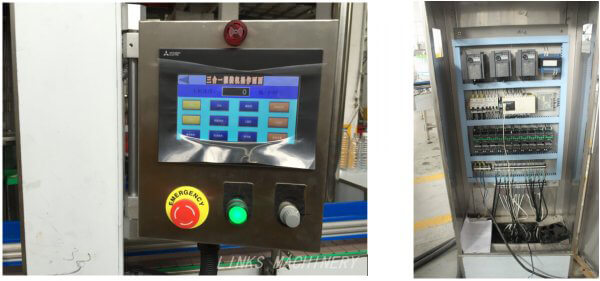

12. Stainless steel electric controller, adopting Mitsubishi PLC made in Japan
13. Adopting advanced man-machine automatic controlling technology, main component adopts famous brand.
Electrical Appliance Configuration Specification:
SLM-150D/250D type adopts equivalent PLC. Positioning module,servo motor and frequency converter. Besides,its touch screen is featured with a humanized operation.
With the accurate casting label,the equipment applies to the casting label and sealing for bottles with various shapes and hexagonal oil drum.The products are sold in quantity to the domestic and overseas markets.
| Name/Model | SLM-150D | SLM-250D |
| Capacity: | Max 9000BPH | Max15000BPH |
| Label Material | PVC/PET | |
| Bottle type: | Plastic/Glass bottle | |
| Bottle diameter: | 28-125mm | |
| Bottle height | max 380mm | |
| Label diameter: | 30-125mm | |
| Label length : | 30-250mm | |
| Label thickness : | 〉0.035mm | |
| Heat Tunnel: | Steam type (electrical tunnel is optional) | |
| Main machine outer size: | 3200L*1200W*2070H mm | |
| Equipment weight: | 1350Kg | 1400kg |
| Main machine power | 5.5Kw | 6.0Kw |
| Steam generator power | 18kw | 18kw |
| Name | Model | Qty |
|
|
| PLC | FPX-C60T | 1 | Panasonic | Japan |
| HMI | MT6070I | 1 | Weiniew | Taiwan |
| High-speed fiber-optic sening | FX-301 | 1 | SUNX | Japan |
| Photoelectric sensor | CX-421 | 1 | SUNX | Japan |
| Photoelectric sensor | CX-442 | 1 | SUNX | Japan |
| Photoelectric sensor | PM-L44 | 2 | SUNX | Japan |
| Servo motor for label delivery | MHMD042P1U(750W) | 1 | Panasonic | Japan |
| Servo motor drive for label delivery | MBDDT2210003(750W) | 1 | Panasonic | Japan |
| Cutter head servo motor | MHMD042P1U(400W) | 1 | Panasonic | Japan |
| Cutter head servo motor drive | MBDDT2210003（400W） | 1 | Panasonic | Japan |
| Low power a-c dynamo | 5IK90GN-YF-5GN7.5K | 1 | TDG | Taiwan |
| Frequency converter for bottle divider | BFV00022DK | 1 | Panasonic | Japan |
| Low power a-c dynamo for bottle drlivery | 5IK90GN-YFT-5GN15K | 1 | TDG | Taiwan |
| Frequency converter for bottle carring | BFV00022DK | 1 | Panasonic | Japan |
| Frequency converter for convery | BFV00072GK | 1 | Panasonic | Japan |
| Material-shelflow -power exchange motor | RV50-15K-180 | 1 | TDG | Taiwan |
| Frequency of material-shelf | BFV00022DK | 1 | Panasonic | Japan |
| Exchange servo motor of machine'head up and down | 51K90GU-CF-5GU30KB | 1 | TDG | Taiwan |
| Low power a-c dynamo for bottom set of brysh | 51K120A-CFT | 1 | TDG | Taiwan |
| Low power a-c dynamo for bruch | 4IK25GN-CF-4GN3K | 2 | TDG | Taiwan |
| Fan motor | YL8022 | 1 | Jiacheng | Zhejiang |
