Automatic Half Tray PE Film Shrink Wrapping Machine Automatic Half Tray PE Film Shrink Wrapping Machine

1.Simple and beautiful appearance, novel structure, unique and easy maintenance. Pneumatic expansion support film coil, electronic induction film transmission, smooth film delivery, fast and rapid film change. 2.Unique "Micro Vibration" bottle method (patented technology), can make the product smooth division, to avoid the phenomenon of squeezing bottles.

Quantity:
Share this:
  • Brand: LINKS MACHINERY
  • Code: 8422301090
  • Product Description

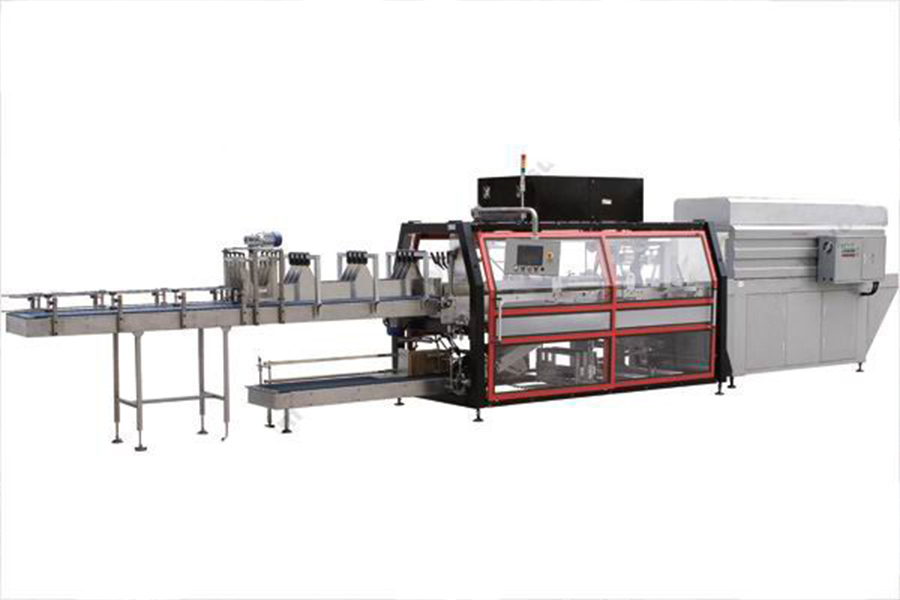

Automatic Half Tray PE Film Shrink Wrapping Machine

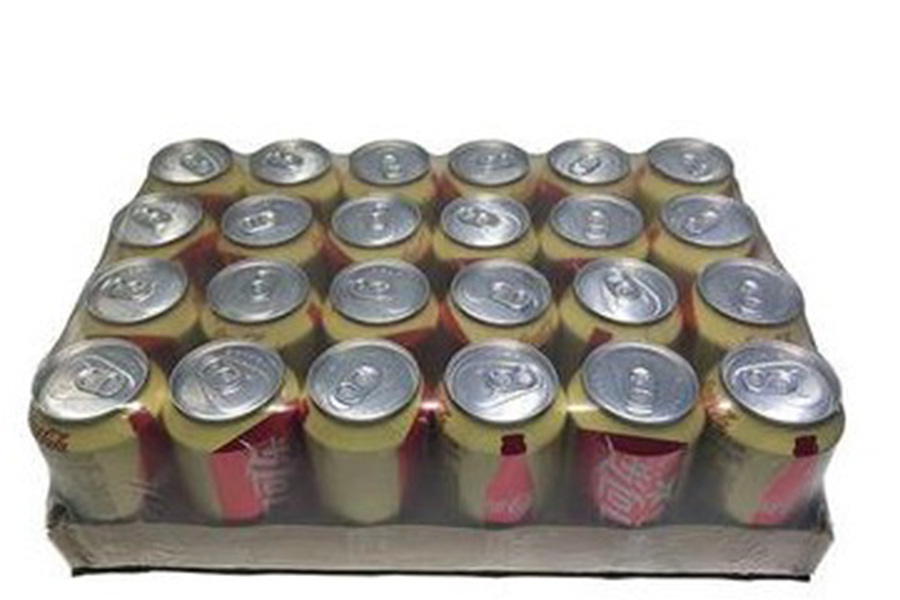

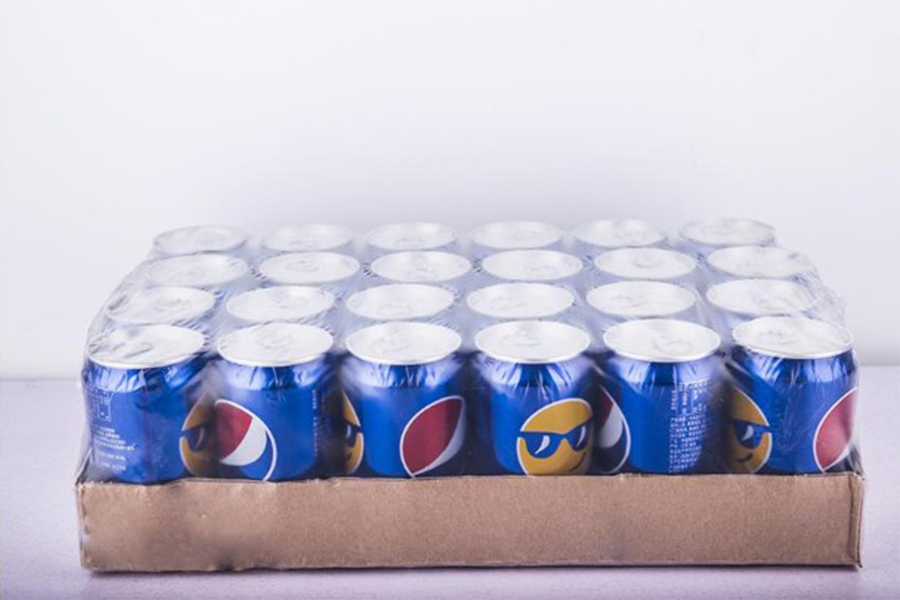

This machine mainly use for bottle and cans packing processing, it is 2 in 1 automatic packing machine, can tray carton forming, packing, film wrapping then shrinking.




 Technical Parameter / Electric Brands

Model

LK-BT-20

Capacity:

18-22Packages/Min

Packing form

2*2, 2*3, 3×44×6 (or appointed packing spec)

Applicable   container shape

circular   container   PE bottlecontainer outer diameter:40~¢110height   :60340mm   circular or quadrate container.

Total power charge

27kw

Machine size

16590L×3840W×2614H

Operating air pressure

0.60.8Mpa  60L/min

Thickness of shrink film

0.06-0.12mm

Conveyor height

according to   fills Production line (Adjusting scope 200mm)

Width of film roll

≤600mm

Diameter of film roll:

≤450mm

Main performance features

l  Automatic tray carton folding packing and film wrapping   packing.

l  Mechanical adjustment:   without changing the packaging form, only change high diameter, about 20   minutes.Without changing bottle diameter bottle high only change the   packaging combination form, not more than 10 minutes.

  • Dividing   groups: using straight-line bottle, bottle according to the packing group,   the Numbers required for the servo motor control, accurate positioning,   debugging is simple and reliable.

l  Mechanical transmission:   the transmission driven by servo motor, the synchronous belt and chain   transmission combination form, transmission of gender, the location of the   chain transmission is added have a shield, and lubrication device, ensure   personnel safety and the environment clean

l  High degree of automation:   the machine use PLC programming control, electrical control parts are   imported, reliable pneumatic device and the advanced electronic control   technology, can adjust the production speed stepless synchronization with the   whole production line operation



l  equipment conform to the   safe operation and safe operation of the relevant specifications and   standards.All lubrication part access centralized location, convenient   operation

l  Carton storage can one time load 500pcs original carbon,   can put carton at any time.



Main component

No

Name

Brand

Manufacturer

1

PLC controller

Siemens

Germany

2

touch-screen

Siemens

Germany

3

Contract

Schneider

France

4

Transducer

Schneider

France

5

 Proximity switch

P+F

Germany

6

Button switch

Schneider

France

7

Rely

Schneider

France

8

Cylinder

Airtac

Taiwan

9

Servo motor

Siemens

Germany
