1. The shape is artistic、excellent, the frame is novel、unique, and repair is easy. 2. Electronic induction feeding film, with stable and smooth transfer speed, replacing film quickly. 3. Using isothermal sealing cuter, the seal intensity is 3 times above cooling and sealing cutter, the seal is even and the life is 80 times above cooling and sealing cutter. 4. 3 sets of frequency control transport system, the transmission is precise and synchrony. 5. Adopting air circulation technology, the shrinkage chamber features rational structure, heat insulation, high precision for temperature control and better packing effects.

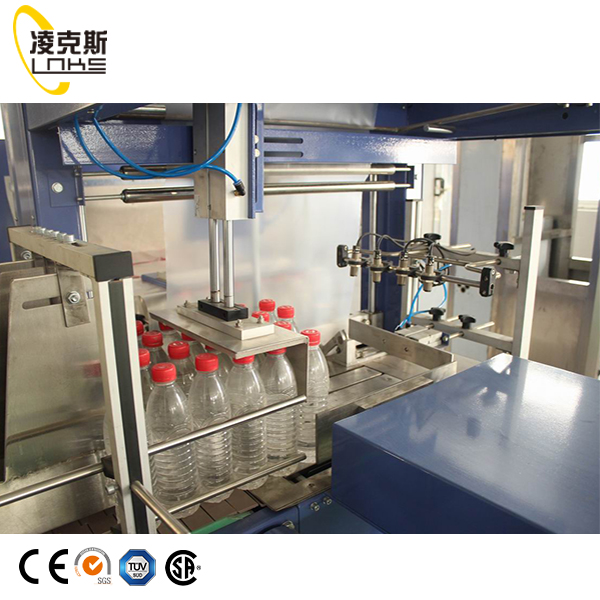

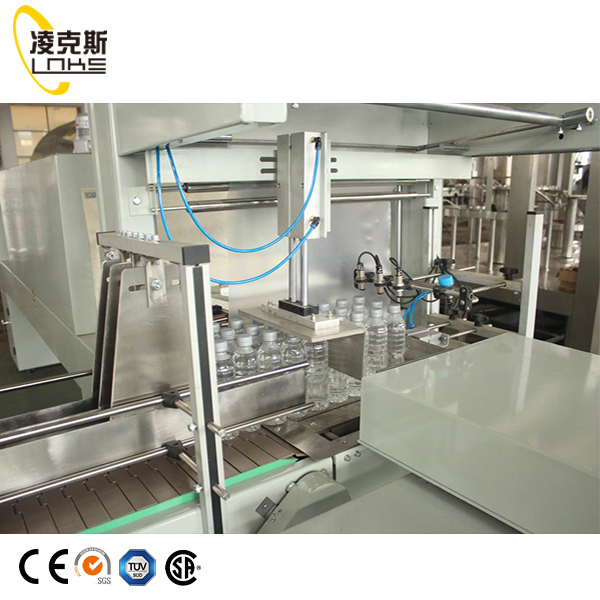

Automatic PE Film Shrink Wrapping Machine
Widely applicable to beverage, food, medicine and chemical supplies and other combined packaging .No matter square, round, flat can be packed, intuitive effect is very good, is the first choice of beer filling production line supporting equipment. This machine adopts multi-axis servo motor synchronous control technology, film cooling technology, film tension control technology and bottle no pressure control technology, the control system can automatically detect the state of the bottle, cardboard, film. Man-made changes in the position of the local mechanism of the machine shall not affect the synchronous operation of the machine. The machine can monitor the roll film storage capacity detected by counting pulse, and automatically alarm when the storage capacity is insufficient. The temperature of the heat shrinkage channel can be automatically controlled by constant temperature. Thin film conveying and cutting are also realized under a special control system.

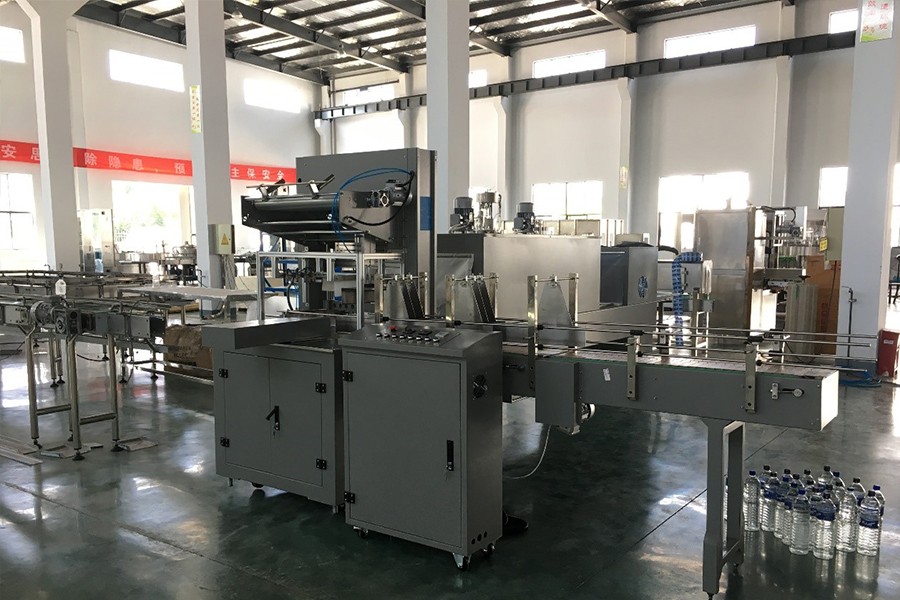

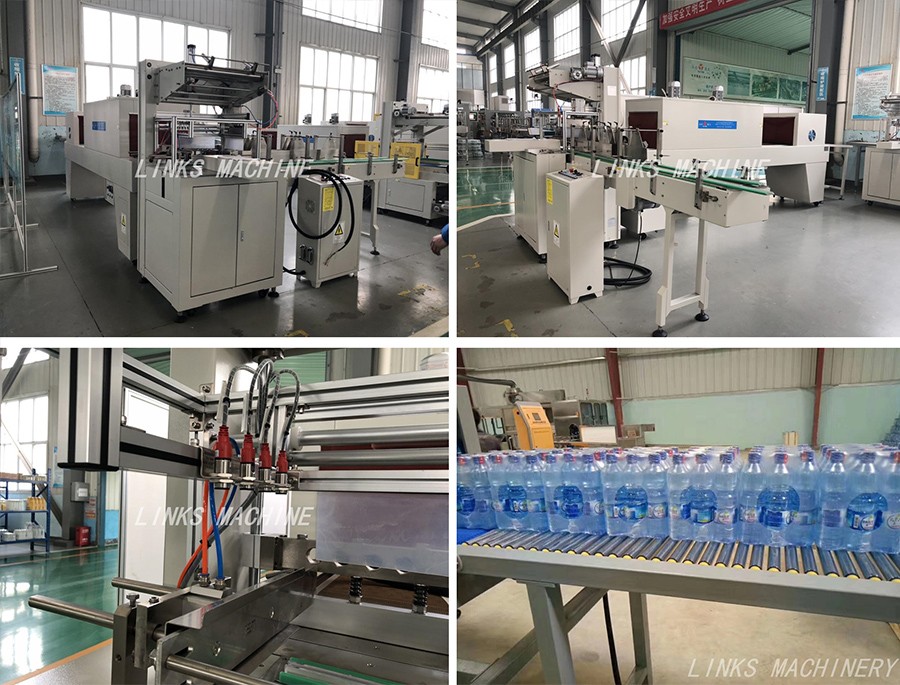

CB-65 L type Wrapping Machine
Technical Parameter / Electric Brands
Model | CB-65 |
Capacity: | 8-12Packages/Min |
Packing form | 2*2, 2*3, 3×4、4×6 (or appointed packing spec) |
Applicable container shape | circular container、 PE bottle、container outer diameter:￠40～￠110，height :60～340mm circular or quadrate container. |
Total power charge | 19kw |
Machine size | L×W×H=5500×3200×2100 mm |
Operating air pressure | 0.6～0.8Mpa |
Thickness of shrink film | 0.06-0.12mm |
Conveyor height | according to fills Production line (Adjusting scope 200mm) |
Width of film roll | ≤600mm |
Diameter of film roll: | ≤450mm |
Main performance features | |
1. The shape is artistic、excellent, the frame is novel、unique, and repair is easy. | |
2. Electronic induction feeding film, with stable and smooth transfer speed, replacing film quickly. | |
3. Using isothermal sealing cuter, the seal intensity is 3 times above cooling and sealing cutter, the seal is even and the life is 80 times above cooling and sealing cutter. | |
4. 3 sets of frequency control transport system, the transmission is precise and synchrony. | |
5. Adopting air circulation technology, the shrinkage chamber features rational structure, heat insulation, high precision for temperature control and better packing effects. | |
OTHER MACHINERY FROM LINKS MACHINERY
| |
| |
|
18 months for machinery parts; 12 months for electric parts.
We provide the 1 year easy broken spare parts for customer together with the machine delivery.
During the warranty time, we provide the free-charge spare parts.
Normally, our delivery time is 45-60days, it depends the types of machines.
We send our engineers to customer for installation and training, the time around 20-40days, it depends different kinds machines. Salary is 100USD/Day.
We are the original factory. We are more strict about our brand and machine quality.
We can provide the low cost of spare parts to our customer, and faster after-sales response.
