Carbonated Beverage Cans Line
CHOOSE YOUR SOLUTION
Carbonated Beverage Cans Line

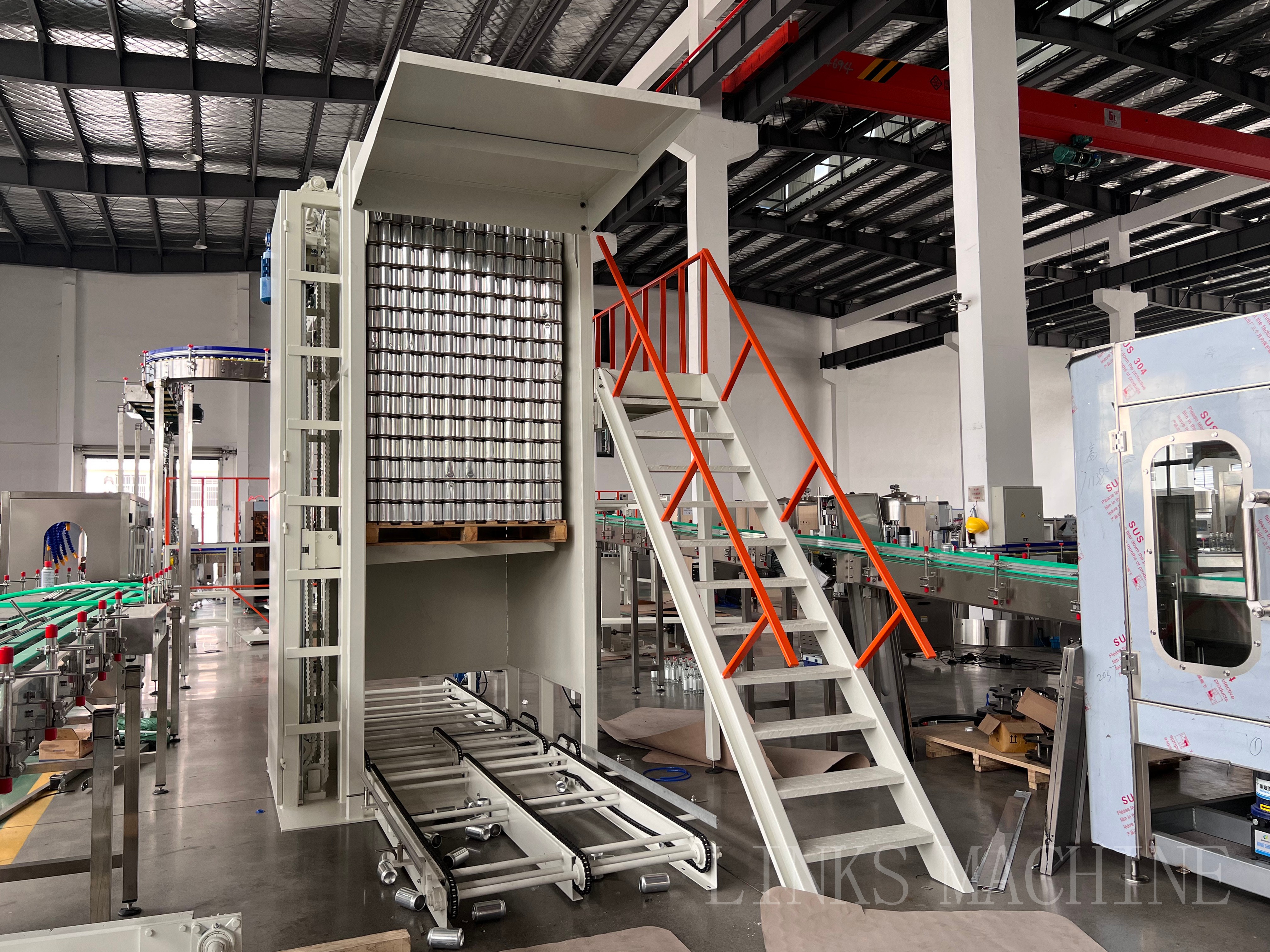

The machine rises and falls by electric eye induction automatic control layered rise, automatic positioning, tank by electric eye control automatic out of the tank. The diaphragm cardboard of each layer can be extracted manually. Empty pallets are automatically stacked.
| Component | Description |
|---|---|
| 1.Foot-operated platform conveyor chain | Foot into the tank platform conveyor chain, can be ready to place two packaging body. Carbon steel structure. |
| 2.Layered unloading tank host room | Frame carbon steel structure, three-sided motherboard for 2.0mm thick stainless steel plate. |

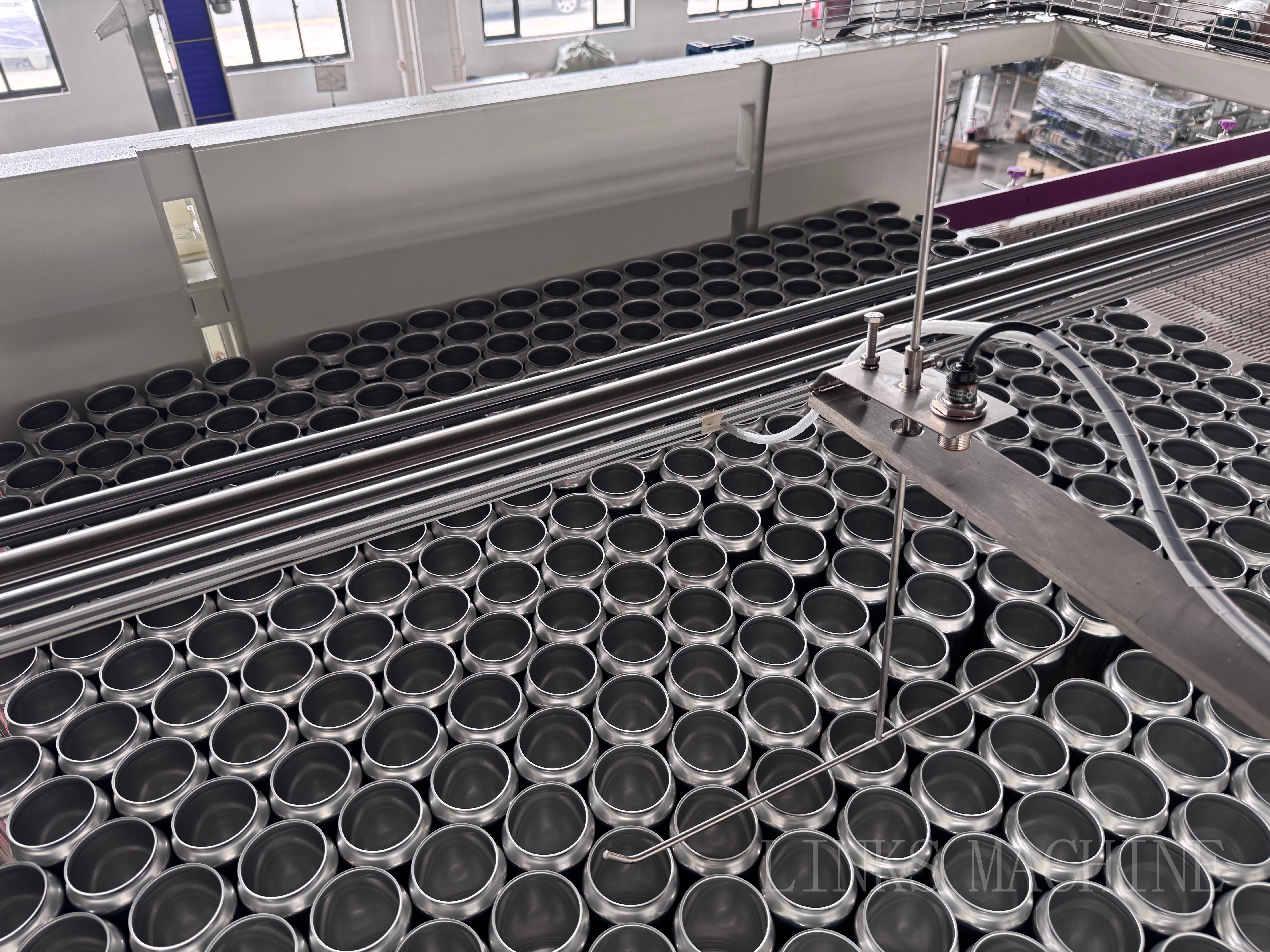

| 3.Discharge tank | Discharge tank host indoor short conveyor chain. |
| 4.Out of the tank conveyor platform | 2.5 meters high, 1.2 meters wide, 3 meters long. Carbon steel structure, high-quality plastic steel mesh chain. |
| 5.Stack plate Board conveyor chain and pneumatic lifting automatic folding machine | Carbon steel structure. |
| 6.Self-locking tank lifting system | Carbon steel structure. |
| 7.Cardboard placement platform | Carbon steel structure. |
| 8.Wide elevated pedestrian platform and stepping ladder | Carbon steel structure. |
Scope of application: metal wide tank for vertical drop while water spraying

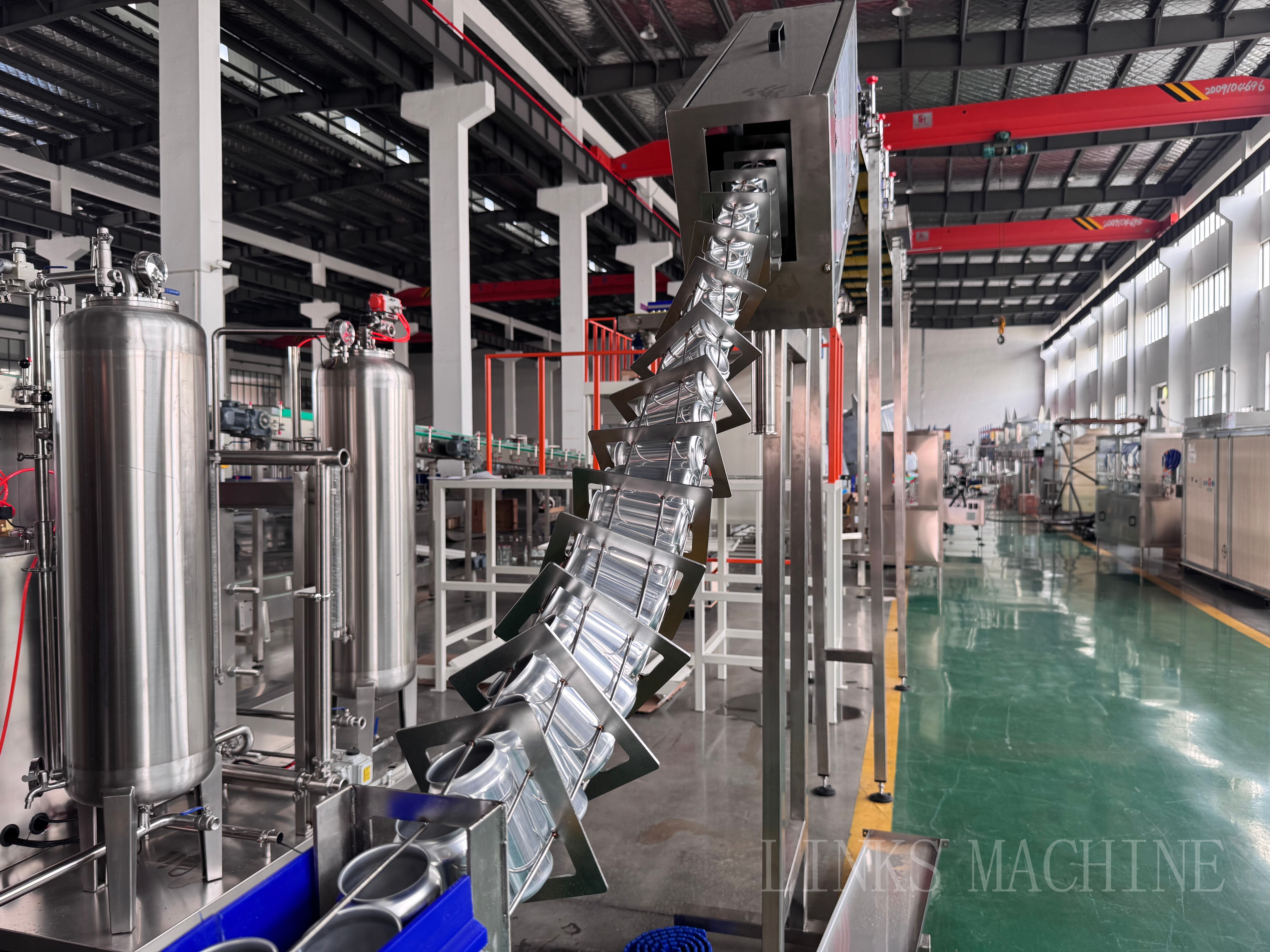

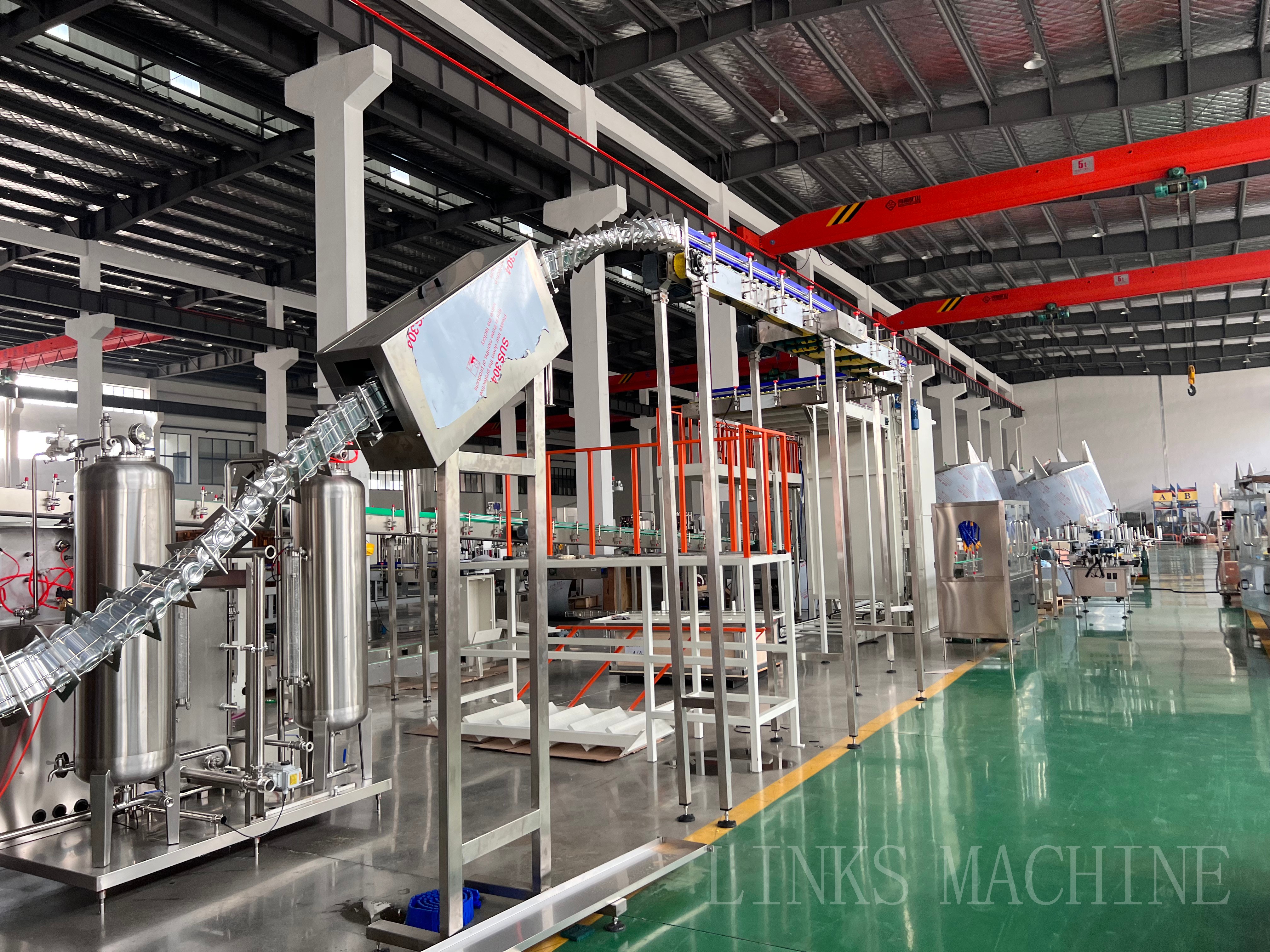

Characteristics：The machine is composed of a box slide rail and a spraying device, etc. The empty can is composed of the upper part of the tank body and the lower part of the tank body. When the first part passes through the slide rail, the empty can is inverted. In the second part, the spraying device continuously sprays out sterile water to flush the empty can. The empty can in the third section is drained in the slide rail; In the fourth section, the empty can is returned to the top of the tank mouth through the sliding rail and sent to the filling machine into the tank conveyor belt.
| Component | Description |
|---|---|
| 1.Spraying tank | SS structure |
| 2.stainless steel hot water pipe interface | Built-in stainless steel spray pipe, and reserved stainless steel hot water pipe interface (the hot water source shall be provided separately by the buyer) |
| 3.stainless steel drain pipe interface | The stainless steel drainage pipe interface is reserved on the exterior. |
The washer with reasonable machine configuration, convenient adjustment, wide range adapting, consummate lubricating, beautiful shape.
All material meet the requirements of food hygiene, and the tube of departing water SETS adopted imported stainless steel quick connection-peg. Adopted wearable waterproof material POM, sealing parts adopted silica gel material, wearable and ozone-proof.
Spraying inside and outside of bottles, adopted imported cone spray nozzle, equipped down gathering water tray and above water tray in washing bottle area, equipped stainless steel shield in washing bottle area, preventing washed water spilling.
Bracket of bottle-holding gripper and turning section adopted stainless steel 304, which made by several working procedure, block of bottle-holding gripper adopted rubber model material, wear well.
| Component | Description |
|---|---|

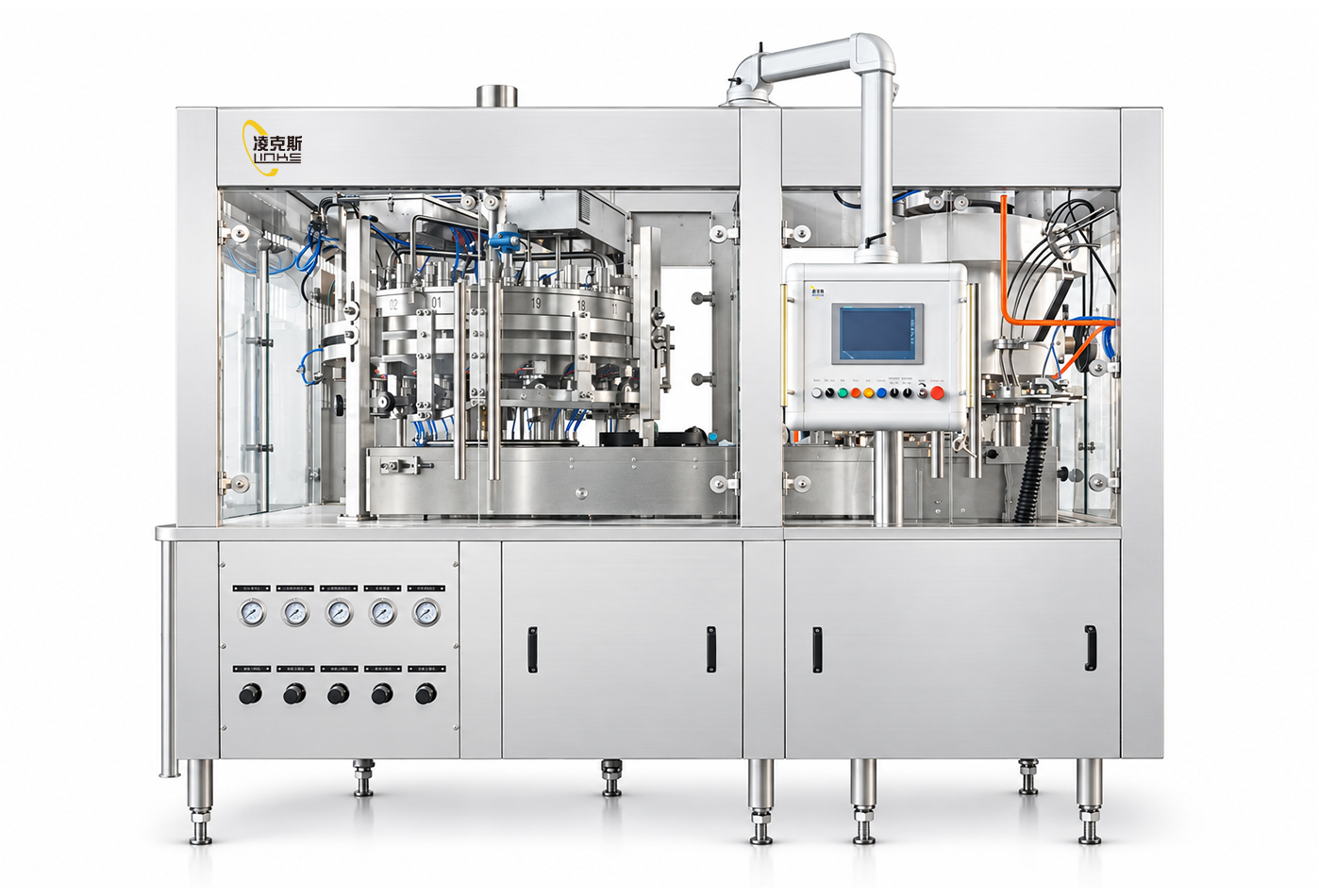

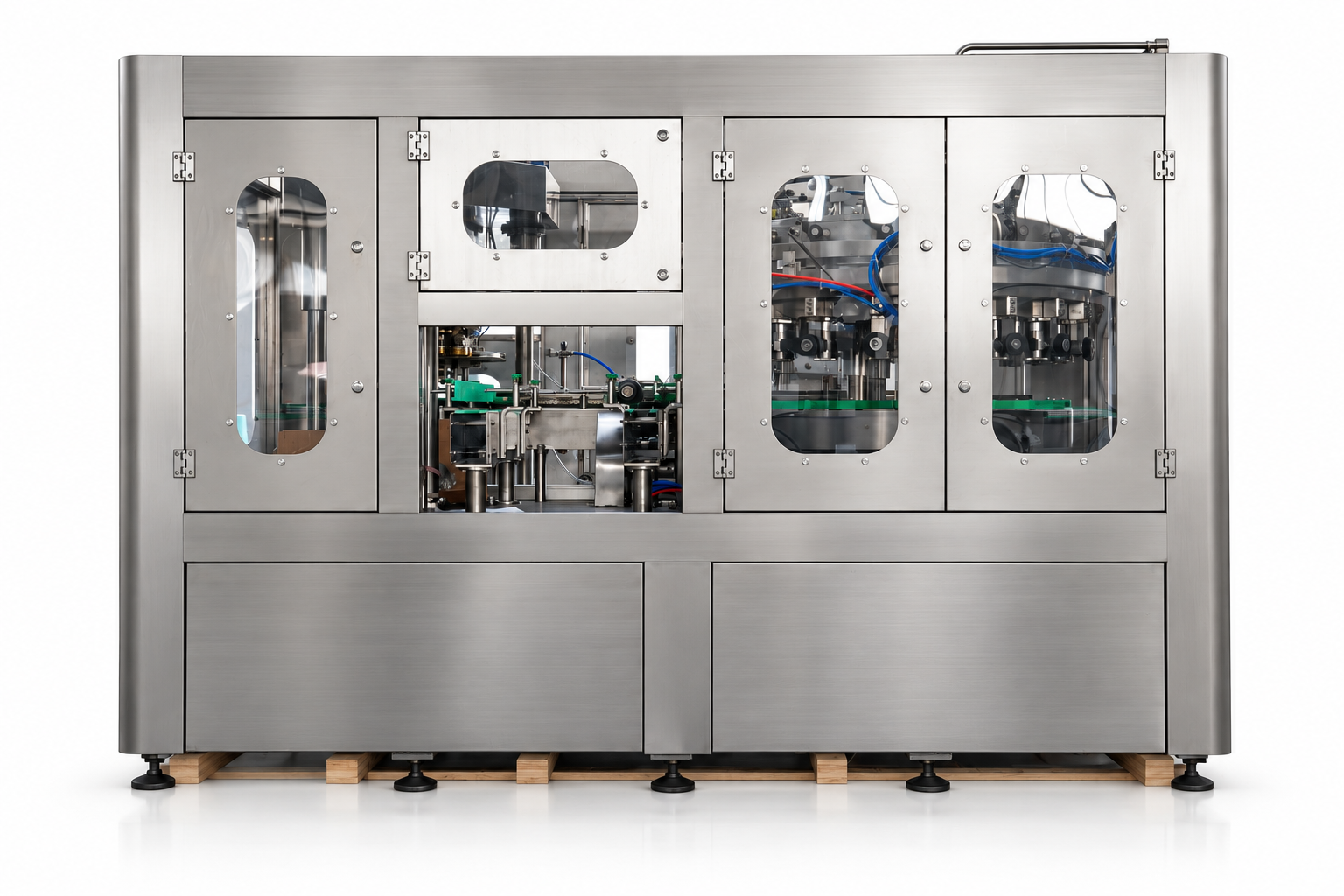

| Machine configuration | Filling machine contains turret part, material tank, filling valve, and control part. Machine height can be adjusted by the rack in machine bottom. Empty cans enter into conveyor belt , then by bottle screw and starwheel into filling valve. |
| Filling valve | Filling valve is piston filling type. Under filling valve is a turning valve to control fill or not. Fill or not finally determined by can entering into filling machine or not. No can, no filling. Also there is a proximity switch detects cans. Material level detects by material contactor and through magnetic valve to determine adding material or not. Two conditions in material tank: low level and high level. When machine works automatically and material level is low, then add material. When it reaches high level, stop. When customer need adjust filling height, rotating the handwheel in the inner part of the rack. |
| Transmission parts | The use of high-quality carbon steel production, after heat treatment processing wear-resistant, impact-resistant |
| Filling valve Parts | The use of high-quality stainless steel 304 material production, internal sealing ring using food grade PTFE production, to ensure the safety of the filling process |
| Barrel parts | The use of high-quality stainless steel 316 production, overall welding, polishing and grinding |
| Filling parts | Filling valve using 304 stainless steel production, sealing ring using food-grade materials production |
| Conveyor belt components | In and out of the tank conveyor side plate using high-quality 304 stainless steel material, chain plate quality for imported POM material |
