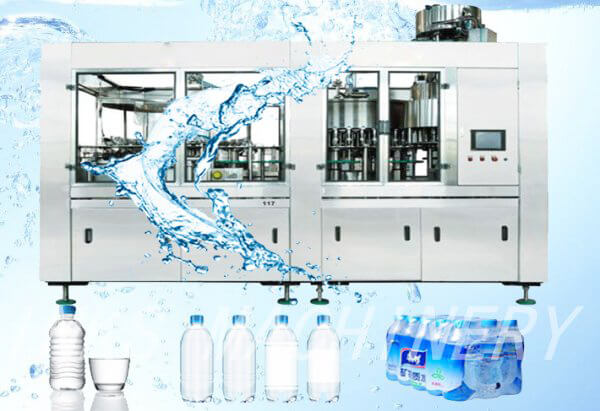

This machine is mainly used for washing, filling, capping non-carbonated drinks such as pure/mineral water.
The machine shorten the contact time of the drinks material and outside, increasing the sanitation condition productivity and economy benefit.
It adopts technology of air conveyor direct connect with bottle infeed starwheel instead of screw and conveyor. It is easier and more simple to change over bottle size.
Adopt neck handling technology to convey bottles. There is no need to adjust the height of equipment and only need to change some spare parts.
High speed filling line adopts bottle gripper conveying technology. It is free to change over bottle size and the working table inside the machine is more laconic.

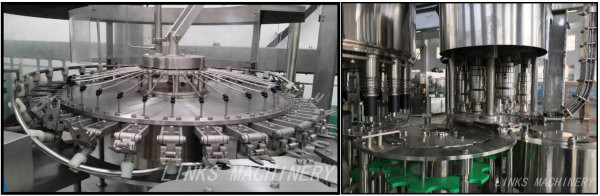

By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.

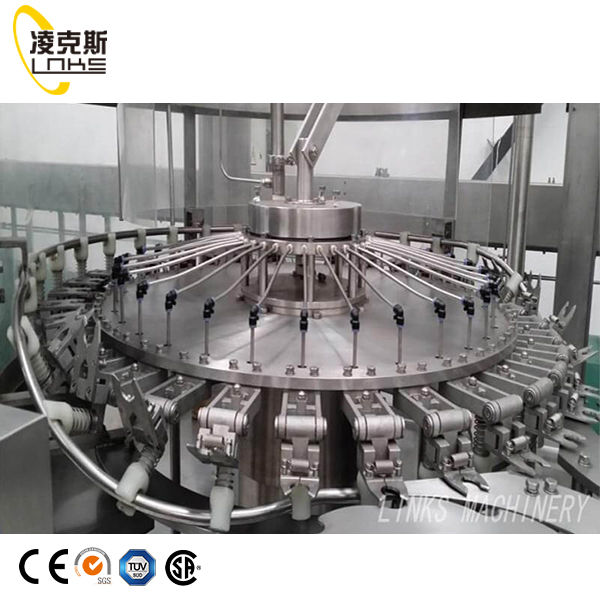

Specially designed stainless steel bottle gripper dose not contact the thread parts of the bottle neck, avoiding the second contamination.

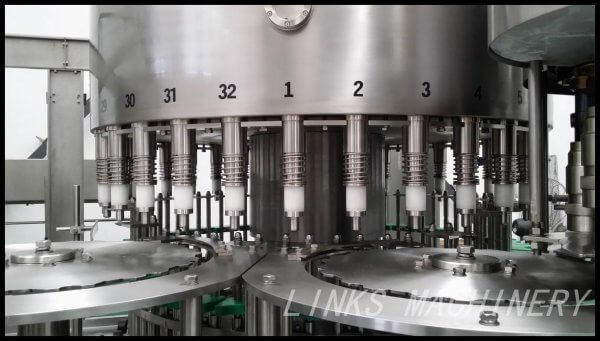

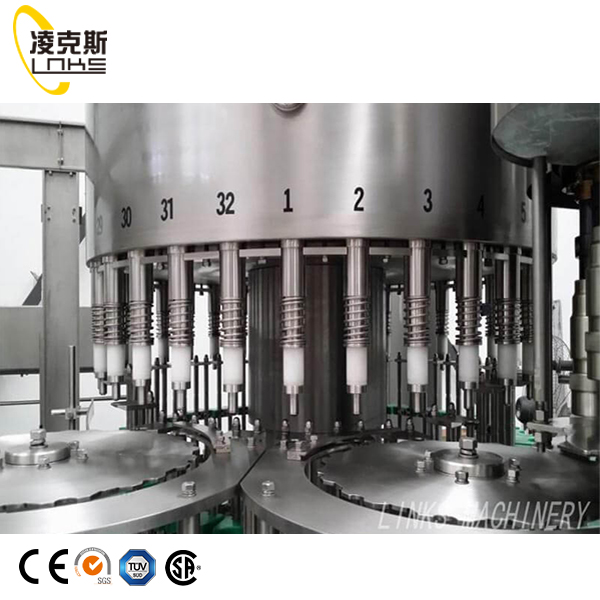

High speed and mass flow filling valve ensures the high filling speed and exact fluid level.

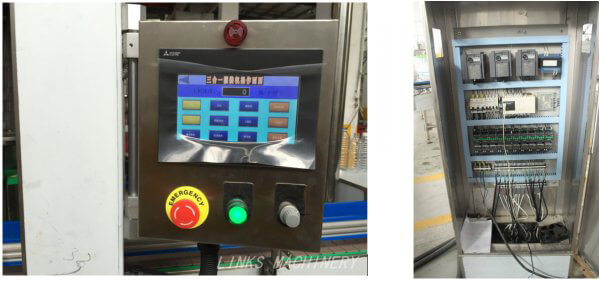

Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic. The electric system is from international brand and achieves the national food hygienic standard.
The bottle-out starwheel is helical structure. While changing over bottle size, it is no need to adjust bottle-out conveyor height.
|Number of washing positions||32|
|Number of filling positions||32|
|Number of capping positions||8|
|Capacity at 500ml bottles / hour||15,000bph|
|Suitable bottle volume||100-2000ml plastic bottle|
|Power of main motor (KW)||2.2|
|No.||Name of parts||Producing area|
|2||Low-pressure breaker||Siemens Germany|
|3||AC electromagnetic contractor||Siemens Germany|
|4||AC electromagnetic contractor||Siemens Germany|
|5||Heat-break device||Siemens Germany|
|6||Multi-continuous electrical device||Siemens Germany|
|7||Middle-continuous electrical device||Omron Japan|
|8||Inducing on-off||AUTONICS USA|
