This machine is suitable for oil, chemical liquid, bee honey, fruit concentrate, syrup…ect.
Capacity: 1200-4800BPH
Bottle volume from 500ml to 5000ml(max)

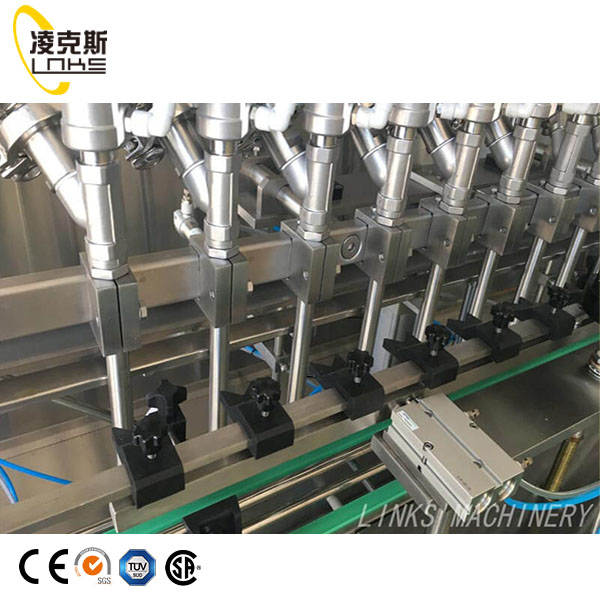

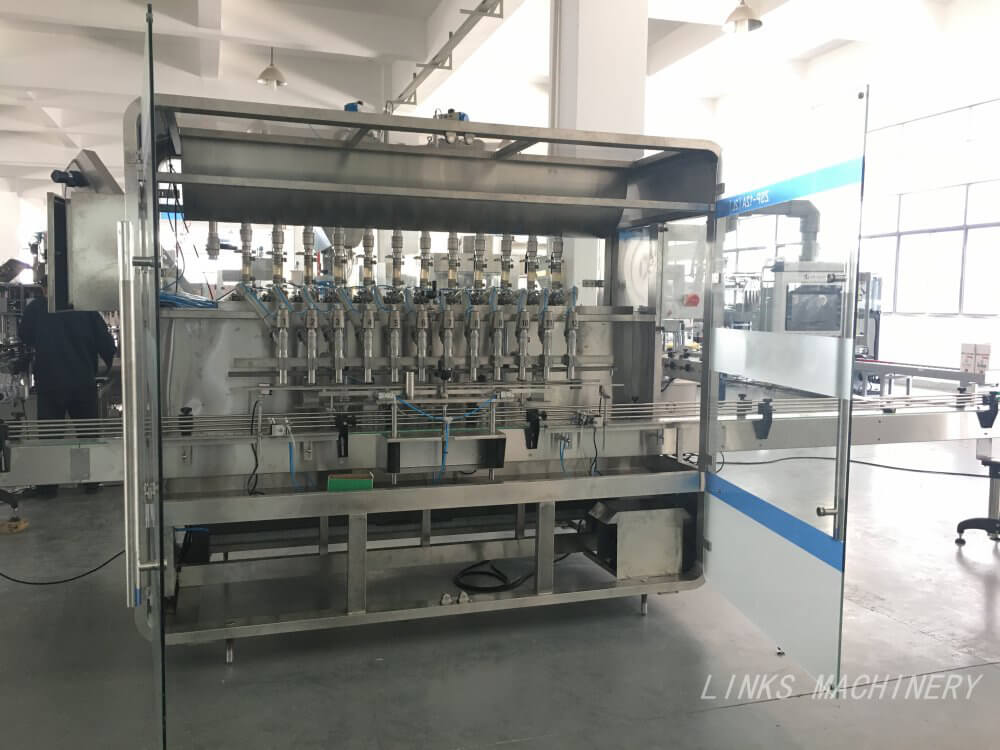

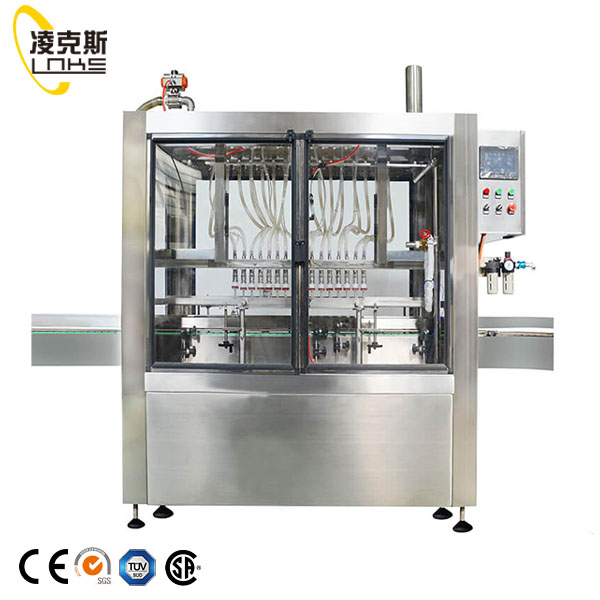

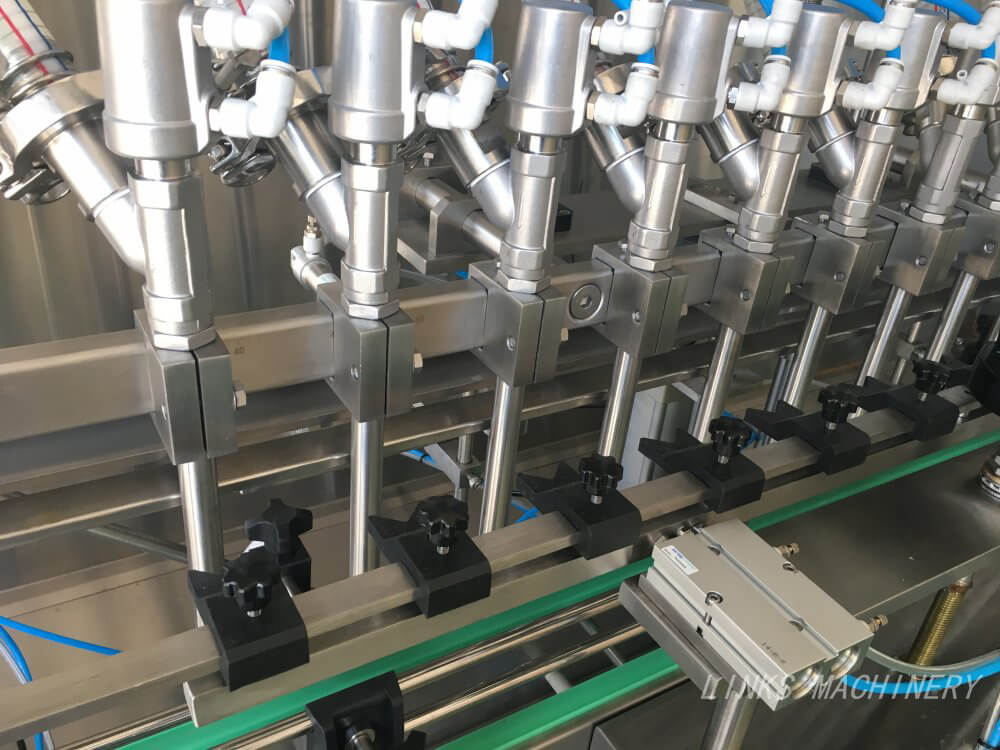

500-5000ml Automatic Oil&Chemical Liquid Filling Machine-Servo Type
This series filling machine is a high-tech filling equipment controlled by microcomputer PLC programmable, equip with photo electricity transduction and pneumatic action. Use servo motor control volume nsure measurement more accurate , and filling speed can variable, a show speed can be applied when close the target filling volume to prevent liquid spill out. This machine with high automatization , adjust convenient ,when change bottle size or replacing the filling volume ,only need change the parameters in the touch screen .Suits for packing of all kinds of viscous material which is vegetable oil 、honey 、jams、syrup、reparation、SC、machine oil and daily chemical products.
| No. | Model | Speed (500-5000ml) |
| 1 | LSP-5L-4 | 1200B/H |
| 2 | LSP-5L-6 | 1800B/H |
| 3 | LSP-5L-8 | 2400B/H |
| 4 | LSP-5L-10 | 3000B/H |
| 5 | LSP-5L-12 | 3600B/H |
| 6 | LSP-5L-16 | 4800B/H |
| No. | Name of parts | Producing area |
| 1 | Programmed controller | MitsubishiJapan |
| 2 | Low-pressure breaker | Siemens Germany |
| 3 | AC electromagnetic contractor | Siemens Germany |
| 4 | AC electromagnetic contractor | Siemens Germany |
| 5 | Heat-break device | Siemens Germany |
| 6 | Multi-continuous electrical device | Siemens Germany |
| 7 | Middle-continuous electrical device | Omron Japan |
| 8 | Inducing on-off | AUTONICS USA |
