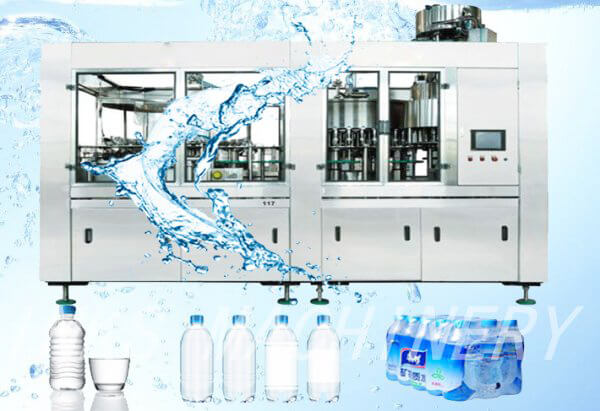

5000BPH Automatic Water Filling Machine (0.1-1.5L) 5000BPH Automatic Water Filling Machine (0.1-1.5L)

This machine is mainly used for washing, filling, capping non-carbonated drinks such as pure/mineral water.
The machine shorten the contact time of the drinks material and outside, increasing the sanitation condition productivity and economy benefit.
Speed 5000BPH

Quantity:
Share this:
  • Model: XGF14-12-5
  • Brand: LINKS MACHINERY
  • Code: 8422301090
  • Product Description


It adopts technology of air conveyor direct connect with bottle infeed starwheel instead of screw and conveyor. It is easier and more simple to change over bottle size.
Adopt neck handling technology to convey bottles. There is no need to adjust the height of equipment and only need to change some spare parts.
High speed filling line adopts bottle gripper conveying technology. It is free to change over bottle size and the working table inside the machine is more laconic.

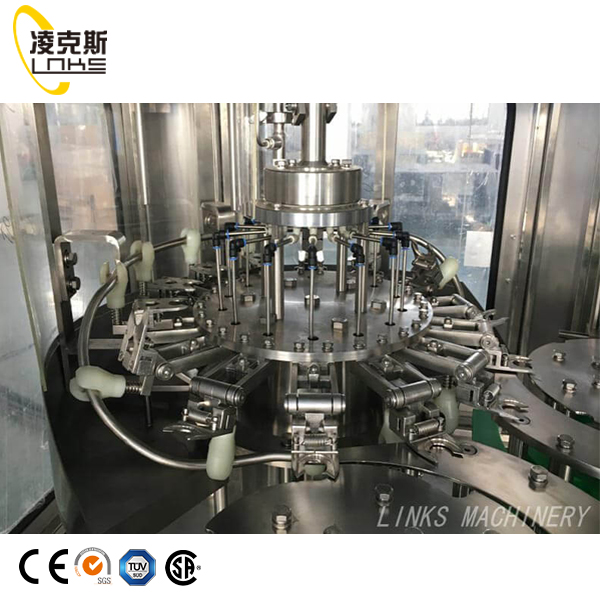

By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.
Specially designed stainless steel bottle gripper dose not contact the thread parts of the bottle neck, avoiding the second contamination.

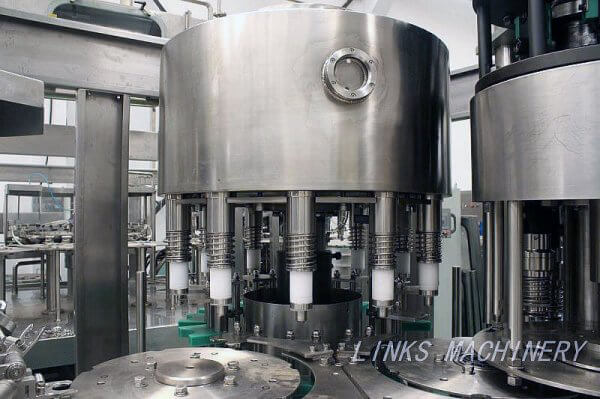

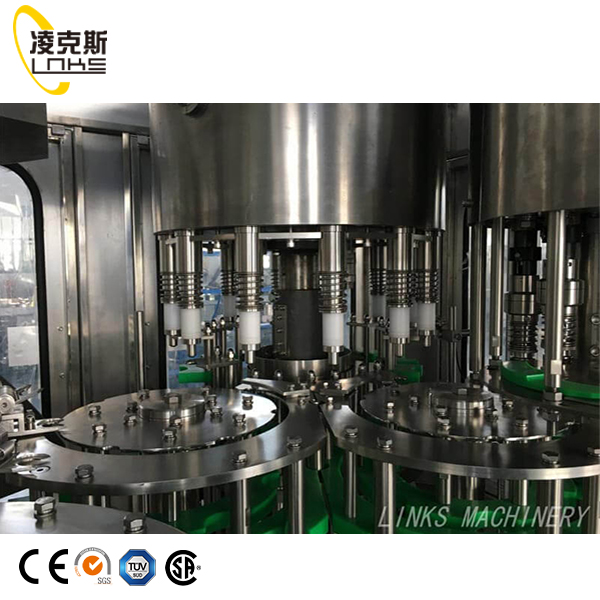

High speed and mass flow filling valve ensures the high filling speed and exact fluid level.

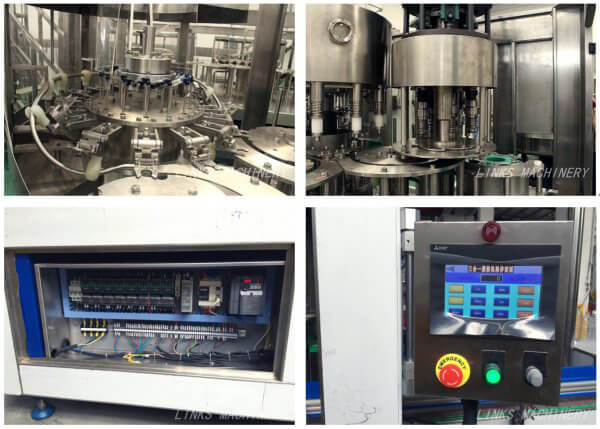

Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic. The electric system is from international brand and achieves the national food hygienic standard.
The bottle-out starwheel is helical structure. While changing over bottle size, it is no need to adjust bottle-out conveyor height.



Number of washing positions14
Number of filling positions12
Number of capping positions5
Capacity at 500ml bottles / hour5000bph
Suitable bottle volume100-1500ml plastic bottle
Power of main motor (KW)2.2
Shape dimension2360MM*1730MM*2250MM
Weight2800kg
Filling temperaturenormal



No.Name of partsProducing area
1Programmed controllerMitsubishiJapan
2Low-pressure breakerSiemens Germany
3AC electromagnetic contractorSiemens Germany
4AC electromagnetic contractorSiemens Germany
5Heat-break deviceSiemens Germany
6Multi-continuous electrical deviceSiemens Germany
7Middle-continuous electrical deviceOmron Japan
8Inducing on-offAUTONICS USA





1) Can your factory provide the whole plant from A to Z?

A: Yes, we can provide the complete plant, from bottling making plant, water purification plant, to filling packing plant.
2) How can I know the machinery quality before I order?

A: Frist, we will invite you visiting our factory to check the machines quality, and show the machines running for you in our factory.

3)What certificates you can provide?

A: Our factory provide the CE, SGS, ISO, and accroding to some countries, we also can provide the Pvoc, Coc, Soncap...ect

4)Can your factory make the bottle drawing, workshop layout, and labels for us?

A: We can help customers design their own bottle shape, workshop layout and label drawings, these jobs are free charge.
(Workshop need customer to provide the size of factory)
5)Installation and Training Time

A: We have professional engineer for oversea installaion and training, they can speak English, and have much experience oversea work.
Customer needs to provide the engineer visa, air tickets, sleep room and meals. Each day salary is 80usd, around 20-40days.

6) Warranty time:

We provide the 18 months as our machinery parts warranty time, and electric parts warranty time is 12 month.
