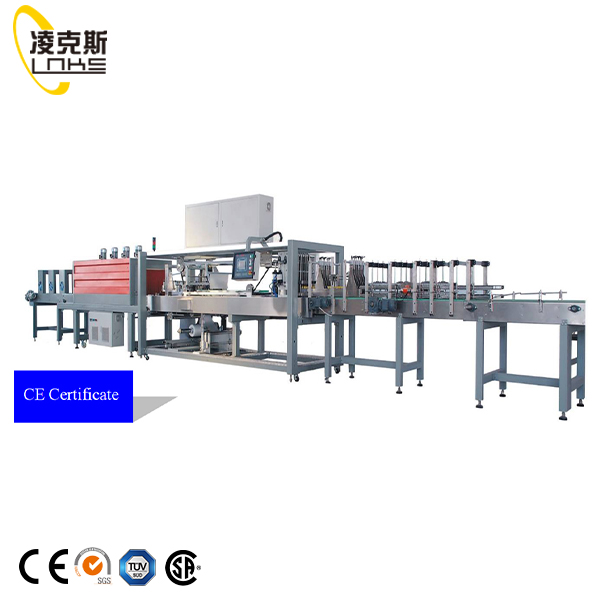

1.Simple and beautiful appearance, novel structure, unique and easy maintenance. Pneumatic expansion support film coil, electronic induction film transmission, smooth film delivery, fast and rapid film change. 2.Unique "Micro Vibration" bottle method (patented technology), can make the product smooth division, to avoid the phenomenon of squeezing bottles.
Technical data
Working voltage：3P 5 wires 380V/50Hz
Control voltage：DC24V
Compressed air： Pressure 0.6～0.8Mpa （No oil, no water）
Compressed air consumption：100—120 NL/min
Air tube connected hole：Φ10
Capacity：35-38 Bags/Min (Stable)

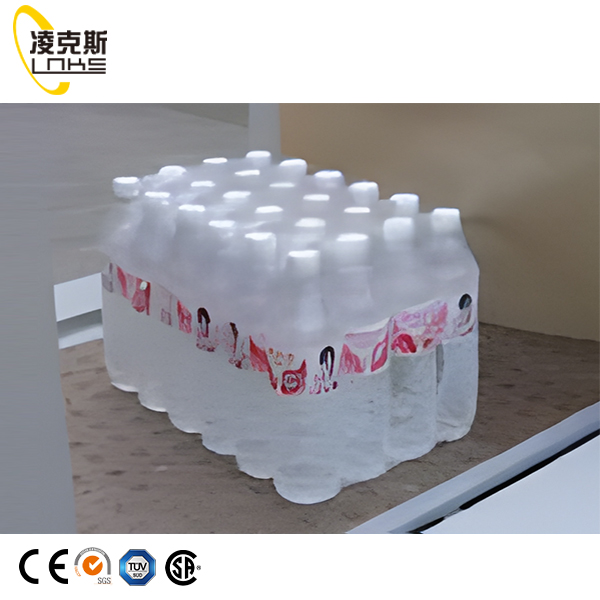

Packing Type: 4*6, for 330ML
Shrink tunnel：L×W×H=2500×700×450(mm)
Shrink temp.：160℃～230℃
Packing material：LDPE
Membrane roller width：≤580MM
Membrane width：0.07～0.10MM
Membrane roller width：≤350MM
Membrane axis diameter：76MM
Noise：≤65dB
Power：48Kw
Weight：450Kkgs
Main characteristics
1. Simple and beautiful appearance, novel structure, unique and easy maintenance. Pneumatic expansion support film coil, electronic induction film transmission, smooth film delivery, fast and rapid film change.
2. Unique "Micro Vibration" bottle method (patented technology), can make the product smooth division, to avoid the phenomenon of squeezing bottles.
3. Into the carton conveyor belt and the host than the peer length of 1.6 meters, conducive to the bottle sorting, effectively increase the number of membrane rod, reduce the line speed of the transmission chain, increase the resistance of the equipment.
4. The shrinkage chamber adopts the unique circulating air supply technology, realizes the multi-directional air volume control technology, the outlet position adjustable, greatly improves the shrinkage effect.
5. The shrinkage chamber adopts the newly developed lateral opening structure, which is convenient for maintenance, thickening insulation layer, good energy saving effect and high temperature control precision.
6. Electrical configuration: More than 90% of the electrical components of the whole machine for the import of high-quality brands, after more than 20 years of optimal configuration, stable and reliable.
7. The whole machine uses energy-saving technology design, saving 30% of power loss, low carbon, and environmental protection.
Machine configuration
YCBS40 | Origin | Brand |
Servo motor and controller system | Austria | B&R |
PLC | Austria | B&R |
Touch-screen | Austria | B&R |
Frequency adjustor | France | Schneider |
Proximity switch/photoelectric switch | Germany | Leuze |
Film-Rising Cylinder | Germany | FESTO |
Contactor | Germany | Siemens |
Buttern | China | TAYEE |
Air switch | China | Delixi |
Relay | France | Schneider |
Conveyor motor | Germany | SEW |
