Automatic Juice Washing Filling Capping Machine Automatic Juice Washing Filling Capping Machine

The washer with reasonable machine configuration, convenient adjustment, wide range adapting, consummate lubricating, beautiful shape. All material meets the requirements of food hygiene, and the tube of departing water SETS adopted imported stainless-steel quick connection-peg. Adopted wearable waterproof material POM, sealing parts adopted silica gel material, wearable and ozone-proof.

Quantity:
Share this:
  • Brand: LINKS MACHINERY
  • Code: 8422301090
  • Product Description

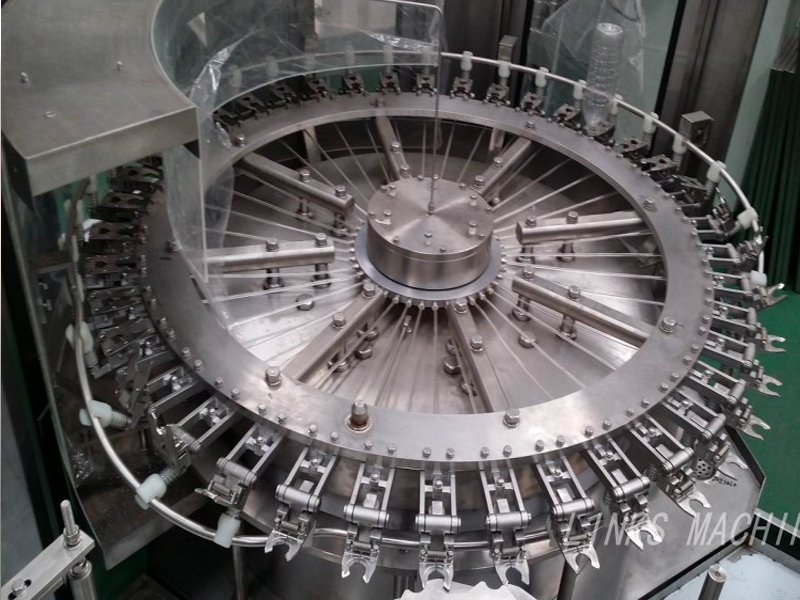

Juice Washing Section

The washer with reasonable machine configuration, convenient adjustment, wide range adapting, consummate lubricating, beautiful shape.

All material meets the requirements of food hygiene, and the tube of departing water SETS adopted imported stainless-steel quick connection-peg. Adopted wearable waterproof material POM, sealing parts adopted silica gel material, wearable and ozone-proof.

Spraying inside and outside of bottles, adopted imported cone spray nozzle, equipped down gathering water tray and above water tray in washing bottle area, equipped stainless steel shield in washing bottle area, preventing washed water spilling.

Bracket of bottle-holding gripper and turning section adopted stainless steel 304, which made by several working procedure, block of bottle-holding gripper adopted rubber model material, wear well.

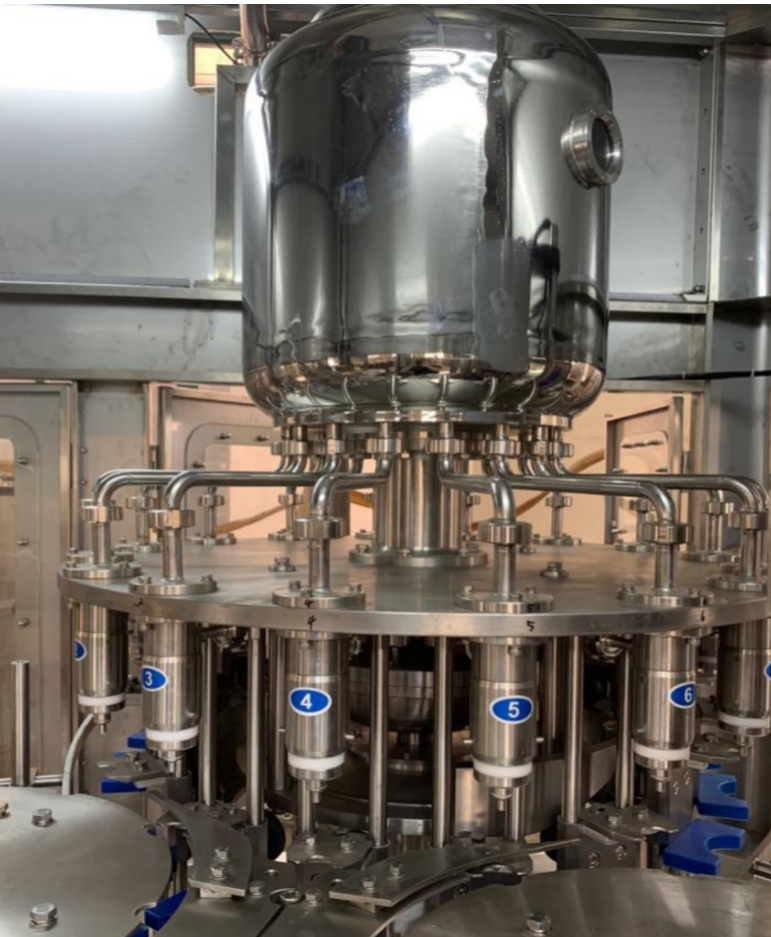

Juice Filling Section

Products by the liquid line into the bucket;

By the star wheel into the filling machine, hold the bottleneck, rotate with filling machine, etc, and in accordance with the guide rail up to open the filling valve;

Products under the action of gravity, flows through the filling valve for filling the bottle, and keep the liquid level;

After entering forecast drop bottle let stand area, the bottle with holding bottom facility down a certain height, make the bottle from the filling valve, filling valve to close, filling valve exhaust pipe of products under the gravity, the flow back to the bottle;

The Last Lifting device with the bottle fell to a height of star wheel clamp, derived by the star wheel will bottle.

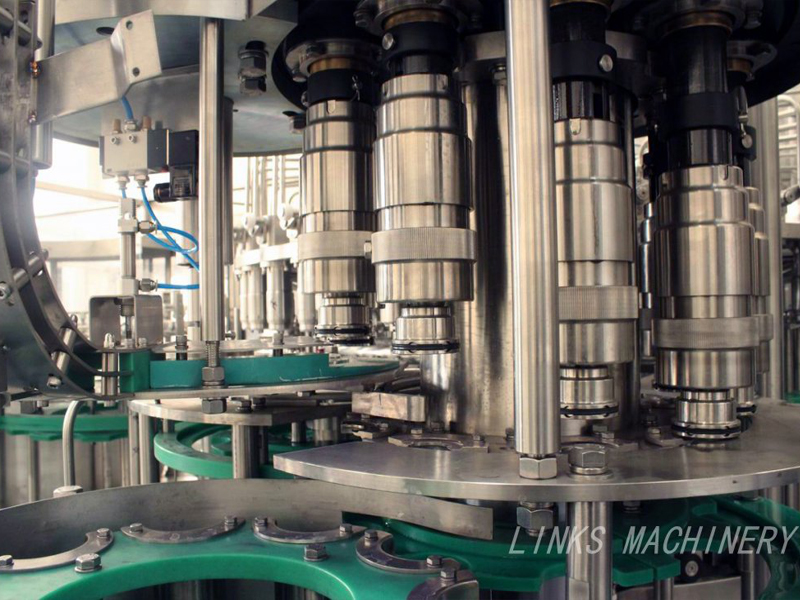

Juice Capping Section

1) Introduce most advanced cap sealing technology called France “ZALKIN ". With the help of expert from institute of electromechanics and mechanical engineering of Shanghai Communications University, we successfully designed. For example: I) the screwing capping head cam (the main parts which can assure the machine run stationarity), while adopting “ZALKIN” technology, the expert improve the authenticity and stability of the machine focused on dynamics and kinematics. II) Screwing capping head (the main parts which can assure the capping quality), the expert improve the design of magnetic steel, this improvement can reduce the defective rate of capping better and the traditional character of easy to set and adjust the torque of screwing capping head.

2) The screwing capping head is dual-purpose design; it is suitable for flat cap and sport cap.

3) The device which can take out the reverse cap and prevent the reverse cap passing is settled in the cap-falling guide.

4) A group of photoelectric switches are settled on cap-falling guide. The machine will stop when there is no cap on the guide.

5) A bottle inlet detect switch is settled on the screwing capper.

6) There is a cap-lock cylinder in the joint between the cap-falling guide and poking cap plate. It is realize that no feeding no cap.
