The equipment is self-service positioning, PLC control, fully automatic operation, the main rotation is driven by servo motor, and the rotation of each stage is controlled by chain and sprocket. Its high degree of automation, reliable control, simple adjustment, intelligent operation, etc., can be widely used in beverage, beer, chemical, food, pharmaceutical and other industries, can be used for secondary packaging of various types of bottles, and with automatic filling production line use.
echnical Parameters

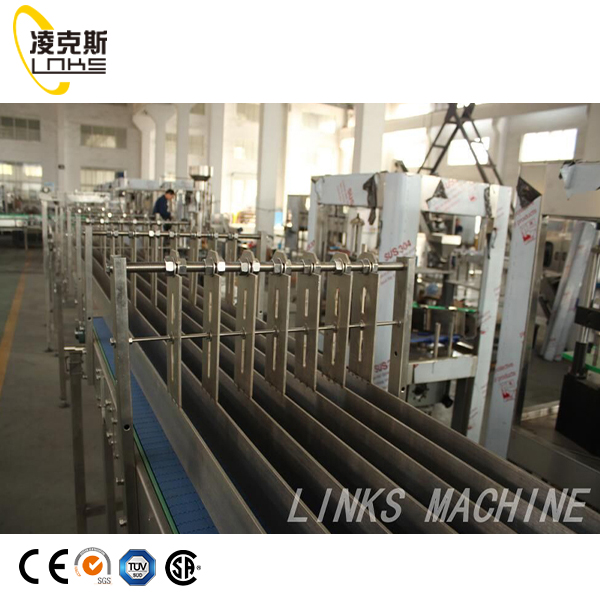

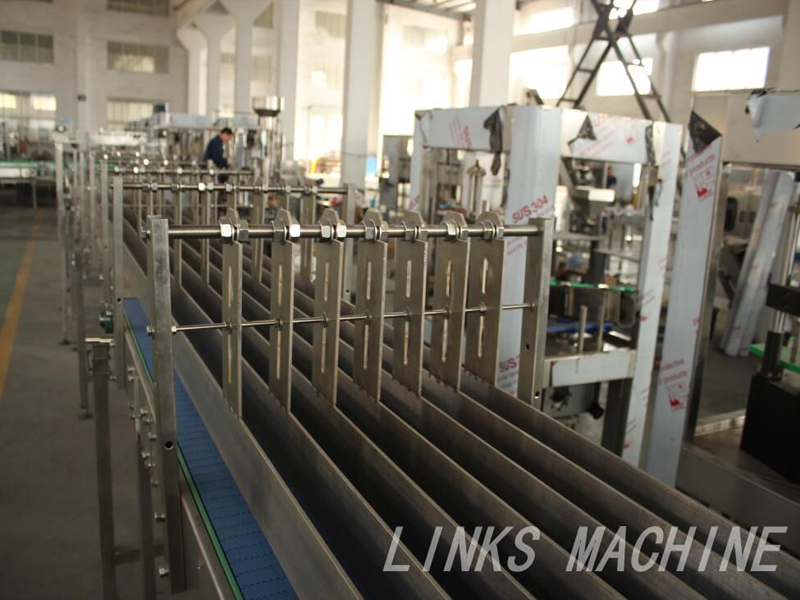

The Basic Situation and Requirements of the Equipment
The equipment is self-service positioning, PLC control, fully automatic operation, the main rotation is driven by servo motor, and the rotation of each stage is controlled by chain and sprocket. Its high degree of automation, reliable control, simple adjustment, intelligent operation, etc., can be widely used in beverage, beer, chemical, food, pharmaceutical and other industries, can be used for secondary packaging of various types of bottles, and with automatic filling production line use.
This machine adopts high quality stainless steel and aluminum, electrical appliances, and the starting system adopts imported components, such as Yadak cylinder and starting original. The equipment has low failure rate, low maintenance and high reliability.
The Main Parameters
Actual production capacity: 10 boxes per minute;
Rated power: 13KW
Use power: three-phase, 380V, 50Hz;
Control power supply: 24V DV
Compressed air: 1500L/min, 0.6-0.8MPA

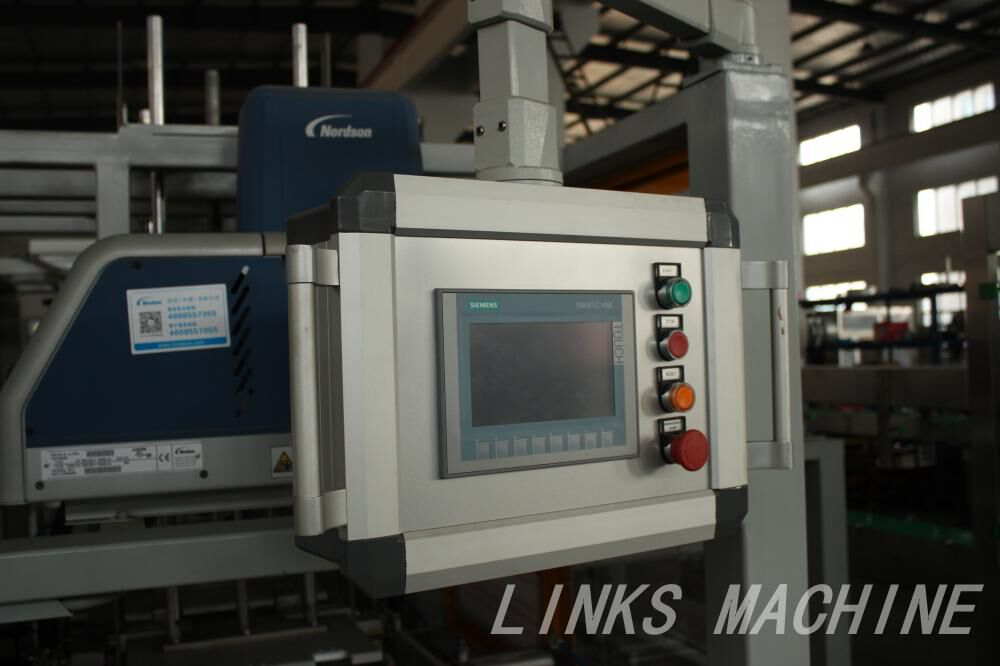

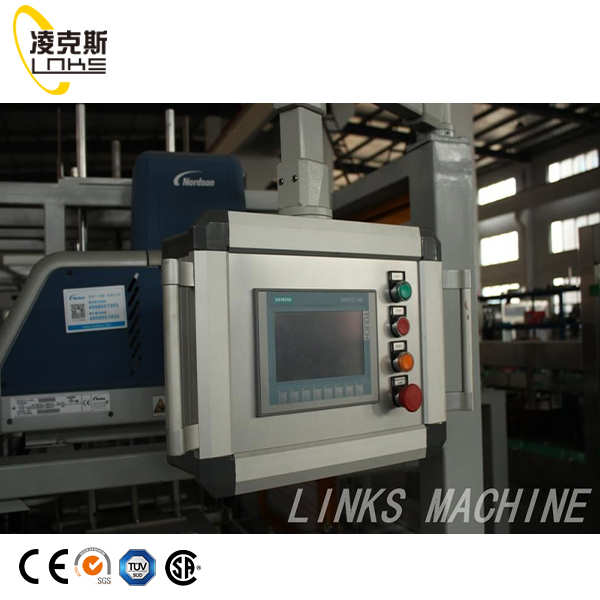

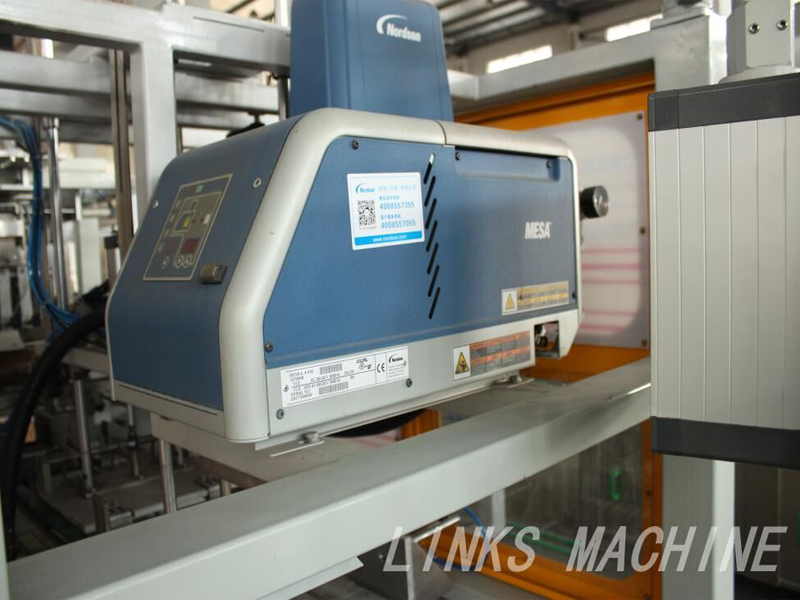

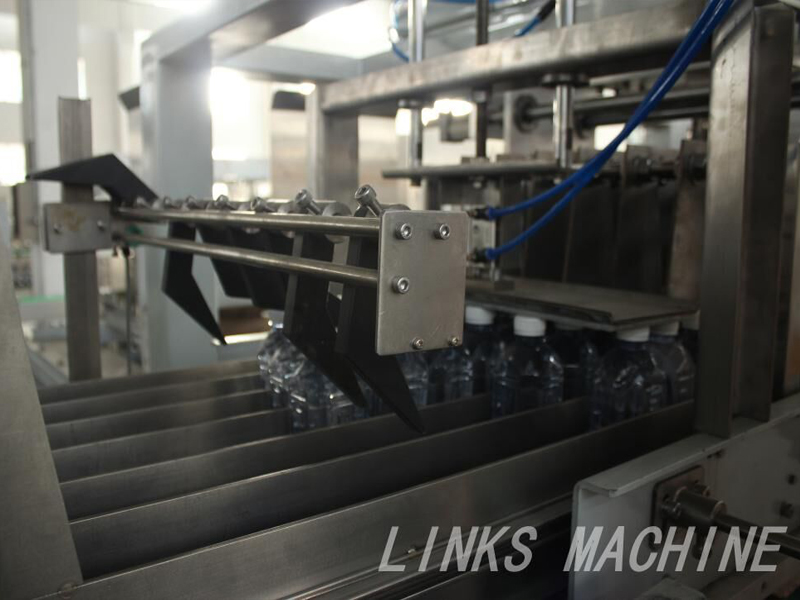

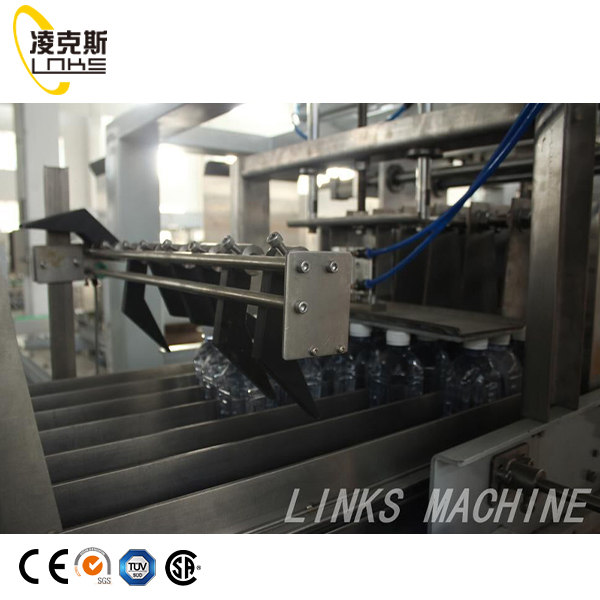

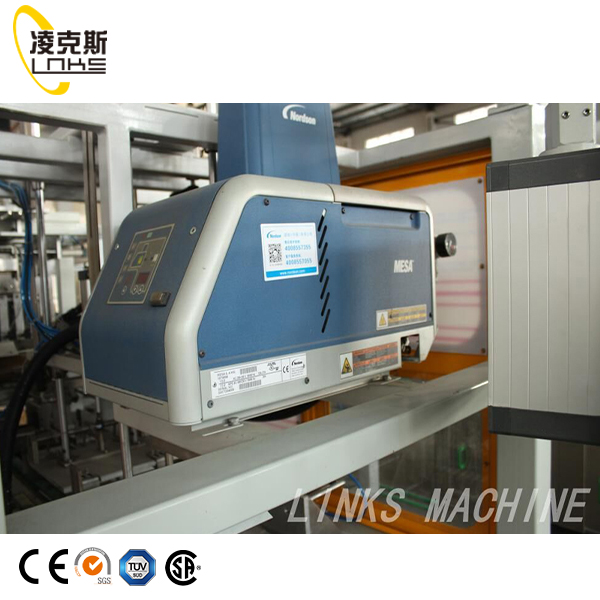

Hot melt adhesive curing time: 1.5-2S
Machine weight: 4000KG
Dimensions: L6285*W2582*H2115MM
Bottle size: L3000*W620*1200MM
Package product dimensions: Length 350-450, Width 230-330mm, Hieght: 85-320mm;
Bottle diameter: D55-108MM
Cardboard requirements: in line with national standard GB/T6544-2008
Facility name | Carton Package Machine | Power Supply | 380V,three-phase |
Production capacity | 15 pack/ minute | Power supply | 220V AC |
Product package qualified ratio | >99.8% | Controlling voltage | 24V DC |
Hot glue solidify time | ≤1.5-2S | Main machine power | 13KW |
Facility weight | 4T | Gas consumption quantity | 1500 L/min |
Machine overall size | 6285*2582*2115 | Compressor air requirement | 0.6~0.8MPa |
Bottle enter size | 3000*620*1200 | Package product overall size | (350-450) Length (200-330) Width (85-320) Height mm |
Noise | 85dB | Circumstance temperature requirement | 0—45℃ |
Circumstance humidity requirement | Usually below 75%RH | Workshop requirement condition | Firm foundation |
Facility collocate requirement | Dry, anti-dust, good ventilation good condition | ||
Cardboard specific requirement | a. Material: corrugate, used carton is three-layer, surface is white 250gram/sm,middle is high strength 150gram/sm. Bottom is cow cardboard 280g/sm; b. carton each layer not allow have layering phenomenon , leatheroid thickness ≥3mm c. carton indentation thread thickness is moderate, width is not bigger than 2mm |
