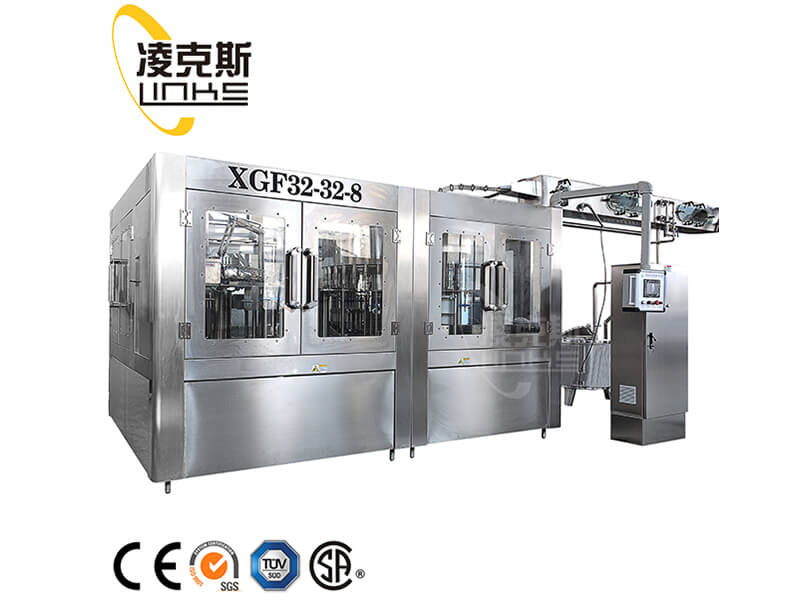

Comprehensive understanding of three-in-one filling machine

Views: 371 Author: Site Editor Publish Time: Origin: Site

The bottles of the automatic beverage filling machine are conveyed through the air duct, and then conveyed to the washing machine of the three-in-one machine through the bottle star wheel. The rotary plate of the bottle washing machine is equipped with a bottle clamp, and the bottle clamp clamps the bottle mouth and turns 180° along a guide rail to make the bottle mouth downward. In a specific area of ​​the bottle washer, the nozzle of the bottle rinser sprays bottle-rinsing water to rinse the inner wall of the bottle. After the bottle is rinsed and drained, the bottle is clamped by the bottle clamp and then turned over 180° along the guide rail, so that the bottle mouth is upward.


The washed bottles are exported from the bottle washing machine through the bottle star wheel and transferred to the filling machine. The bottle that enters the filling machine is caught by the bottleneck support plate and lifts the bottle under the action of the cam, and then the filling valve is pushed open by the bottle mouth. Filling adopts gravity filling method. After the filling valve is opened, the material passes through the filling valve to complete the filling process. After filling, the bottle mouth drops to leave the filling valve, and the bottle enters the capping machine through the bottleneck transition dial. The anti-rotation knife on the capping machine jams the bottleneck to keep the bottle upright and prevent it from rotating. The capping head keeps revolving and rotating on the capping machine, and realizes the actions of capping, capping, capping, and capping under the action of the cam to complete the entire capping process. The finished bottles are conveyed from the capping machine to the bottle conveying chain through the bottle discharging dial wheel, and the three-in-one machine is conveyed by the conveying chain.

For the food industry, its better development is inseparable from the three-in-one filling machine and filling production line. With the three-in-one filling machine, the food industry can not only better ensure product quality, but also better improve the production efficiency of the enterprise.

It is very important to pay attention to the operation before and after the use of the three-in-one filling machine. This is the key to the installation, debugging, use and maintenance of the filling machine. This is about the quality of the filling machine manufacturer and the efficiency of the basic work.

The three-in-one filling machine is an improved design of the beverage filling machine, and some additional functions have been added. Make the product easier and more convenient in terms of operation, accuracy error, installation adjustment, equipment cleaning, maintenance and so on. It is widely used in various industries such as daily chemical and grease, and can be used for filling different high-viscosity fluids. The machine has a compact and reasonable design, a simple and beautiful appearance, and easy adjustment of the filling volume.
