15000BPH Drinking Water 3-1 Washing-Filling-Capping Machine 15000BPH Drinking Water 3-1 Washing-Filling-Capping Machine

This machine is mainly used for washing, filling, capping non-carbonated drinks such as pure/mineral water.
The machine shorten the contact time of the drinks material and outside, increasing the sanitation condition productivity and economy benefit.
Speed 15,000BPH

Quantity:
Share this:
  • Model:XGF32-32-10
  • Brand:LINKS MACHINE
  • Code:8422301090
  • Product Description

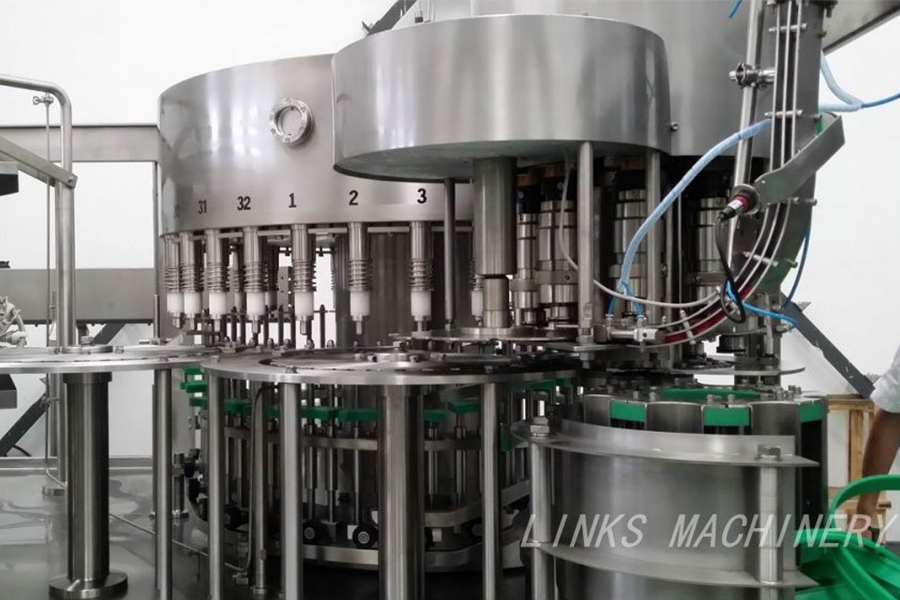

15000BPH Drinking Water 3-1 Washing-Filling-Capping Machine

15000-1

Description

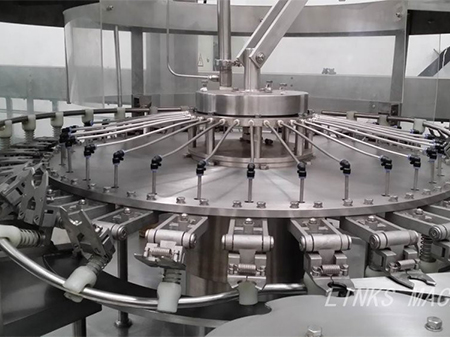

Washing station

·Adopts SS304/316 Material.

·Using the reversal bottles washing type, bottle clamp stuck bottleneck, avoid the traditional bottle on rubber clip to block the bottle thread parts maybe caused by the pollution.

·Bottle clamp and lifting mechanism of sliding sleeve adopts Germany igus corrosion resistant bearing no need maintenance Adopt special design outsider bottle washing

15000-2
15000-3

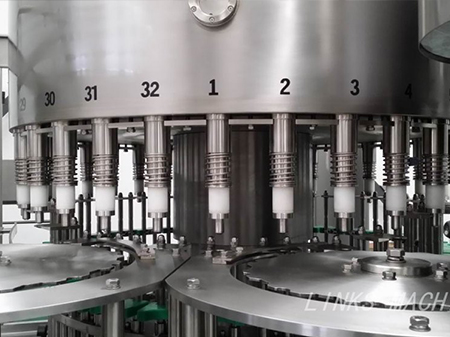

Filling Station

·Adopts SS304/316 Material.

·All parts using CNC machining center equipment. Improve the machining accuracy at the same time, ensure good interchangeability of parts.

·All filling valve sealing materials using ozone resistance, corrosion-resistant sealing ring. All contact with the logistics part of health materials.

·By filling machine lifting device, can do liquid level height adjustable.

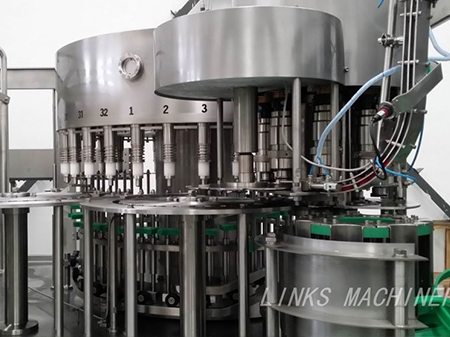

Capping station

·Adopts SS304/316 Material.

·Uses the technology of Arol from Italy, most advance technology in the world, developed with the experience of asepsis filling machine

·Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism.

·Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.

·The capper is equipped with inlet bottle detection switch.

Centrifugal way of cap arranging is adopted to reduce damage of caps.

15000-4

Technical Parameter / Electric Brands

Name of partsBrand
Frequency converter (Inverter)Siemens
PLC ControlSiemens
Touch screenSiemens
ContactorSiemens
Hot relaySiemens
Air switchSiemens
Approaching switchGermany SICK
Photoelectric switchGermany SICK
Pneumatic componentsAir Tac
MotorABB
PumpCNP
ModelXGF14-12-5
Number of washing positions32
Number of filling positions32
Number of capping positions10
Capacity at 500ml bottles / hour15000bph
Suitable bottle height (mm)160-340
Suitable bottle diameter (mm)¢50-¢90
Power of main motor (KW)6.0
Water pressure (Mpa)0.25-0.3Mpa
Shape dimension3960MM*1930MM*2250MM
Weight5600kg
Filling temperatureNormal temperature

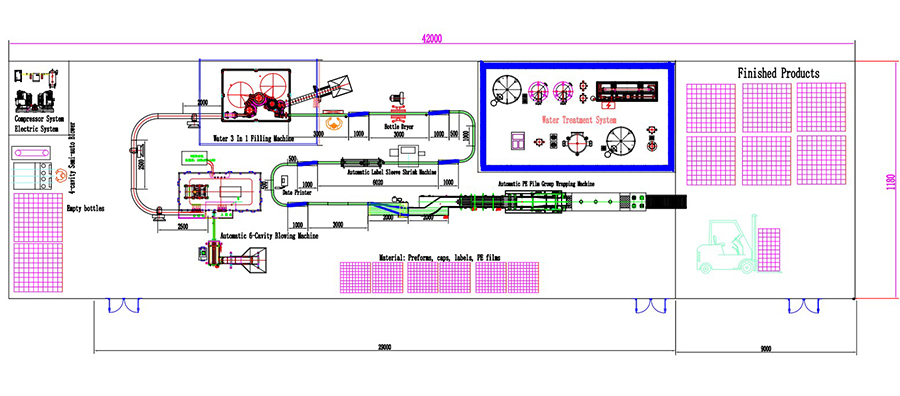

Layout as reference

15000-5

WATER PURIFICATION SYSTEM

1. Raw Water Tank—Water Pump—Silica Sand FilterAll parts adopts Stainless Steel 304 food grade(SS316L as option).
2. Active Carbon FilterOnline type pressure auto self-protection device
3. Na+ Ion Exchanger FilterOnline type electricity indicator
4. Precision Filter (5um &1 um)Online conductivity display
5. Reverse OsmosisBack washing system
6. Ozone & UV sterilizer—Final Water Tank—Water PumpFault alarm display

OTHER NECESSARY ACCESSORY MACHINES ON THE FILLING LINE

PET Bottle Blow Molding Machine

This machine is use for kinds of different shape bottles(PET), widely use for different area, beverage, water, sparkling drinks, wine, beer…etc.

Semi-auto bottle blower: need workers to operate on the machine, speed slow, small investment.

Auto bottle blower: automatic operation, high level of automation, suitable for middle and high speed production plant.

Bottle Labeling Machine

Normally has 3 type labels:

·Sleeve Label Shrink Machine: Most for PVC and PET material.

·Hot Melt Labeling Machine: For OPP material

·Adhesive Labeling Machine: For plastic/paper material

Bottle Packing Machine

Normally has 3 types packing way:

·PE Film Shrink Wrapping Machine: use PE Film as material.

·Half Tray Shrink Packing Machine: use half tray and PE film as material.

·Caron Packing Machine: use carton as material

Packing & Delivery

FAQ

What’s the warranty of the machine?

18 months for machinery parts; 12 months for electric parts.

Do you provide the spare parts.

We provide the 1 year easy broken spare parts for customer together with the machine delivery.

During the warranty time, we provide the free-charge spare parts.

What is the delivery time?

Normally, our delivery time is 45-60days, it depends the types of machines.

How to install and cost?

We send our engineers to customer for installation and training, the time around 20-40days, it depends different kinds machines. Salary is 100USD/Day.

What is your advantage?

We are the original factory. We are more strict about our brand and machine quality.

We can provide the low cost of spare parts to our customer, and faster after-sales response.
