10L-20L Semi-auto Bottle Blow Molding Machine 10L-20L Semi-auto Bottle Blow Molding Machine

LINKS semi-automatic stretch bottle blowing machine with microcomputer controlling system. PET bottle blowing machine controls various technical parameter needed more accurately and more steadily. Only one person without special training operates PET bottle machine more easily and more safely.

Share this:
  • Model: LK-90
  • Brand: LINKS
  • Code: 8477401000
  • Product Description
10L-20L Semi-auto Bottle Blow Molding Machine

1). Stable performance with advanced PLC.

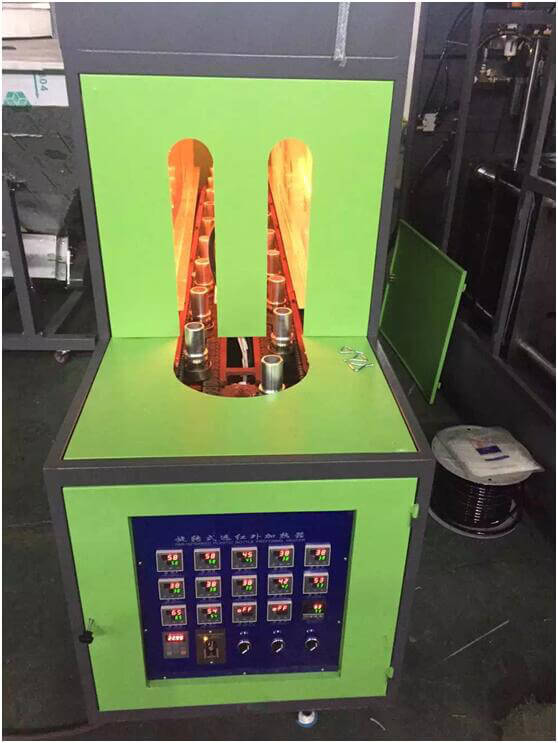

2). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
3). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
4). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
5). Introduce the FESTO air cylinder to avoid contamination and noise.
6). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.

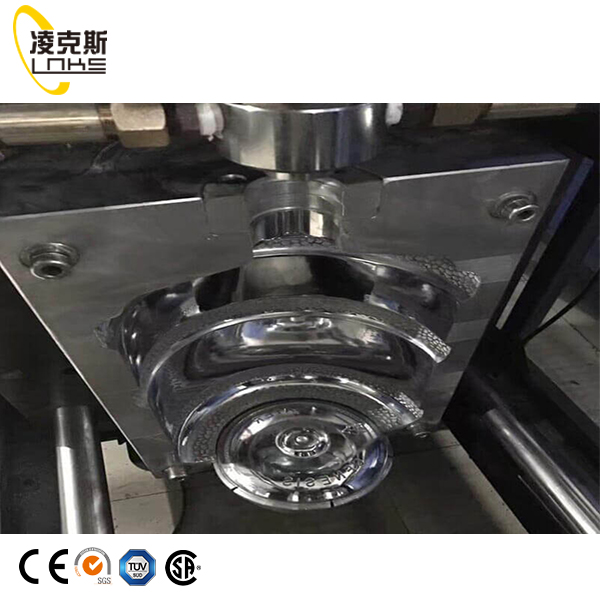

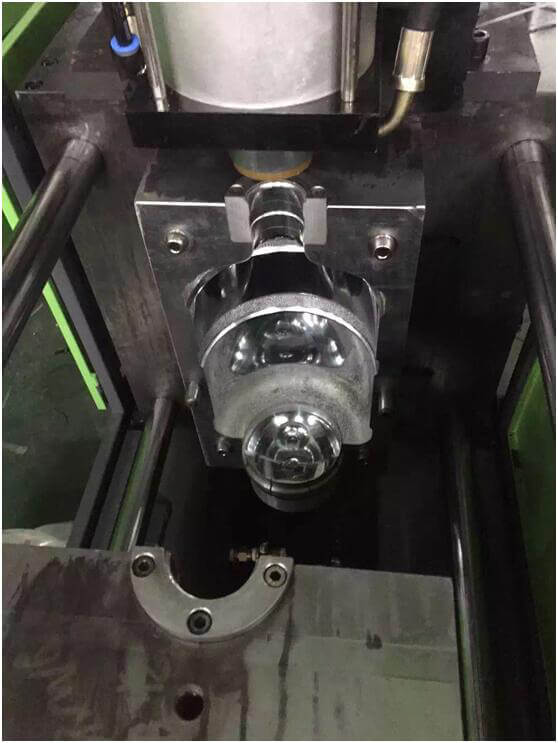

7). Strong clamping force with high pressure and double crank links to lock the mould.
8). Two ways of operating: automatic and manual.
9). Safe\reliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.
10). Low cost\high efficiency\easy operation and maintenance etc, profited from the fully automatic technological process.
11). Ideal cooling system make the finished bottles without any flaws.
12). Easy for you to install\test and start up.
13). Low rejection rate: less than 0.2 percent.

Model LK-90
Container Product material PET

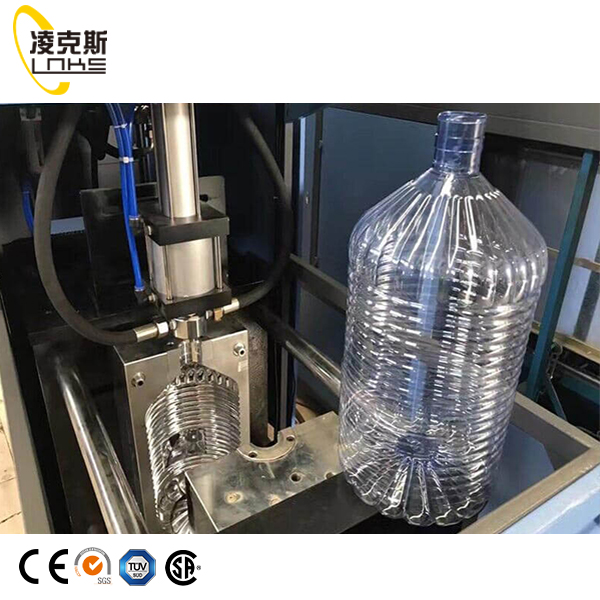

Volume 10L-25L3-5Gallon
Theoretical output 90PCS/H
Preform length 15mm-460mm
Preform inner diameter φ5mm-200mm
Moulding Max.mould plate Dimenstion(L x W) 420x500mm
Max.mould thickness 400mm
Clamping force 330KN
Mould opening stroke 380mm

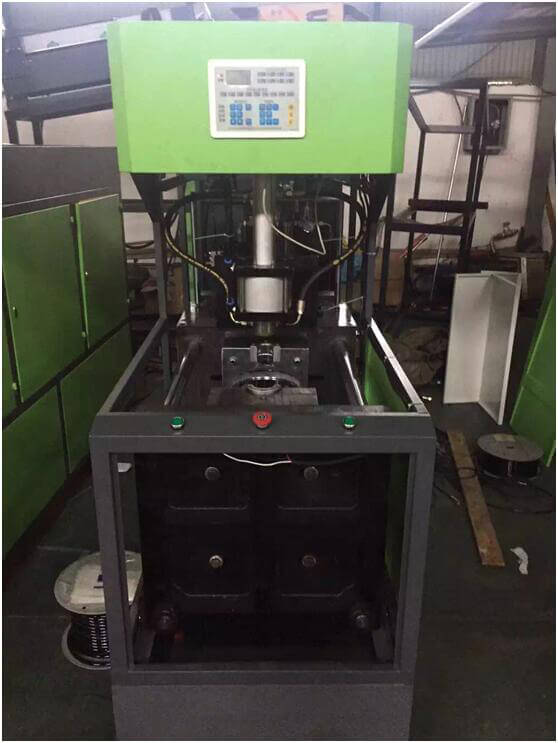

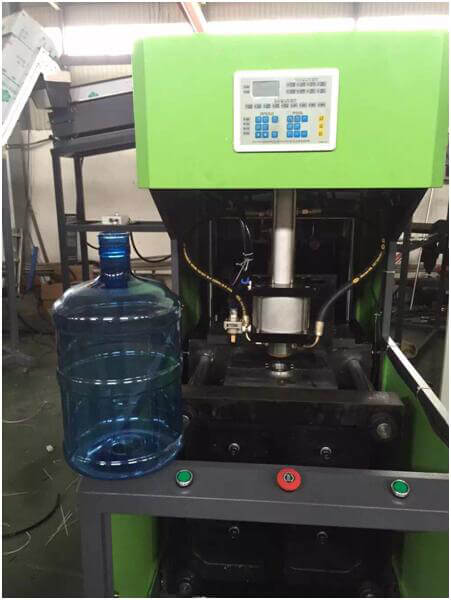

Machine size and weight Main machine (L x W x H) 218*77*196cm
Main machine weight 1000Kg
Heater (L x W x H) 237*68*165cm
Heater weight 380Kg
Power 40kw

No              Name Brand
1 Assembly cylinder Airtac
2 Stretching cylinder Airtac
3 Sealing cylinder Airtac
4 Computer controller XINGJIE
5 Touch screen XINGJIE
7 lead rail ABBA
8 Oil-water separator Airtac
9 High pressure air tank DAFENG
10 Low pressure air tank LK
11 Blowing valve LK

1) Can your factory provide the whole plant from A to Z?
A: Yes, we can provide the complete plant, from bottling making plant, water purification plant, to filling packing plant.
2) How can I know the machinery quality before I order?
A: Frist, we will invite you visiting our factory to check the machines quality, and show the machines running for you in our factory.
3)What certificates you can provide?
A: Our factory provide the CE, SGS, ISO, and accroding to some countries, we also can provide the Pvoc, Coc, Soncap...ect
4)Can your factory make the bottle drawing, workshop layout, and labels for us?
A: We can help customers design their own bottle shape, workshop layout and label drawings, these jobs are free charge.
(Workshop need customer to provide the size of factory)
5)Installation and Training Time
A: We have professional engineer for oversea installaion and training, they can speak English, and have much experience oversea work.
Customer needs to provide the engineer visa, air tickets, sleep room and meals. Each day salary is 80usd, around 20-40days.
6) Warranty time:
We provide the 18 months as our machinery parts warranty time, and electric parts warranty time is 12 month.
