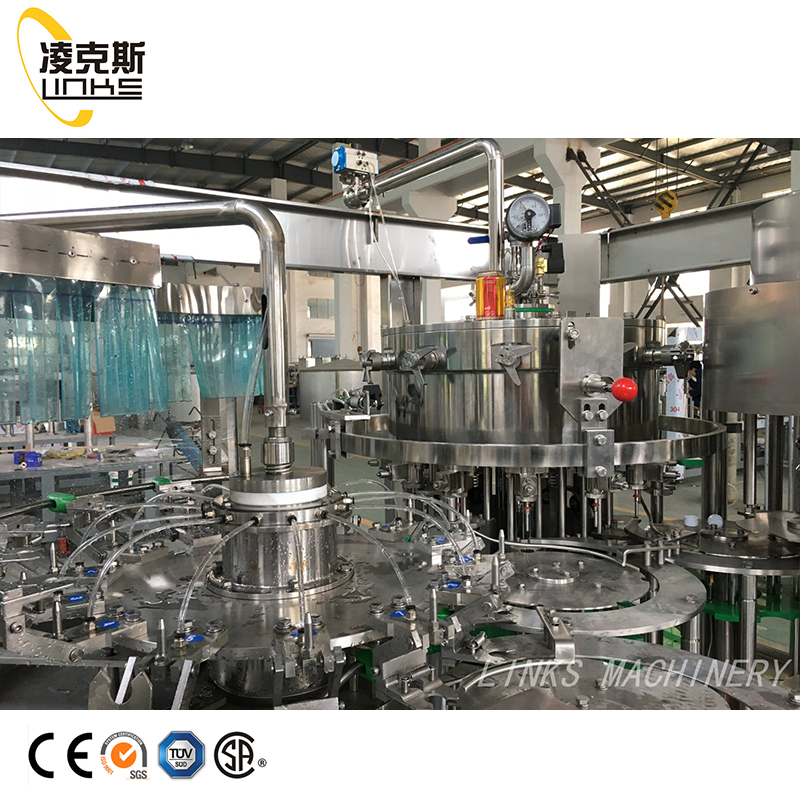

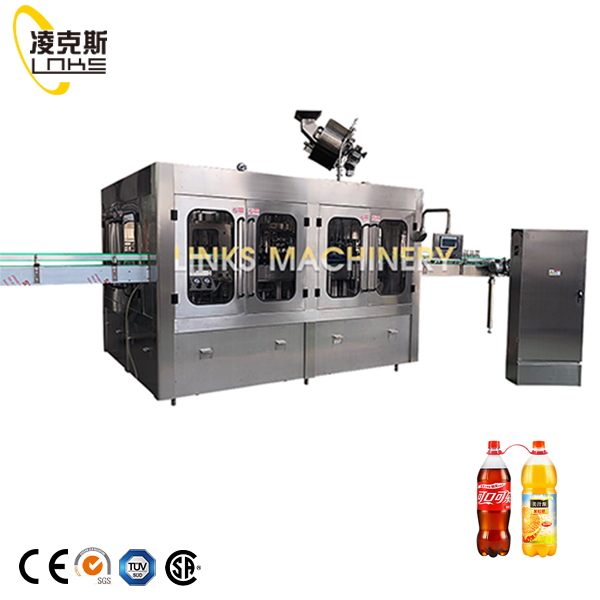

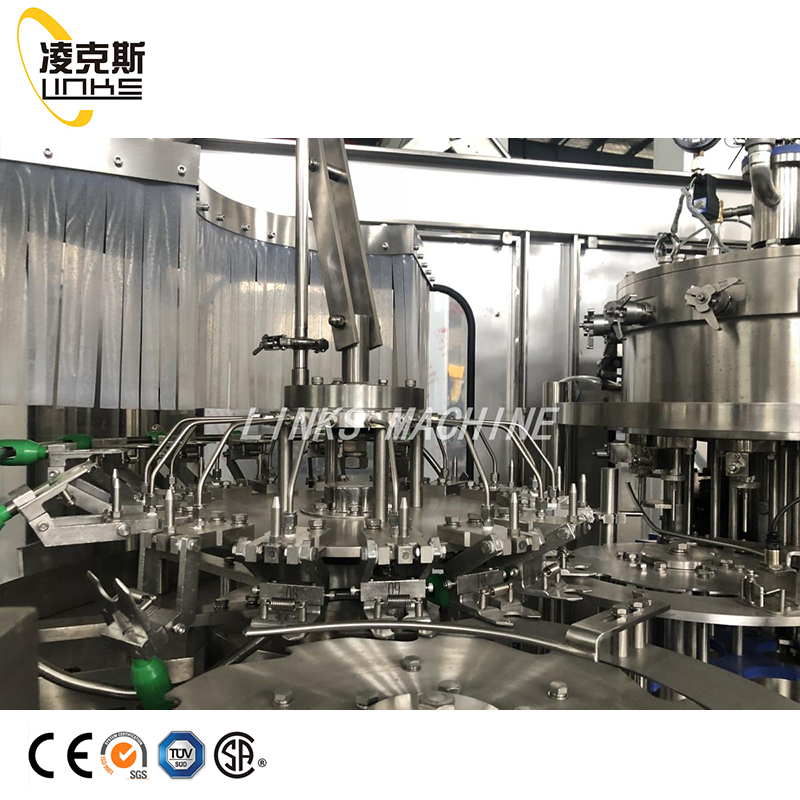

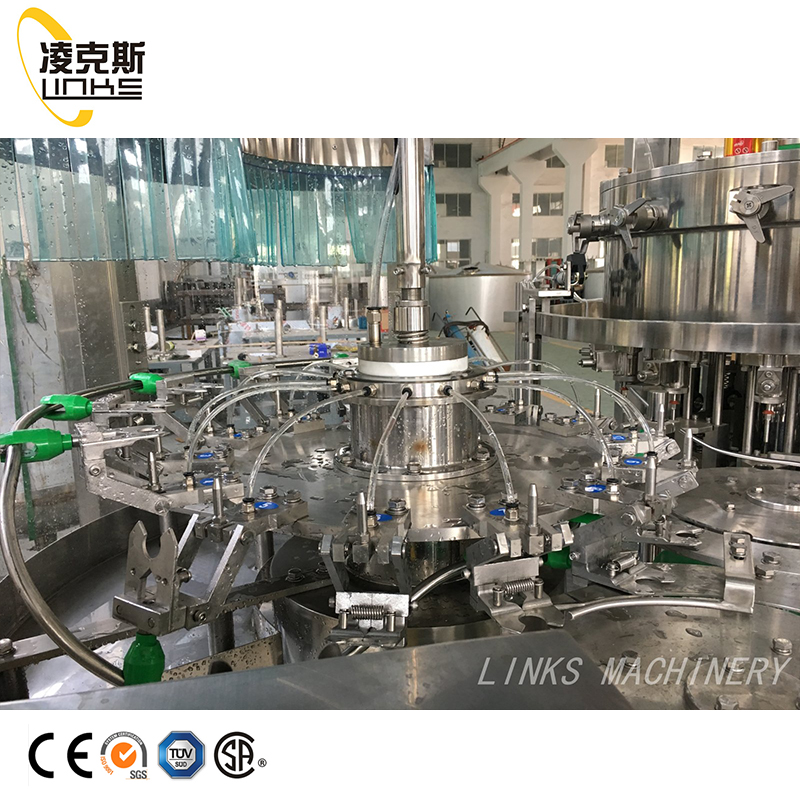

DXGF14-12-5 three-in-one machine for PET bottle integrates the function of rinsing, filling and capping together. Based on advanced technology overseas, and designed according to carbonated drinks filling processing demands.
Summary:
DXGF14-12-5 three-in-one machine for PET bottle integrates the function of rinsing, filling and capping together. Based on advanced technology overseas, and designed according to carbonated drinks filling processing demands.
Main features:
1. This machine has a compact structure, completed control system, easy to operate and highly automated.
2. By changing the star-wheel, screw bottle inlet and arc guide plate can realize to change the bottle shape.
3. The parts that direct contact with product are made of food grade stainless steel and no technology corner pockets and easy to clean.

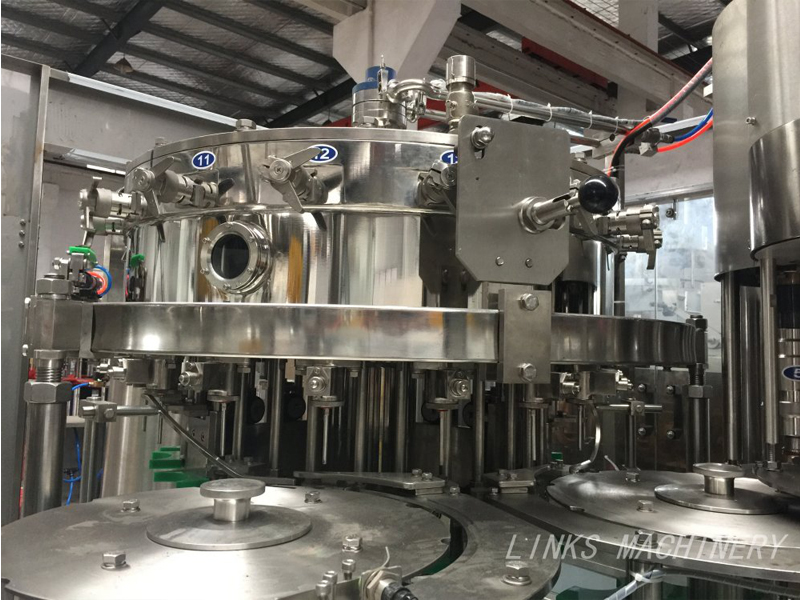

4. By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.

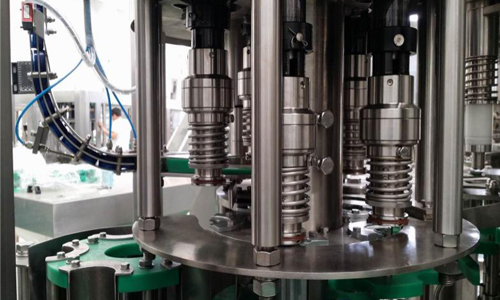

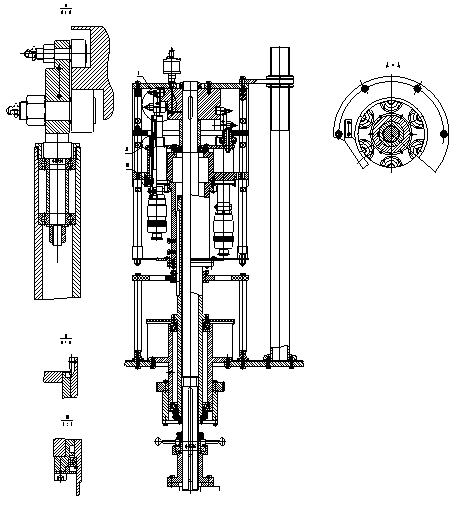

5. The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
6. The machine adopts high effective cap sorting system and completely self control and protective device.
7. The machine is equipped with perfect overload protective device that can keep the equipment and operator safely.
8. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
9. The electric components and pneumatic components are all introduced from world famous brand products.
10. The human-machine interface operation of the whole machine is realized by advanced pro-face.
DXGF | 14-12-5 |
Number of washing positions | 14 |
Number of filling positions | 12 |
Number of capping positions | 5 |
Capacity at 500ml bottles / hour | 2000bph |
Suitable bottle height (mm) | 160-340 |
Suitable bottle diameter (mm) | ¢50-¢90 |
Power of main motor (KW) | 2.0 |
Water pressure (Mpa) | 0.25-0.3Mpa |
Shape dimension | 2360MM*1830MM*2250MM |
Weight | 2000kg |
Filling temperature | 1-4degree |
Suitable bottle | PET bottle with screw cap |
Main components:
Serial No. | Name of Parts | Producing Area |
1 | Programmed controller | MITSHUBISH |
2 | On-off device | Taiwan |
3 | Low-pressure breaker | Siemens |
4 | Fuse | Japan |
5 | AC electromagnetic contractor | Siemens/OMRON |
6 | AC electromagnetic contractor | Siemens/OMRON |
7 | Heat-break device | Siemens/OMRON |
8 | Multi-continuous electrical device | Siemens/OMRON |
9 | Middle-continuous electrical device | Japan |
10 | Inducing on-off | AUTONICS |
11 | Speed adjusting | USA |

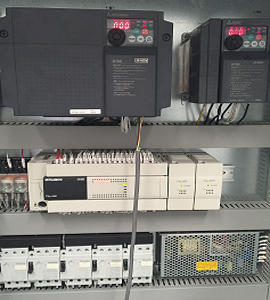

All electrical components adopt international famous brand, reduce the failure rate control element. The equipment control cabinet is made of stainless steel waterproof electrical cabinets, configure a set of random operation screen at the same time, meet the demand of customer on-site monitoring and remote control.
