The equipment is self-service positioning, PLC control, fully automatic operation, the main rotation is driven by servo motor, and the rotation of each stage is controlled by chain and sprocket. Its high degree of automation, reliable control, simple adjustment, intelligent operation, etc., can be widely used in beverage, beer, chemical, food, pharmaceutical and other industries, can be used for secondary packaging of various types of bottles, and with automatic filling production line use.
Automatic Carton Folding-Packing-Sealing Machine

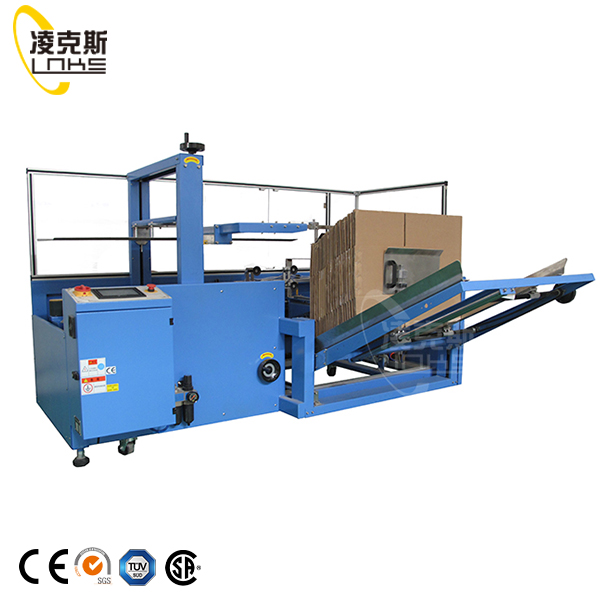

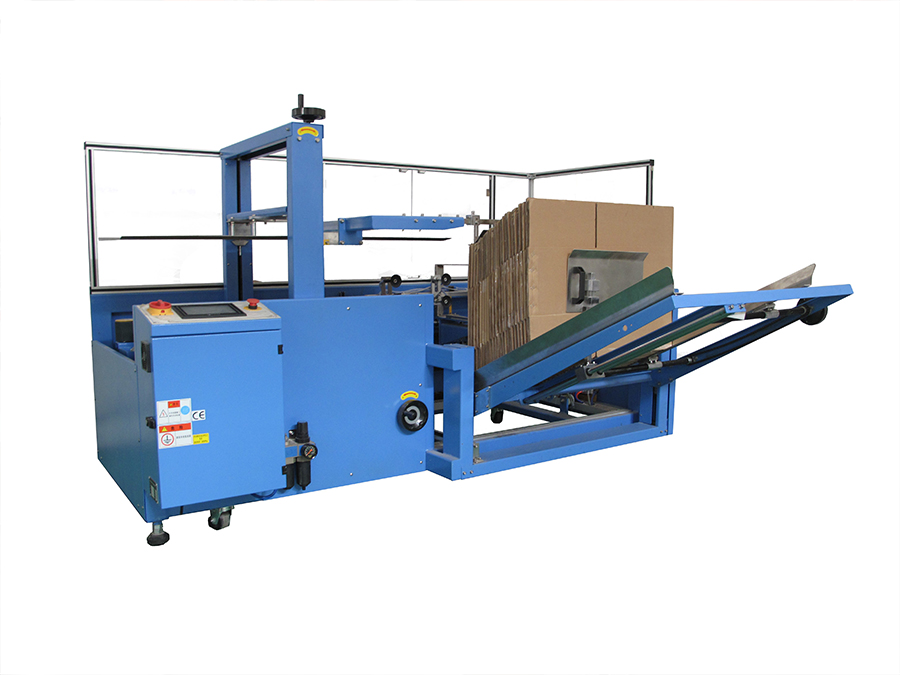

Automatic Carton open and bottom sealing machine
Automatically perform unpacking, forming, under the bottom of the flex. And now to complete the part of the tape paste, will automatically open the folded cardboard box board, according to certain procedures or at the bottom of the box, then tape sealing after delivery to special equipment for packing machine. Automatic mass cartons out of the machine is out of the box automatically, automatic folding under cover, automatic sealing bottom tape production line equipment, the machine adopts P.L.C + screen control, greatly facilitate the operation, management, reduce production personnel and labor intensity, is essential for automated scale production equipment. Easy to operate, reduce the packaging cost.
Folding grab type: automatic correcting straight Angle, the box open with a right away
Compact design, simple installation
For box device: carton size, accurately into the box
Adhesive tape at the bottom: clean, accurate, light touch
Power | 240W |
Box size suitable | L200-450 W150-400 H130-350mm |
Speed | 8-12box/min |
Table height | 600mm |
Seal width | 48/60mm |
Air | 6-7kg |
Machine size | 2000*1900*1450mm |

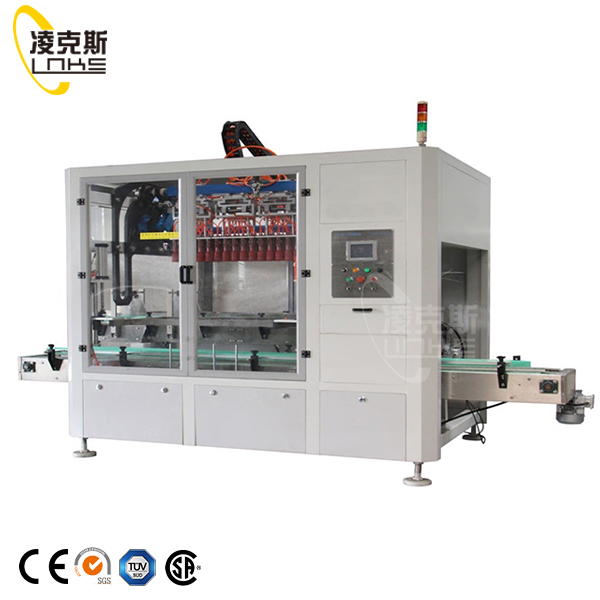

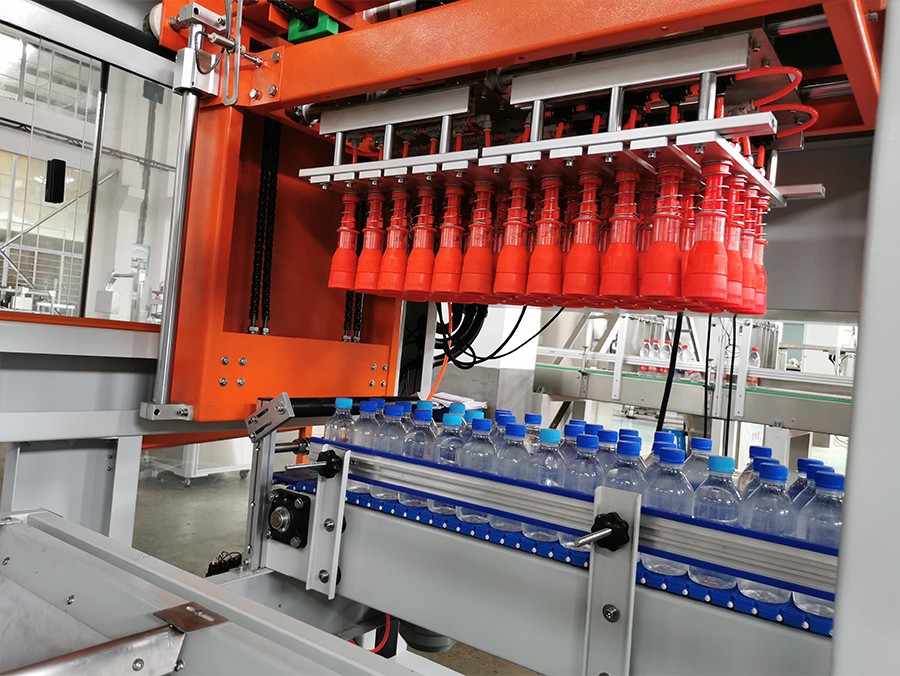

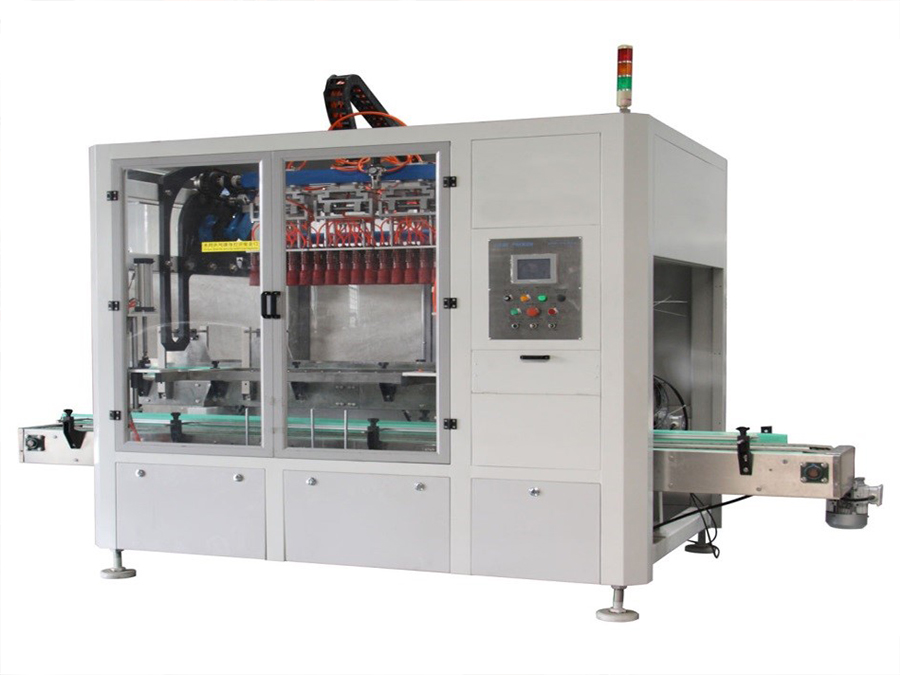

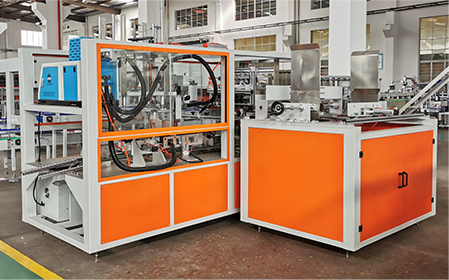

Automatic Carton Packing Machine
It combines the features of various foreign packer, This is the latest successful development of automatic packing machine. According to the packing requirements, the machine can automatically aligner products. New Design, Structure Compact, It is suitable for PET bottles, plastic bottles, glass bottles, cans and three two cans automatically put into paper (plastic) box. The product key components are made of high quality imported parts, the machine has Highly cost-effective. It applies to beer, beverage, food, chemical, pharmaceutical and other industries packing process., Particularly suitable for assembly line use, easy to move; a computer program control, simple operation, stable operation.
Technical Parameters
Model | ZXJ |
Power | 220V/380V 50/60HZ 3KW |
Applicable carton | L250-500*W200-400*H100-450mm |
Packing speed | 10-20 Box/min； |
Using gas source | 6-7kg |
Machine Size | 2000*1500*2050mm |

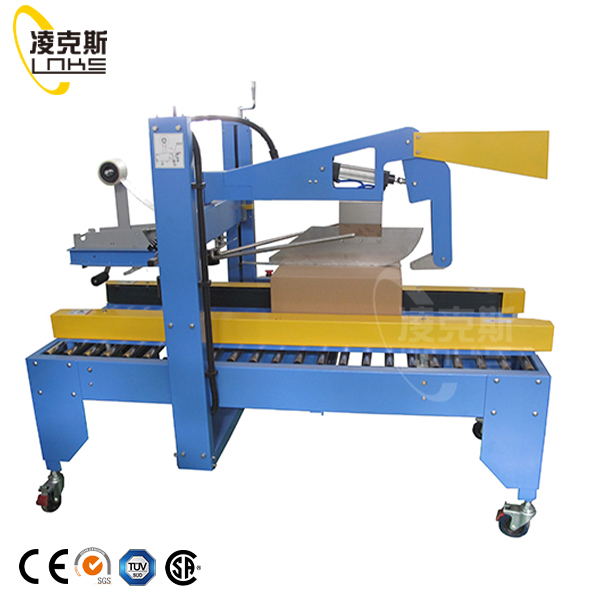

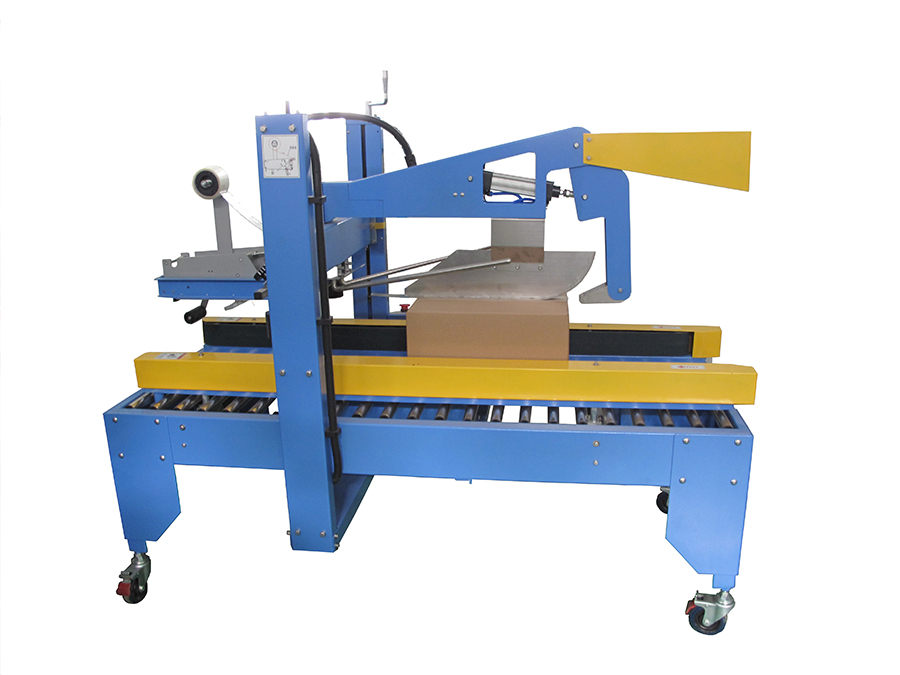

Auto Box Sealing Machine
Carton sealing machine is mainly suitable for carton, carton packing of both stand-alone operations, can also be used with line, widely used in home appliances, textile, food, department stores, medicine, chemical industry etc. Packaging machine USES namely stick adhesive sealing carton sealing, rapid and easy to adjust, using words printed adhesive tape, more can improve product image.\
Power | 220V 50HZ 0.6KW |
Box size suitable | L200-600*W150-500*H130-450mm |
Speed | 15-20box/min |
Seal width | 48mm/ 60mm |
Air | 6-7kg |
Machine size | 1770* 900* 1500mm |
OTHER MACHINERY FROM LINKS MACHINERY
| |
| |
|
18 months for machinery parts; 12 months for electric parts.
We provide the 1 year easy broken spare parts for customer together with the machine delivery.
During the warranty time, we provide the free-charge spare parts.
Normally, our delivery time is 45-60days, it depends the types of machines.
We send our engineers to customer for installation and training, the time around 20-40days, it depends different kinds machines. Salary is 100USD/Day.
We are the original factory. We are more strict about our brand and machine quality.
We can provide the low cost of spare parts to our customer, and faster after-sales response.
