Automatic Double Heads Bottle Sleeve Label Shrink Machine-PVC/PET Automatic Double Heads Bottle Sleeve Label Shrink Machine-PVC/PET

Double Sleeve Shrink Labeling Machine: In order to meet the needs of markets at home and abroad,our company has researched and developed double head mechanism to meet the requirements of casting label for casting label for bottle mouth and bottle body

Quantity:
Share this:
  • Model: SLM-150D/250D
  • Brand: LINKS MACHINERY
  • Code: 8422309090
  • Product Description

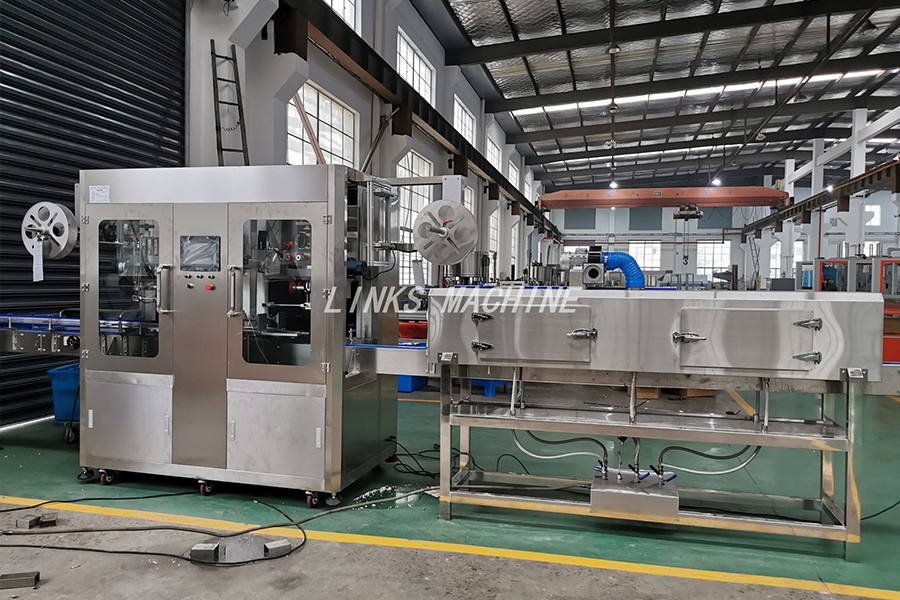

Automatic PVC/PET Sleeve Shrink Labeling Machine For Cap and Body

In order to meet the needs of markets at abroad, our company has researched and develop double heads mechanism to meet the requirements of cap and body two position labeling, save the cost and save the workers' job.

双头套标机1

 Technical Parameter / Electric Brands

No.

Item

Parameter data


Model

LK-T-150-ST

LK-T-200-ST

1

Voltage

380V/220V

380V/220V

2

Frequency

60Hz/50HZ

60Hz/50HZ

3

Power

24KW

26KW

4

Available   bottle dimension

Diameter:28-125mm,   height=80-380MM

5

Label   specification

Diameter:30-125mm   Length:30-250mmLabel thicknes:0.035mm

6

Suitable   bottle(mouth) diameter:

Φ50Φ90mm

7

Capacity

9000 bottles   per hour

(500ml   bottle)

18000   bottles per hour

(500ml   bottle)

8

Heat   Tunnel:

Steam type (electrical shrinking tunnel is   optional)

9

Label material

PET/PVC

10

Total Weight

1050Kg

1200Kg

11

Overall   dimension

L=2850,W=1050,H=2050

L=2950,W=1100,H=2050

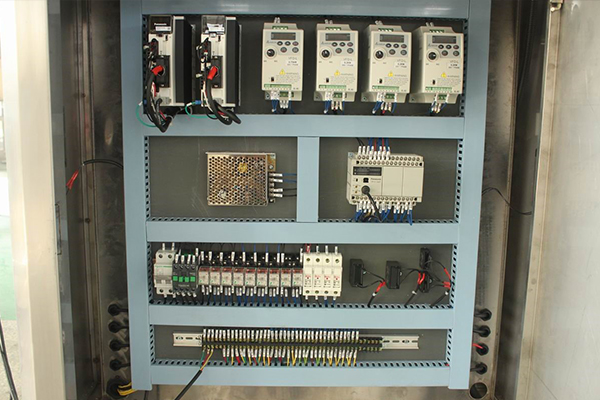

 Brand list

Name

Model

Qty

Brand

Country

PLC

FPX-C60T

1

Panasonic

Japan

HMI

MT6070I

1

Weiniew

Taiwan

High-speed   fiber-optic sening

FX-301

1

SUNX

Japan

Photoelectric   sensor

CX-421

1

SUNX

Japan

Photoelectric   sensor

CX-442

1

SUNX

Japan

Photoelectric   sensor

PM-L44

2

SUNX

Japan

Servo motor for label   delivery

MHMD042P1U(750W)

1

Panasonic

Japan

Servo   motor drive for label delivery

MBDDT2210003(750W)

1

Panasonic

Japan

Cutter   head servo motor

MHMD042P1U(400W)

1

Panasonic

Japan

Cutter   head servo motor drive

MBDDT2210003400W

1

Panasonic

Japan

Low   power a-c dynamo

5IK90GN-YF-5GN7.5K

1

TDG

Taiwan

Frequency   converter for bottle divider

BFV00022DK

1

Panasonic

Japan

Low   power a-c dynamo for bottle drlivery

5IK90GN-YFT-5GN15K

1

TDG

Taiwan

Frequency   converter for bottle carring

BFV00022DK

1

Panasonic

Japan

Frequency   converter for convery

BFV00072GK

1

Panasonic

Japan

Material-shelflow   -power exchange motor

RV50-15K-180

1

TDG

Taiwan

Frequency   of material-shelf

BFV00022DK

1

Panasonic

Japan

Exchange   servo motor of   machine'head up and down

51K90GU-CF-5GU30KB

1

TDG

Taiwan

Low   power a-c dynamo for bottom set of brysh

51K120A-CFT

1

TDG

Taiwan

Low   power a-c dynamo for bruch

4IK25GN-CF-4GN3K

2

TDG

Taiwan

Fan motor

YL8022

1

Jiacheng

Zhejiang

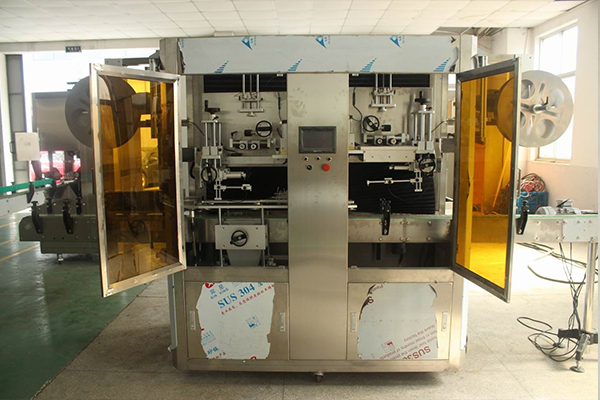

双头套标机7

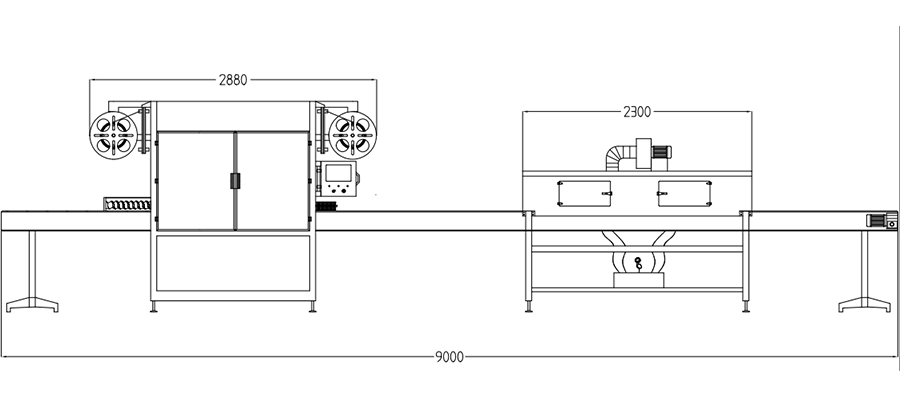

Layout as reference

双头套标机8

 OTHER MACHINERY FROM LINKS MACHINERY

双头套标机10

双头套标机12

双头套标机14



Packing&Delivery
FAQ

What’s the warranty of the machine?

18 months for machinery parts; 12 months for electric parts.

Do you provide the spare parts.

We provide the 1 year easy broken spare parts for customer together with the machine delivery.

During the warranty time, we provide the free-charge spare parts.

What is the delivery time?

Normally, our delivery time is 45-60days, it depends the types of machines.

How to install and cost?

We send our engineers to customer for installation and training, the time around 20-40days, it depends different kinds machines. Salary is 100USD/Day.

What is your advantage?

We are the original factory. We are more strict about our brand and machine quality.

We can provide the low cost of spare parts to our customer, and faster after-sales response.
