Hot Melt Adhesive Labeling Machine Hot Melt Adhesive Labeling Machine

1.Solo ONE independent main bearing system with concentric supports driving the up and down turnplates. No locking of supports & easy adjustment of turnplate heights avoid affecting the accuracy. 2.Separated heating units are easy for change-over. 3.The cage shaped roller frame avoids inaccuracy due to the fabrication error.

Quantity:
Share this:
  • Brand: LINKS MACHINERY
  • Code: 8422301090
  • Product Description


Automatic OPP Hot Melt Labeling Machine

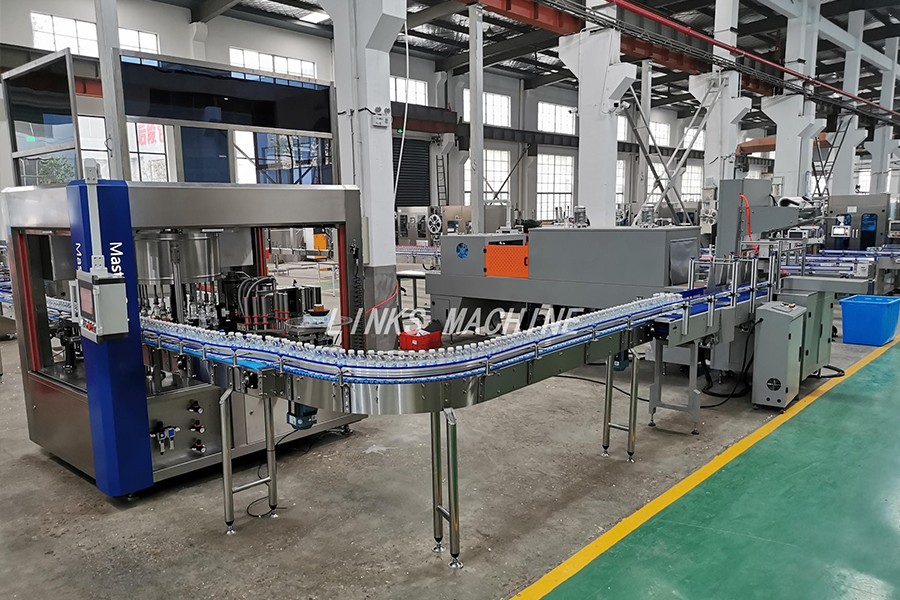

热熔胶1

 Technical Parameter / Electric Brands



No.

Item

Parameter data


Model

LK-R-9

LK-R-15

1

Voltage

380V/220V

380V/220V

2

Frequency

60Hz/50HZ

60Hz/50HZ

3

Power

8KW

9.5KW

4

Available   bottle dimension

Diameter:40-105mm,   height=80-350MM

Diameter:40-105mm,   height=80-350MM

5

Label   specification

Length:125-325mmHeight:20-150mm

Length:125-325mmHeight:20-150mm

6

Gluing way

Roll   painting(about 10mm, both label head and tail)

Roll   painting(about 10mm, both label head and tail)

7

Capacity

9000 bottles   per hour

(500ml   bottle)

15000   bottles per hour

(500ml   bottle)

8

Glue Consumption

l kg/   100,000 bolttles

(label   height:50mm)

l kg/   100,000 bolttles

(label   height:50mm)

9

Compressed   Air Pressure

MIN5.0bar  MAX8.0bar

MIN5.0bar  MAX8.0bar

10

Consumption of   Compressed Air

0.2M³/minute

0.2M³/minute

11

Total Weight

2500Kg

3000Kg

12

Overall   dimension

L=3150,W=1770,H=1800

L=3650,W=1970,H=1800



Brand List

No.

Name

Quantity

Brand

1

Touch screen

1

Schneider

2

Motion Controller

1

Schneider

3

Servo driver

1

Schneider

4

Servo  motor

1

Schneider

5

PLC

1

Schneider

6

Analog Output Electronic Modules

1

Schneider

7

Encoder

1

Sick

8

Inverter

2

Schneider

9

Inverter

1

Schneider

10

Inverter

1

Schneider

11

Bottle sensor

1

Panasonic

12

Label sensor

2

Panasonic

13

Circuit breaker

1

Schneider

14

Circuit breaker

5

Schneider

15

Circuit breaker

3

Schneider

16

Contactor

1

Schneider

17

Contactor

4

Schneider

18

power

1

Schneider

19

Push-button

1

Schneider

20

Push-button

1

Schneider

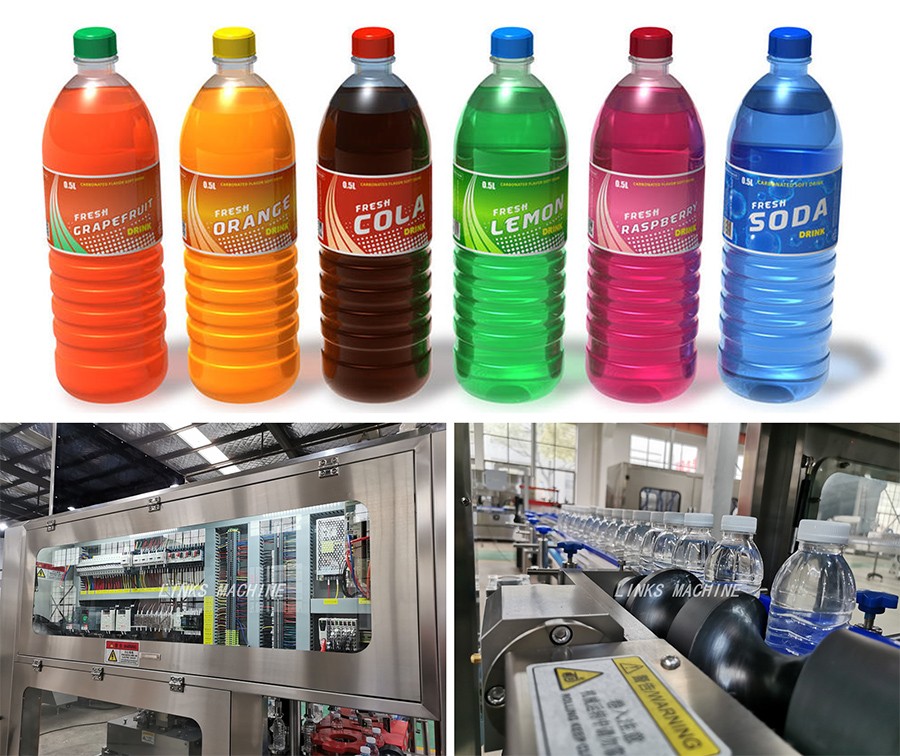

热熔胶2

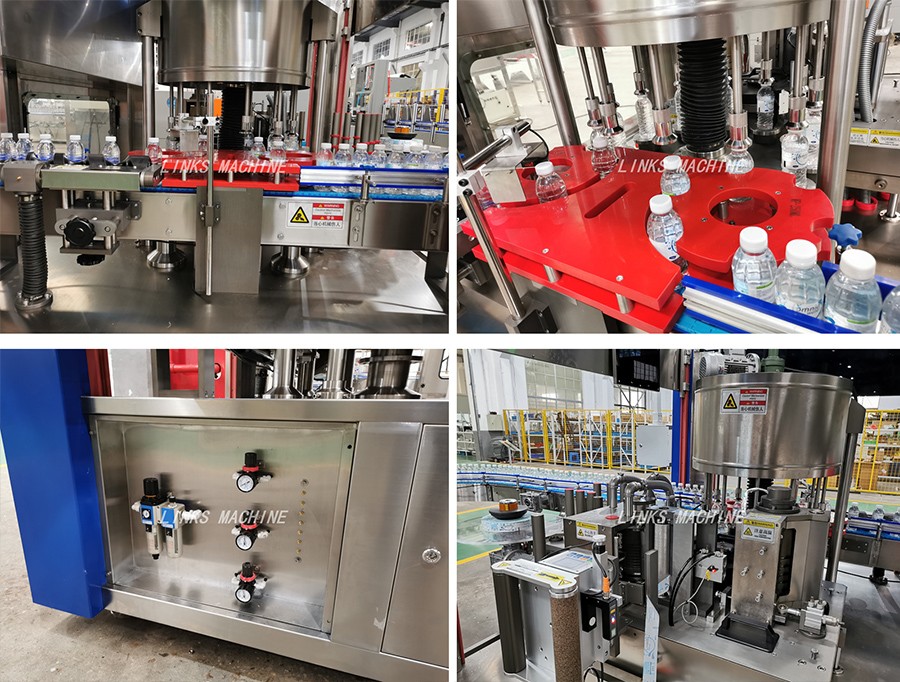

热熔胶3

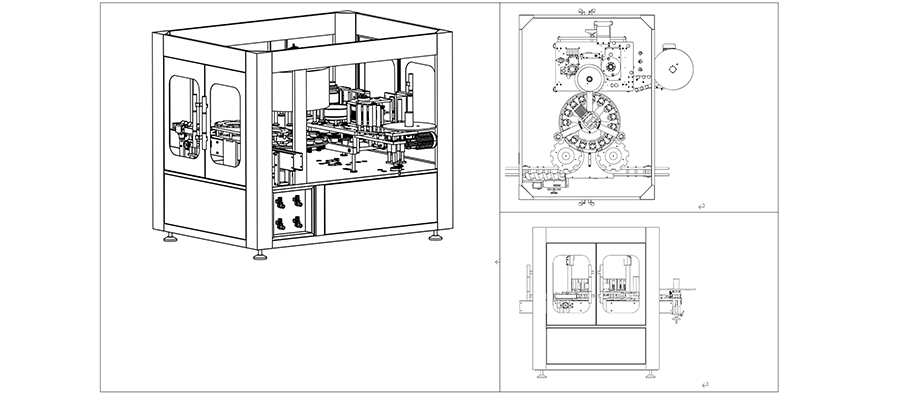

Layout as reference

热熔胶layout

 OTHER MACHINERY FROM LINKS MACHINERY

双头套标机10

双头套标机12

双头套标机14



Packing&Delivery
FAQ

What’s the warranty of the machine?

18 months for machinery parts; 12 months for electric parts.

Do you provide the spare parts.

We provide the 1 year easy broken spare parts for customer together with the machine delivery.

During the warranty time, we provide the free-charge spare parts.

What is the delivery time?

Normally, our delivery time is 45-60days, it depends the types of machines.

How to install and cost?

We send our engineers to customer for installation and training, the time around 20-40days, it depends different kinds machines. Salary is 100USD/Day.

What is your advantage?

We are the original factory. We are more strict about our brand and machine quality.

We can provide the low cost of spare parts to our customer, and faster after-sales response.
