Bottle Labeling Machine Types: A Buyer's Guide
Choosing among the main bottle labeling machine types starts with the package and the operating plan. A labeler can reach the required line rate and still be a poor fit if the bottle geometry, label stock, surface condition, changeover pattern, or inspection method has not been defined.
For beverage lines, the practical shortlist usually includes a shrink-sleeve applicator, an OPP hot melt roll-fed labeler, or a self-adhesive labeler. Each uses a different label supply and application process. The right choice is the system that can produce the agreed label quality with the actual bottles, labels, utilities, and production schedule.
Quick comparison of the three bottle labeling machine types
Technology
How the label is applied
Consider it when
Main integration checks
Shrink sleeve
Tubular film is cut, placed over the container, and shrunk in a controlled tunnel.
The package needs high graphic coverage, contour following, or a neck or tamper-evident band.
Film and bottle trials, artwork distortion, tunnel conditions, exhaust, product heat exposure, and final barcode readability.
OPP hot melt
Printed roll-fed web is cut to length, wrapped around the bottle, and secured with adhesive.
The portfolio has stable wrap-around formats, often on round or near-cylindrical bottles, with sustained production runs.
Web direction and tension, cut registration, bottle handling, adhesive application, cleaning, ventilation, and seam quality.
Self-adhesive
A die-cut label is released from its liner and pressed onto the container.
The package uses front, back, spot, or wrap labels and the SKU mix calls for discrete pre-cut labels.
Liner handling, label sensing, surface condition, orientation, placement tolerance, and roll changes.
There is no useful universal ranking for fastest, cheapest, or most flexible. Those outcomes change with the number of formats, label design, production run length, required controls, and the amount of time spent on cleaning and changeover.
Start with a package-and-label specification
Build a SKU matrix before comparing machine quotations. It should describe every format that the machine must run, including future formats that are already approved or funded. Grouping products by sales name is not enough when two bottles use different diameters, panel shapes, materials, or label positions.
· Bottle: material, drawings, minimum and maximum dimensions, profile, label panel, rigidity, base and neck stability, orientation features, and whether the bottle reaches the labeler empty or filled.
· Surface and product condition: bottle temperature, moisture or condensation, oil or product residue, static, and any required drying or surface treatment.
· Label: material, thickness, dimensions, print repeat, winding direction, core, maximum roll diameter, splice method, adhesive or shrink behavior, perforation, seam, and approved artwork.
· Quality target: position tolerance, acceptable skew, wrinkle or bubble limits, seam appearance, code location, barcode grade or verification method, and reject behavior.
· Production plan: target line rate by SKU, normal batch length, changeovers per shift, planned roll changes, staffing, cleaning window, and downstream packing method.
Send physical production-equivalent samples with the RFQ. Drawings define nominal dimensions; real bottles and labels reveal stiffness, friction, static, curl, print registration, and dimensional variation that can affect handling.
When a shrink-sleeve system fits the package
A shrink-sleeve line combines label application with a controlled shrinking stage. The applicator places a cut length of tubular film over the container. The tunnel then applies heat so the film follows the bottle profile. This method can cover more of the package than a discrete label and can also be specified for neck bands or tamper-evident features.
The tunnel is part of the labeling decision. The buyer must define the accepted sleeve material, shrink curve, container material, filled-product condition, permitted heat exposure, steam or electrical utility arrangement, exhaust, condensate control, and floor space. The artwork may need distortion compensation so graphics appear correct after shrinking.
Test the difficult zones first: shoulders, recessed panels, grips, caps, and the base transition. Record the tunnel settings used for each approved format and inspect the seam, perforation, graphic position, wrinkles, bottle distortion, and code readability after the sleeve has cooled.
Links Machinery publishes an automatic bottle sleeve label shrink machine within its broader range of bottle labeling machines. Buyers should match the quoted applicator and tunnel configuration to the sample set rather than relying on the product-family name alone.
Shrink-sleeve application equipment shown with its film feed and conveyor path. Source: Links Machinery
When OPP hot melt labeling fits the run pattern
An OPP hot melt labeler forms a wrap-around label from printed reel-fed web. The web is controlled, cut to length, wrapped around the bottle, and secured by an adhesive pattern defined by the machine and label specification. This arrangement is often considered for stable cylindrical formats and sustained runs where reel-fed supply matches the packaging plan.
The critical inputs are mechanical and thermal. Confirm roll core and outside diameter, winding direction, print repeat, cut mark, label length, label thickness, web tension, bottle diameter and roundness, container stability, adhesive specification, operating temperature, ventilation, guarding, and cleaning access. The quotation should state which consumables and glue system are included.
A low material price does not establish the total operating cost. Waste during setup, roll changes, adhesive use, cleaning time, format parts, and stoppage recovery also affect the result. Ask the supplier to demonstrate cut registration, overlap or seam appearance, glue control, and restart quality with the approved bottle and printed web.
The published OPP hot melt labeling machine provides a relevant product destination after a buyer has confirmed that a roll-fed wrap-around process suits the container and run plan.
Example of an OPP hot melt labeling line with product conveyors and label-handling equipment. Source: Links Machinery
When self-adhesive labeling fits the SKU mix
A self-adhesive labeler dispenses a die-cut label from a release liner and presses it onto the container. The format works for front, back, spot, and wrap-around applications, depending on the machine configuration and bottle handling. It is a practical option when the label design uses discrete pre-cut pieces or when the portfolio contains several label positions.
Container presentation controls placement accuracy. Shaped bottles may need orientation before labeling. Flexible bottles may require stabilization. Transparent labels or clear liners may require a sensor selected for that material. The label surface must also be compatible with the expected moisture, temperature, and handling conditions.
Liner handling belongs in the operating review. Compare roll capacity, splice procedure, liner rewinding, roll-change access, sensor setup, and waste removal. During trials, inspect label edge lift, bubbles, wrinkles, front-to-back alignment, skew, and repeatability after stops and restarts.
Links Machinery also lists an automatic self-adhesive sticker labeling machine. The final configuration still needs to identify the number of label stations, required container orientation, label sensing method, and accepted formats.

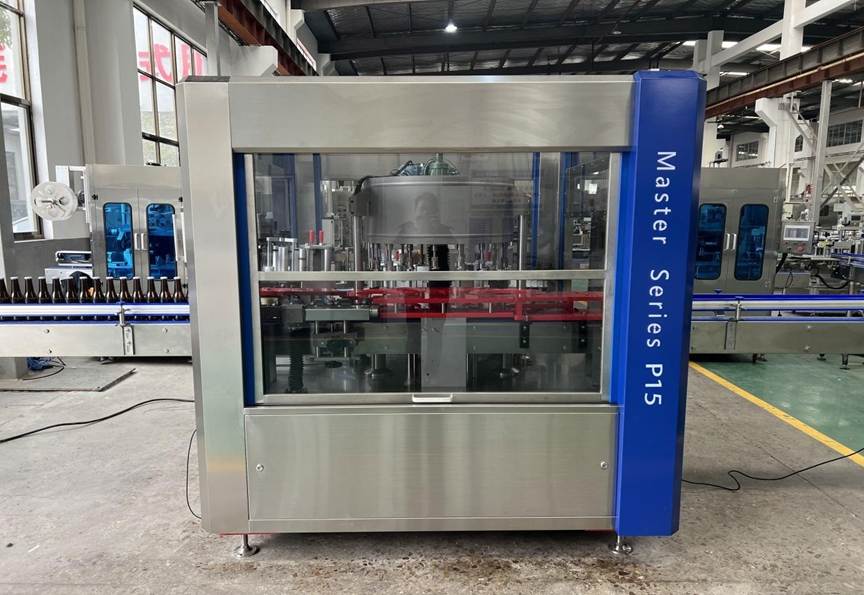

Example of a self-adhesive labeling platform. Label stations and bottle handling must be specified for the approved application. Source: Links Machinery
Verify barcode, date-code, and inspection performance
Treat the applied package as the inspection sample. A barcode that passes on a flat artwork proof can become difficult to scan after it is wrapped, shrunk, curved, wrinkled, or placed near a seam. GS1 barcode implementation guidance connects barcode selection, size, placement, and quality to the intended scanning environment and printing process.
Define the verification method and sample condition in the URS. GS1 also identifies quiet zones, contrast, bar height, position, damage, and wrinkling as practical quality checks. Cylindrical packaging adds curvature and orientation concerns. Verify codes after labeling at representative line conditions, then confirm the camera, scanner, reject device, and reject confirmation logic if those functions are in scope.
Check recycling requirements before freezing the label
Design-for-recycling requirements can change with the bottle resin, label or sleeve material, adhesive, coverage, color, separation process, and destination market. Use the target market's current rules and the intended recycling stream when approving the package. The RecyClass Design for Recycling Guidelines provide a structured reference for checking labels, sleeves, and adhesives in European plastic-packaging applications.
Finish the package decision before locking the machine specification. If the approved label material or coverage changes later, web handling, sensors, shrink conditions, adhesive application, or inspection may also need to change.
Map the labeler into the complete beverage line
The labeler must exchange bottles and signals cleanly with the rest of the line. A typical beverage layout places labeling after filling and capping, plus any required bottle drying or conditioning, and before secondary packaging. The exact sequence should follow the container, product, label, coding, and hygiene requirements.
· Product handling: conveyor height and speed, guide-rail contact, bottle spacing, accumulation, container orientation, and transfer stability.
· Control interface: line start and stop, starved and blocked logic, emergency stops, recipe control, fault signals, and data required by the plant.
· Auxiliaries: dryer or air knife, coder, vision inspection, reject station, rejected-product collection, and label or consumable monitoring.
· Environment and utilities: electrical supply, compressed air, steam or heating where applicable, ventilation, drainage or condensate handling, ambient conditions, access, and cleaning method.
Use the actual line context when discussing interfaces. Links Machinery publishes complete-line examples for water bottling, PET bottle juice filling, and carbonated drinks. These pages are useful starting points for interface discussions; the project layout still has to be confirmed against the buyer's package and process.
What to put in the RFQ
A complete RFQ makes quotations easier to compare and reduces late format changes. Include the following items in one controlled package:
· Bottle drawings, physical samples, dimensional tolerances, material, fill condition, and orientation features.
· Label drawings, artwork, material data, roll specification, winding direction, core and outside diameter, splice method, and physical samples.
· A SKU matrix with target output by format, normal run length, changeover frequency, future formats, and priority formats for testing.
· Placement, appearance, barcode, coding, inspection, and reject acceptance criteria.
· Upstream and downstream machine data, conveyor layout, accumulation philosophy, controls interface, available floor space, and required access.
· Site utilities and environmental conditions, including any steam, exhaust, drainage, heating, or compressed-air requirements.
· Required documentation, training scope, spare-parts list, factory acceptance test, site acceptance test, and responsibility matrix.
Build the FAT around the agreed formats
Define the factory acceptance test before the purchase order. The protocol should identify the bottles, labels, consumables, recipes, test conditions, measurements, sample size, and acceptance criteria. It should also state who supplies each material and how deviations will be recorded.
· Run the agreed priority formats with production-equivalent bottles and labels.
· Observe steady running, controlled stops and restarts, roll changes, material splices, empty or unstable containers where relevant, and the agreed changeover procedure.
· Measure label position, skew, wrinkles, bubbles, seam or overlap, sleeve shrink quality, glue condition, liner handling, code quality, and reject performance as applicable.
· Record the recipe, machine settings, utility conditions, inspection results, deviations, corrective actions, and the final approved sample for each tested format.
A single demonstration bottle is not enough evidence for a production decision. The test should cover the formats and events that create the highest operating risk, using the same acceptance language that will be applied at the buyer's site.
A practical selection sequence
1. Freeze the bottle, label concept, code position, and destination-market packaging requirements.
2. Use actual samples to rule out processes that cannot meet geometry, surface, heat, adhesive, or inspection requirements.
3. Compare the remaining options against the SKU plan, roll changes, cleaning, utilities, staffing, floor space, and line controls.
4. Write measurable output and label-quality criteria into the RFQ and FAT protocol.
5. Approve the final machine configuration only after the supplier has documented the tested formats and any remaining exclusions.
The choice among sleeve, OPP hot melt, and self-adhesive labeling becomes clearer once the project team defines the package and the evidence required for acceptance. To discuss a labeling project, send the bottle and label specification, SKU matrix, target output, line layout, and inspection requirements through the Links Machinery contact page.
FAQ
What are the main bottle labeling machine types for beverage lines?
The common shortlist is shrink sleeve, OPP hot melt roll-fed, and self-adhesive labeling. Shrink sleeves are placed over the bottle and shrunk in a tunnel. OPP hot melt labels are cut from reel-fed web, wrapped around the container, and secured with adhesive. Self-adhesive labels are dispensed from a release liner and pressed onto the bottle.
Which labeling machine is suitable for shaped bottles?
Bottle shape alone does not decide the machine. A shrink sleeve can follow complex contours when the film, artwork, and tunnel process are validated. A self-adhesive system can apply front, back, or spot labels to shaped bottles when the container is oriented and supported correctly. Test the real bottle and label to confirm placement and appearance.
Can one bottle labeling machine run different label materials?
Only within the materials and formats covered by the quoted configuration. Sleeve, OPP hot melt, and self-adhesive labels use different supply and application processes. Even within one technology, a new film, adhesive, liner, thickness, transparency, or roll format can require different sensors, settings, parts, or trials.
What samples should a buyer send before ordering a labeler?
Send production-equivalent bottles, closures, labels, artwork, roll specifications, and dimensional drawings. Also provide the SKU matrix, filled-product and bottle-surface conditions, required label position, barcode or code requirement, target line rate, and upstream and downstream interface data.
What should be checked during a labeling-machine FAT?
Run the agreed formats with production-equivalent materials. Check steady running, stops and restarts, roll changes, changeover steps, placement, skew, wrinkles or bubbles, seams or glue, shrink quality where applicable, code readability, inspection, reject behavior, utility conditions, and the recorded recipe for each format.
